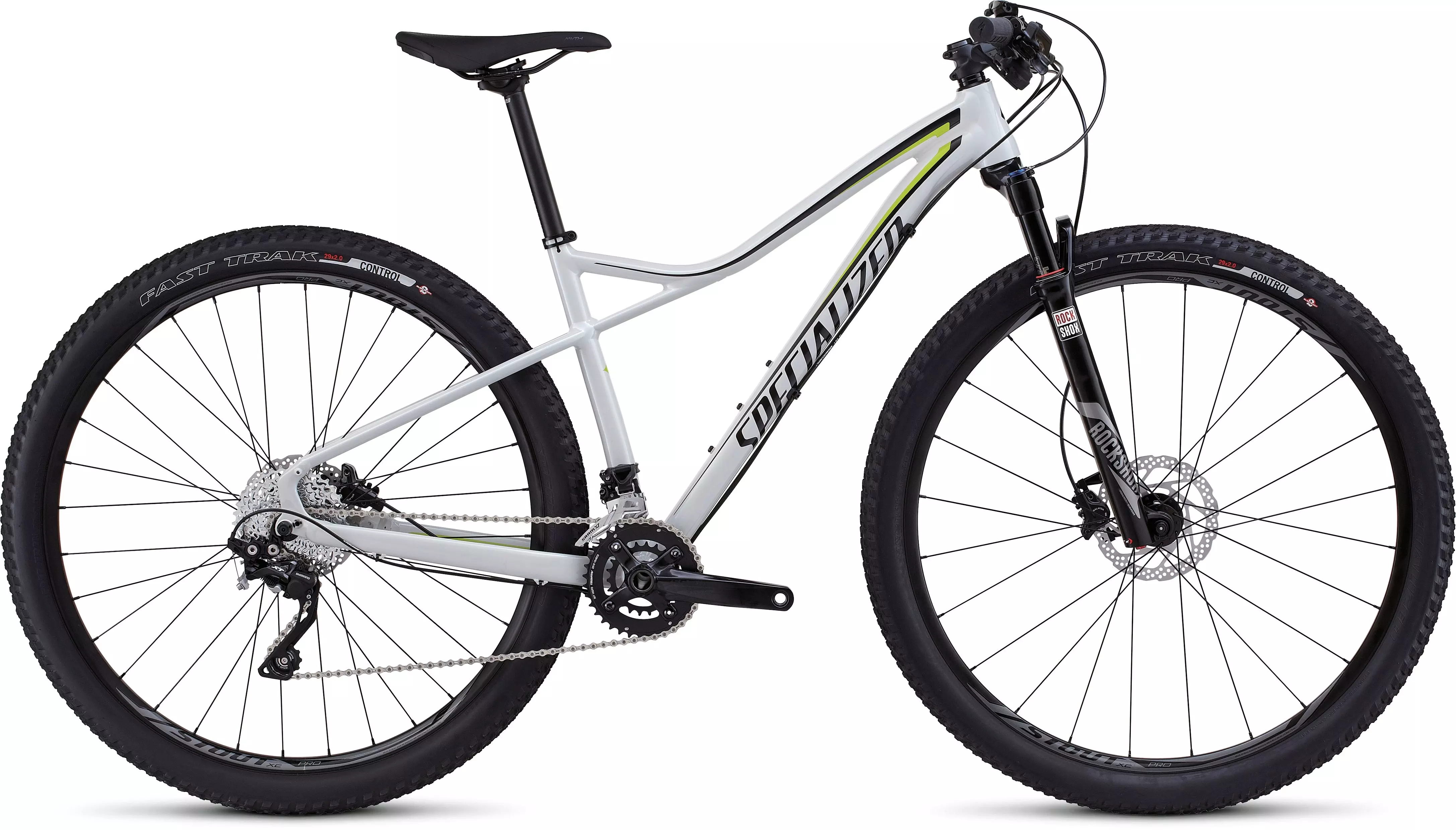

Fate Elite 29
$1,800.00
Part No.

Fate Elite 29

$1,800.00
Part No.  106887
load-spinner
Fate Elite 29
Overview
Technical Specifications
Geometry
Reviews
Who likes riding uphill? The Fate Elite does, and thanks to its durable and lightweight alloy frame, you will too. Built to climb and put the hurt on the field, this bike handles like a dream, tackling unpredictable terrain and gnarly trail features with gusto. With a trail-hungry spec, including the high-performance RockShox Reba RL 29 fork to smooth out the trail, you’ll be racking up PRs left and right while enjoying the performance and nimble handling of this efficient XC machine.
  • Brake with controlled confidence thanks to Shimano Deore, hydraulic disc brakes.
  • The Fate’s M4 Premium Aluminum frame is durable, lightweight, and features Women’s Competitive XC Geometry for efficient power transfer and confident handling at speed.
  • Enjoy high-performance XC suspension with the low-weight RockShox Reba RL 29 fork, boasting 80mm of travel, Solo Air spring, and compression and rebound adjust.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME Specialized M4 Aluminum, Women's Competitive XC 29 Geometry, smooth welds, integrated head tube, forged post-mount 160mm dropouts, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 24h
REAR HUB Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 28h
INNER TUBES Standard, Presta valve
SPOKES Stainless, 14g, black
FRONT TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
RIMS Specialized Stout XC SL, 29"" disc, alloy double-wall, sleeve joint, 26mm inner width, tubeless ready, 28/32h
REAR TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, 73mm
CHAIN KMC X10L, 10-speed, w/ reusable MissingLink
CRANKSET Custom SRAM S-1255, 2 pc., 10-speed XC double, 36/22T
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS Shimano Deore RapidFire Plus, SL type, 10-speed, I-spec
FRONT DERAILLEUR SRAM X7, 2x10, top pull
REAR DERAILLEUR Shimano XT Shadow Plus, 10-speed, SGS cage
COCKPIT
SADDLE Body Geometry Women's Myth Sport, steel rails, 155mm
SEATPOST Alloy, 2-bolt, 12.5mm offset, 27.2mm, anti-corrosion hardware
GRIPS Specialized Sip Grip, lock-on, half-waffle, regular thickness
HANDLEBARS Specialized Stout XC, flat bar, double-butted 6061 alloy, 9-degree backsweep, 4-degree upsweep, 31.8mm
STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Shimano Deore, hydraulic, reach adjust
FRONT BRAKE Shimano Deore, hydraulic disc, dual piston, resin pads
REAR BRAKE Shimano Deore, hydraulic disc, dual piston, resin pads
ACCESSORIES
PEDALS Alloy, 1 pc. body, 9/16"", w/ reflectors
SUSPENSION
FORK RockShox Reba RL 29, Solo Air spring, 80mm travel, TurnKey damping, OneLoc remote lockout, external rebound adjust, tapered alloy steerer, 32mm alloy stanchions, mag post disc mount

Geometry

Geometry Chart

Fate - Geometry

S M L
  S M L
Stem Length 60mm 70mm 70mm
Crank Length 165mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 680mm 680mm 680mm
Reach 377mm 406mm 422mm
Stack 595mm 607mm 621mm
Wheelbase 1052mm 1079mm 1100mm
Bike Stand-Over Height 691.9mm 724.3mm 755.9mm
Head-Tube Length 90mm 100mm 115mm
Front-Center 617mm 645mm 666mm
Fork Rake/Offset 46mm 46mm 46mm
Head-Tube Angle 70.5° 71° 71°
Trail 84mm 81mm 81mm
B-B Height 312mm 312mm 312mm
Chain-Stay Length 442mm 442mm 442mm
Fork Length (full) 489mm 489mm 489mm
Seat-Tube Angle 73.5° 73.5° 73.5°
B-B Drop 64mm 64mm 64mm
Seat-Tube Length 381mm 435mm 487mm
Top-Tube Length (horizontal) 553mm 586mm 606mm
