Fatboy SE

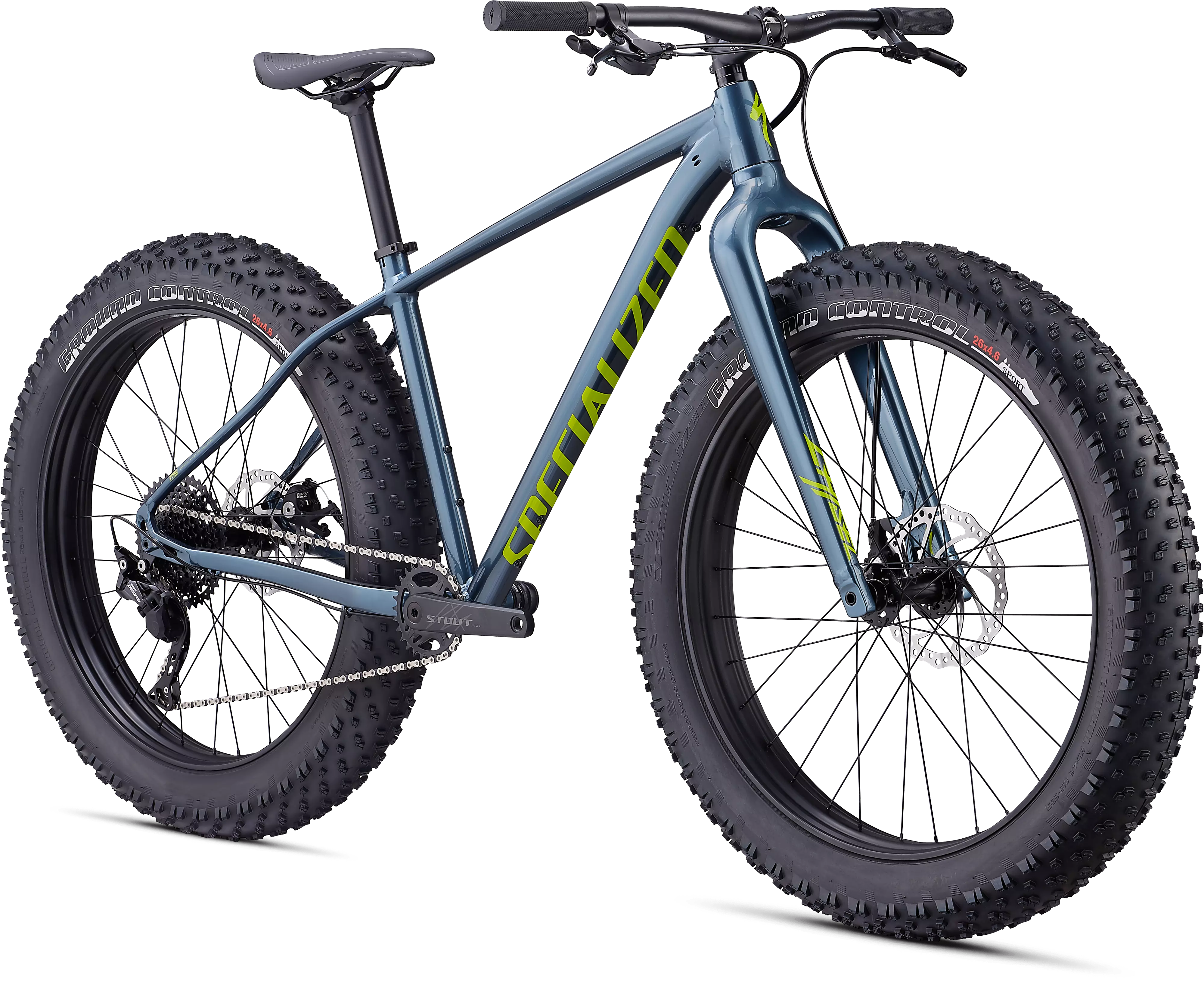

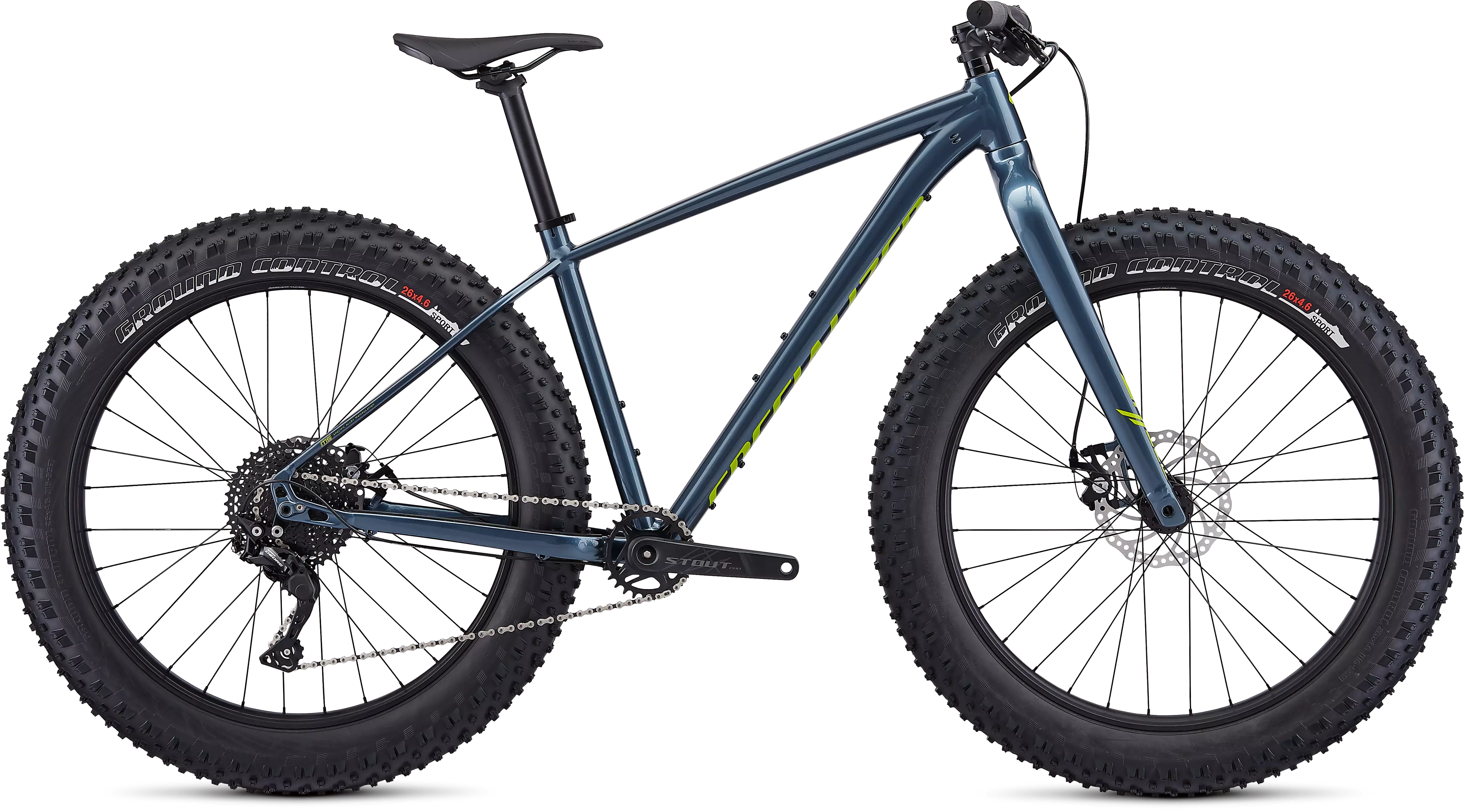

2020 Fatboy SE
It’s simple: fat tires—really fat tires—equal more fun. Especially if you define fun as insane levels of traction and rides that take you deep into places you never dreamed bikes could go. We built the Fatboy SE with durable, no-nonsense components that perform season after season.
A VERY FAT FLAVOR OF ADVENTURE
It boils down to a single word: adventure. The Fatboy’s massive tires (26x4.6”) float over rocks, roots, sand, snow, ice…. Let’s put it this way, if it’s part of mother earth, those big tires will roll right over it with a mix of comfort and traction that’s unrivaled. Get out there.
• Premium, M5 alloy frame is light on the scales, yet holds up to any adventure.
• Alloy fork with air-formed legs pairs perfectly with fat tires to erase trail chatter.
• Shimano single-ring 10-speed drivetrain is simple, accurate and reliable.
Technical Specifications
FRAMESET
FRAME
Specialized M5 Aluminum, fully butted w/ Smooth Welds, tapered head tube and seat tube, forged post-mount 160mm disc dropouts, internal routing, forged bottom bracket shell, 197x12mm rear thru-axle
SEAT BINDER
Alloy, bolt-type, 34.9mm
SUSPENSION
FORK
Specialized Alloy, 47mm offset, tapered steerer, 150mm axle
COCKPIT
STEM
Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SADDLE
Specialized Bridge, size specific, 143/155
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
BRAKES
REAR BRAKE
Tektro Aries, mechanical disc, 180/160mm
FRONT BRAKE
Tektro Aries, mechanical disc, 203/180mm
DRIVETRAIN
REAR DERAILLEUR
Shimano Deore, Shadow Plus, GS cage, 10-speed
SHIFT LEVERS
Shimano Deore, 10-speed
CASSETTE
SunRace, 11-42t, 10-speed
CHAIN
KMC X10, 10-speed w/ reusable Missing Link™
CRANKSET
Stout Pro, direct-mount
CHAINRINGS
28T
BOTTOM BRACKET
BSA, threaded
WHEELS
RIMS
Stout XC 80, 26", alloy, 76mm internal width, disc-specific, tubeless ready
FRONT HUB
Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x150mm, 32h
REAR HUB
Stout Pro 197, sealed cartridge bearings, 6-bolt disc, 12x197mm, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Fat, 60 TPI, wire bead, 26x4.6"
REAR TIRE
Ground Control Fat, 60 TPI, wire bead, 26x4.6"
INNER TUBES
Presta, 40mm valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170MM | 175MM | 175MM | 175MM |
| Handlebar Width | 750MM | 750MM | 750MM | 750MM |
| Stem Length | 60MM | 60MM | 70MM | 70MM |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350MM | 350MM | 400MM | 400MM |
| Bike Standover Height, Actual | 765mm | 786mm | 813mm | 847mm |
| Stack | 602mm | 602mm | 617mm | 632mm |
| Reach | 395mm | 420mm | 437mm | 458mm |
| Head Tube Length | 94mm | 94mm | 110mm | 125mm |
| Head Tube Angle | 71° | 71° | 71° | 71° |
| BB Height | 316mm | 316mm | 316mm | 316mm |
| BB Drop | 60mm | 60mm | 60mm | 60mm |
| Trail | 83mm | 83mm | 83mm | 83mm |
| Fork Length, Full | 496mm | 496mm | 496mm | 496mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm |
| Front Center | 640mm | 665mm | 687mm | 713mm |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Wheelbase | 1088mm | 1113mm | 1135mm | 1161mm |
| Top Tube Length, Horizontal | 579mm | 604mm | 626mm | 651mm |
| Seat Tube Length | 394mm | 434mm | 470mm | 520mm |
| Seat Tube Angle | 73mm | 73mm | 73mm | 73mm |
