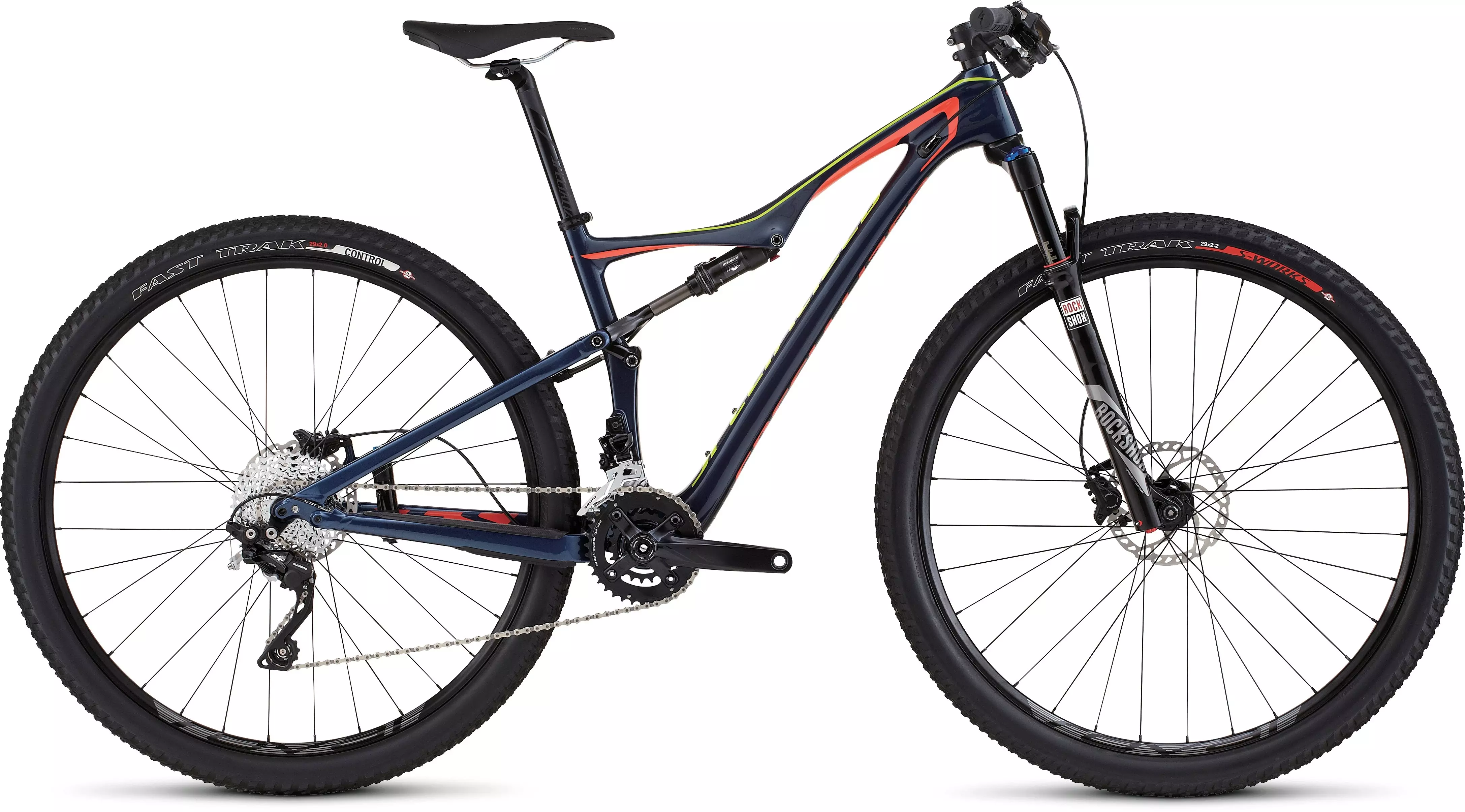

Era Comp Carbon 29
$3,800.00
Part No.

Era Comp Carbon 29

$3,800.00
Part No.  106536
load-spinner
Era Comp Carbon 29
Overview
Technical Specifications
Geometry
Reviews
Going fast is as much about attitude as it is raw power, and the Era Comp Carbon 29er has sass to spare. With race-ready components, plus a lightweight carbon frame and reliable, Roval 29 alloy wheels, this bike's ready to help convert your raw power into your best time ever—and maybe a podium spot to boot. Designed and engineered to be the fastest, lightest, and best-fitting women's full-suspension XC machine around, it's the only woman's XC bike that dynamically reads terrain for everything from uphill sprints to singletrack descents. Efficient, fast, powerful—you two are made for each other.
  • The ever-reliable Roval 29, alloy wheels are race-ready and built to handle anything the trail throws at you.
  • The FOX/Specialized remote Mini Brain does the thinking for you, and is the only shock that knows the difference between rider-induced and trail-induced bumps on the ground, making it the most efficient suspension of its kind.
  • The Era’s lightweight, FACT 9m carbon frame is designed with Women's Competitive XC 29 Geometry and features internal cable routing and a built-in SWAT Tool cradle so you’ll always have an EMT multi-tool on hand.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME FACT 9m carbon, Women's Competitive XC 29 Geometry, M5 rear triangle, carbon PF30 BB, carbon headset cups, 142mm dropouts, internal cable routing, FD mount, PM 160 rear brake, SWAT tool cradle
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval 29, alloy, 21mm inner width, 32h
FRONT TIRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed double, PF30, 34/22T, 104/64mm BCD spider
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS Shimano SLX, 10-speed, trigger
FRONT DERAILLEUR Custom SRAM X0, 2x10, high direct mount
REAR DERAILLEUR Shimano XT Shadow Plus, 10-speed, SGS cage
COCKPIT
SADDLE Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm
SEATPOST Specialized, alloy, single bolt, 27.2mm
GRIPS Specialized Sip Grip, lock-on, half-waffle, regular thickness
HANDLEBARS Specialized, flat bar, 8-degree backsweep, 31.8mm
STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Shimano BR-M615, hydraulic
FRONT BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
REAR BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK RockShox Reba RL 29, Solo Air spring, S: 90mm travel, M/L: 100mm travel, compression adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
REAR SHOCK FOX/Specialized remote Mini Brain, AUTOSAG, custom women's Brain tune, Brain Fade adjust I-Valve, S: 200x43mm, M/L: 200x48mm,

Geometry

Geometry Chart

Era - Geometry

S M L
  S M L
Stem Length 60mm 75mm 90mm
Crank Length 165mm 170mm 175mm
Seatpost Length 350mm 350mm 400mm
Handlebar Width 660mm 660mm 660mm
Reach 393mm 415mm 438mm
Stack 588mm 598mm 607mm
Wheelbase 1079mm 1107mm 1135mm
Bike Stand-Over Height 719mm 729mm 737mm
Head-Tube Length 90mm 95mm 110mm
Front-Center 634mm 661mm 688mm
Fork Rake/Offset 46mm 46mm 46mm
Head-Tube Angle 70.5° 70.5° 70.5°
Trail 82mm 82mm 82mm
B-B Height 320mm 325mm 330mm
Chain-Stay Length 449.7mm 449.7mm 449.7mm
Fork Length (full) 496mm 506mm 506mm
Seat-Tube Angle 75° 75° 75°
B-B Drop 50mm 45mm 40mm
Seat-Tube Length 385mm 420mm 445mm
Top-Tube Length (horizontal) 550mm 575mm 600mm
