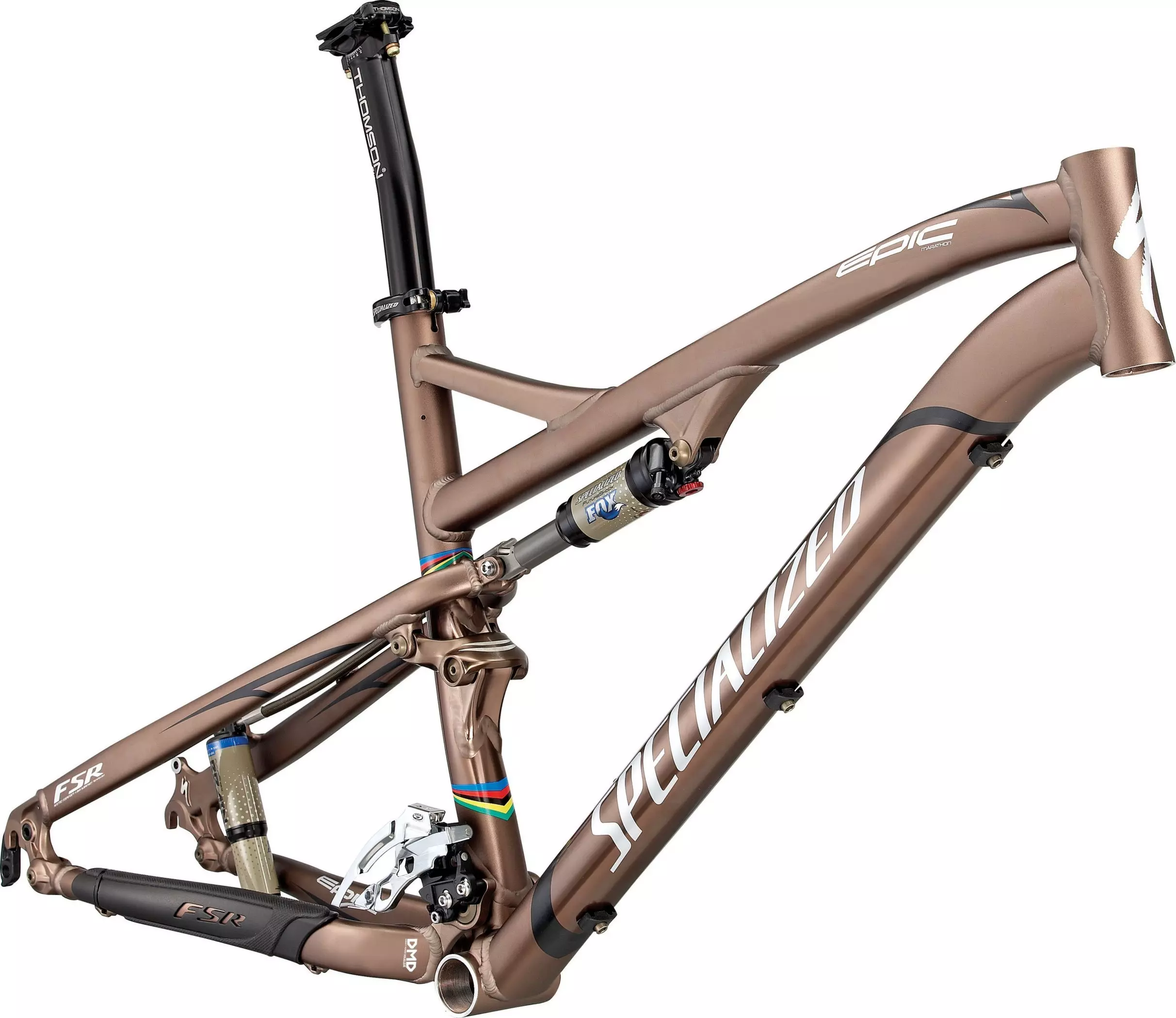

Epic Marathon Frame
Overview
Technical Specifications
Geometry
Reviews
With a XC World Championship to its name and complete bike weights as low as 21.5 pounds, the Epic® is the lightest, most efficient and fastest performance cross-country bike available. An integrated approach to the design of all its critical components, along with an enhanced AFR inertia rear shock and Specialized/FOX Shox Mini Brain® damper, will no doubt make a full suspension convert out of any competition- hungry rider.
  • Epic FSR M5 alloy, fully manipulated frame w/ ORE DT/TT, sealed cartridge bearings, 100mm travel
  • Specialized and Fox blend their brains to develop the new FlowControl Mini Brain shock with Brain Fade adjust inertia valve, air spring and adjustable rebound for trophy-stockpiling performance

Technical Specifications

DRIVETRAIN
FRONT DERAILLEUR Shimano M770 XT, DMD, top swing, dual pull
SUSPENSION
REAR SHOCK Fox/SBC remote Mini-Brain, inertia valve, w/ Brain fade adjust
COCKPIT
SEATPOST Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL:410mm
FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
FRAME Epic FSR M5 alloy, fully manipulated frame w/ ORE DT/TT, sealed cartridge bearings, 100mm travel, replaceable derailleur hanger

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 400mm 429mm 450mm 470mm
Stack 547mm 567mm 585mm 604mm
Chainstay Length 425mm 425mm 425mm 425mm
Top Tube Length (Actual) 548mm 572mm 597mm 624mm
Ground-Top 878mm 898mm 916mm 935mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 729mm 751mm 759mm 764mm
Wheel Base 1061mm 1098mm 1126mm 1153mm
Head Tube Height 100mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 74.2° 74.2° 74.2° 74.2°
Seat Tube Length - Center to Top 394mm 444mm 483mm 533mm
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
