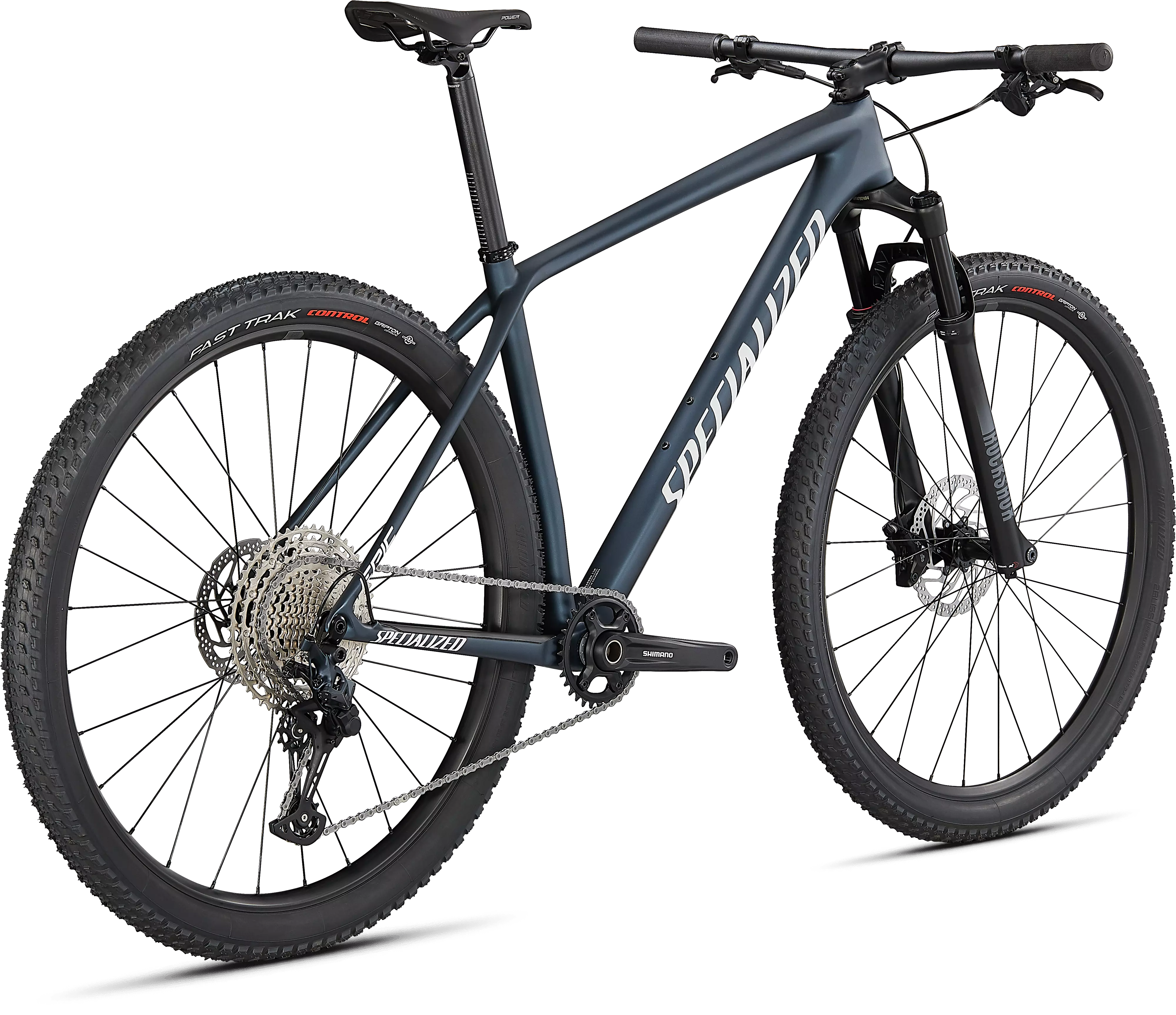

Epic Hardtail
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 594mm | 608mm | 608mm | 622mm | 636mm |
Reach | 385mm | 405mm | 430mm | 455mm | 480mm |
Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm |
Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
BB Height | 309mm | 309mm | 309mm | 309mm | 309mm |
BB Drop | 63mm | 63mm | 63mm | 63mm | 63mm |
Trail | 101mm | 101mm | 101mm | 101mm | 101mm |
Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 643mm | 670mm | 695mm | 725mm | 755mm |
Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm |
Wheelbase | 1064mm | 1092mm | 1117mm | 1148mm | 1178mm |
Top Tube Length, Horizontal | 555mm | 579mm | 604mm | 633mm | 662mm |
Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm |
Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
