Epic Hardtail
$1,900.00
Part No.

Epic Hardtail

$1,900.00
Part No.  115227
load-spinner
Epic Hardtail
Overview
Technical Specifications
Geometry
Reviews

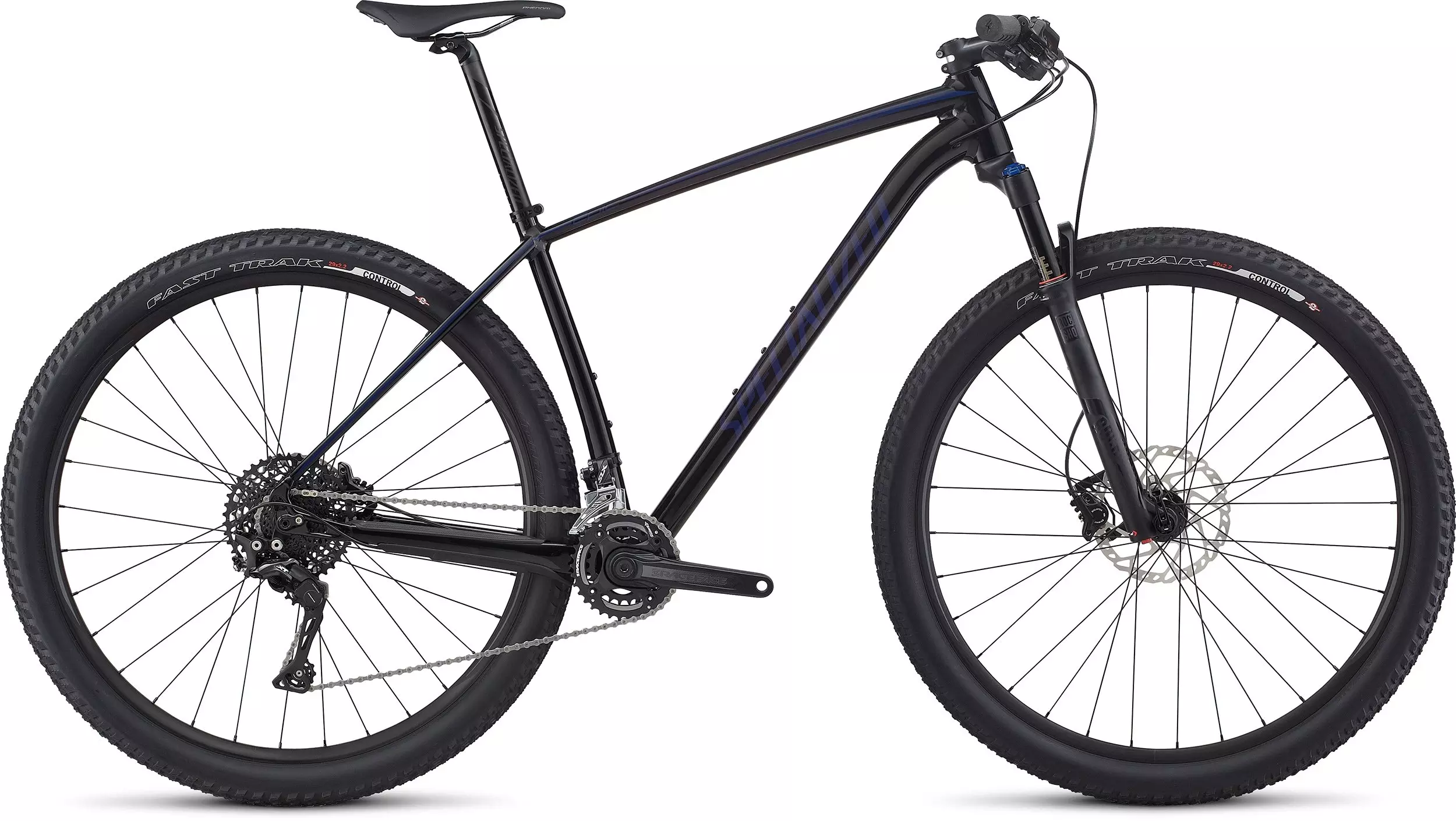

Our Epic Hardtail singlehandedly takes hardtail alloy XC bikes into the modern age, with the most capable geometry out there and a build kit that's all business. We built the entire frame from our top notch M5 Alloy to ensure an ultra-stiff, lightweight, and highly responsive ride quality that's well suited for XC racing. We've also tweaked the geometry for more speed and stability by slacking-out the head tube angle, lengthening the top tube, and correcting the seat tube angle. This way, it feels more planted then ever, and frankly, it's stupid fast. We also widened the rear spacing to 12x142mm and included internal cable routing. For the build, this Epic hits right on the money, opting for a custom-tuned RockShox Reba RL fork and 11-speed Shimano SLX shifting.
  • Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry and internal cable routing, you get a bike that compromises nothing in delivering explosive speed, confident handling, and hassle-free maintenance.
  • A custom RockShox Reba RL 29 fork offers up 80/95mm of smooth travel, while an easily accessible compression and rebound adjusts permit you to customize the feel according to the terrain at hand.
  • Shimano controls the 11-speed shifting with SLX shifters and an ultra-crisp and reliable Deore XT M8000 rear derailleur.

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-1110, 11-speed w/PowerLink
CRANKSET RaceFace Aeffect, 6000-series alloy, 24mm spindle, 49mm chainline, 34/24T
FRONT DERAILLEUR Shimano SLX 7025, direct-mount, down-swing
SHIFT LEVERS Shimano SLX M7000, 11-speed
CASSETTE SRAM PG-1130, 11-speed, 11-42t
REAR DERAILLEUR Shimano Deore XT M8000, Shadow Plus, SGS cage, 11-speed
SUSPENSION
FORK Custom RockShox Reba RL, rebound adjust, Solo Air spring, tapered alloy crown/steerer, 15x100mm Maxle Stealth thru-axle, 80/95mm of travel, 51mm offset
COCKPIT
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized Alloy 27.2mm
STEM Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm width, 31.8mm
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
WHEELS
FRONT HUB Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h
REAR HUB Specialized disc, alloy, 6-bolt disc, sealed cartridge bearings, 12x142mm thru-axle, 28h
SPOKES Stainless, black, 14g
RIMS Specialized Stout, alloy hookless bead, 32h
FRONT TIRE Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
BRAKES
FRONT BRAKE Shimano M506, hydraulic disc, resin pad, 180/160mm rotor
REAR BRAKE Shimano M506, hydraulic disc, resin pad, 160mm rotor
FRAMESET
SEAT BINDER Specialized, alloy, 30.8mm
FRAME M5 alloy, XC 29 Geometry, tapered head tube, internal cable routing, 12x142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 70mm 90mm 100mm 110mm
Saddle Width 143mm 143mm 143mm 143mm
Handlebar Width 720mm 720mm 720mm 720mm
Seat Post Length 350mm 400mm 400mm 400mm
Reach 390mm 414mm 437mm 458mm
Stack 592mm 610mm 625mm 639mm
Wheelbase 1047mm 1078mm 1105mm 1131mm
Bike Stand-Over Height 760mm 799mm 826mm 849mm
Head-Tube Length 90mm 100mm 115mm 130mm
Front-Center 624mm 655mm 682mm 708mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 79mm 79mm 79mm 79mm
B-B Height 310mm 310mm 310mm 310mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Fork Length (full) 486mm 496mm 496mm 496mm
Seat-Tube Angle 73.5° 73.5° 73.5° 73.5°
B-B Drop 61mm 61mm 61mm 61mm
Seat-Tube Length 394mm 434mm 470mm 505mm
Top-Tube Length (horizontal) 565mm 593mm 620mm 643mm
