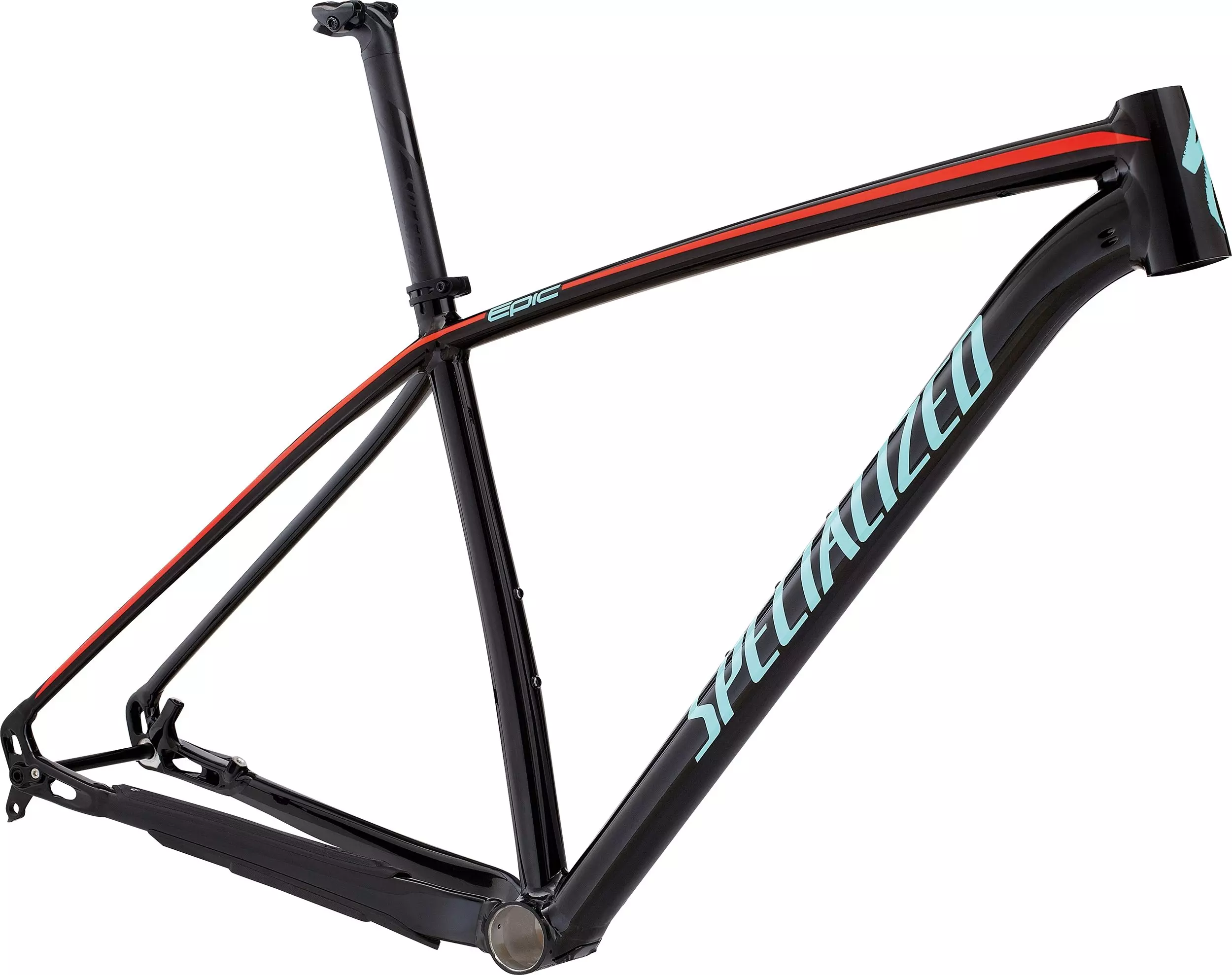

Epic Hardtail Alloy 29 Frame
Part No.

Epic Hardtail Alloy 29 Frame

Part No.  119005
Epic Hardtail Alloy 29 Frame
Technical Specifications
Our Epic Hardtail frame singlehandedly takes hardtail alloy XC bikes into the modern age, with the most capable geometry out there and a build kit that's all business. We built the entire frame from our top notch M5 Alloy to ensure an ultra-stiff, lightweight, and highly responsive ride quality that's well suited for XC racing. We've also tweaked the geometry for more speed and stability by slacking-out the head tube angle, lengthening the top tube, and correcting the seat tube angle. This way, it feels more planted then ever, and frankly, it's stupid fast. We also widened the rear spacing to 12x142mm and included internal cable routing.
  • Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry and internal cable routing, you get a bike that compromises nothing in delivering explosive speed, confident handling, and hassle-free maintenance.
  • A single-bolt alloy seatpost provides a comfortable and confident perch.

Technical Specifications

SEATPOST Specialized Alloy 27.2mm
SEAT BINDER Specialized, alloy, 30.8mm
FRAME M5 alloy, XC 29 Geometry, tapered head tube, PF30 BB, internal cable routing, 12x142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger


Geometry Chart

Epic - Geometry

  S M L XL
Seat Post Length 350mm 400mm 400mm 400mm
Reach 390mm 414mm 437mm 458mm
Stack 592mm 610mm 625mm 639mm
Wheelbase 1047mm 1078mm 1105mm 1131mm
Bike Stand-Over Height 760mm 799mm 826mm 849mm
Head-Tube Length 90mm 100mm 115mm 130mm
Front-Center 624mm 655mm 682mm 708mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 79mm 79mm 79mm 79mm
B-B Height 310mm 310mm 310mm 310mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Fork Length (full) 486mm 496mm 496mm 496mm
Seat-Tube Angle 73.5° 73.5° 73.5° 73.5°
B-B Drop 61mm 61mm 61mm 61mm
Seat-Tube Length 394mm 434mm 470mm 505mm
Top-Tube Length (horizontal) 565mm 593mm 620mm 643mm
