Epic Expert Carbon World Cup 29

Icon

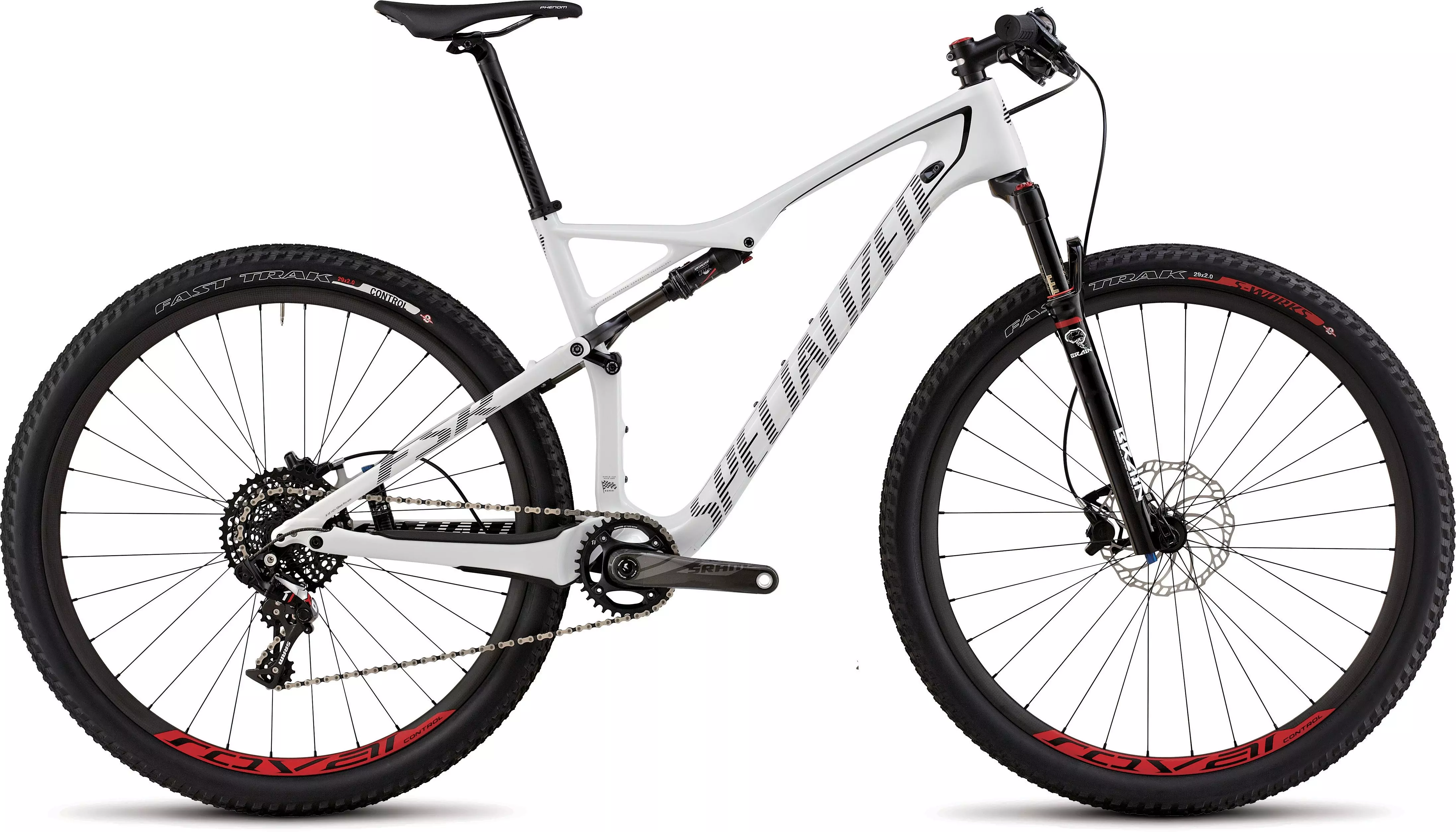

2015 Epic Expert Carbon World Cup 29

With 29-inch Roval Control Carbon wheels, FACT 10m carbon frame with World Cup Geometry, and Brain inertia valve damping technology in both the FOX/Specialized shock and custom 95mm-travel RockShox SID fork, the Epic Expert Carbon World Cup has the speed to tame any cross-country terrain.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 10m carbon, 29"" World Cup Geometry, FACT IS construction, FACT carbon front triangle, FACT carbon World Cup mega-chainstays, M5 alloy seatstays, single ring only, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 95mm travel

SWAT

SWAT MTB XC Kit w/ bottle cages, EMT Tool, and Top Cap Chain Tool Compatible (EMT tool included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

REAR SHOCK

FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, BrainFade adjust, 200x48mm, 95mm travel

FORK

RockShox SID 29 Brain, Solo Air spring, tapered alloy steerer, bottom-mount BrainFade, rebound adjust, 15mm thru-axle, 95mm travel

WHEELS

RIMS

Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h

FRONT HUB

Roval Control Carbon 29, 15mm thru-axle, 32h

REAR HUB

Roval Control Carbon 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h

SPOKES

DT Swiss Revolution

FRONT TIRE

S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0""

REAR TIRE

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""

DRIVETRAIN

REAR DERAILLEUR

SRAM X01, 11-speed, carbon cage

SHIFT LEVERS

SRAM X01, 11-speed, trigger

CASSETTE

SRAM XG 1195, 11-speed, 10-42

CHAIN

SRAM, 11-speed

CRANKSET

Custom SRAM S-2200, carbon, PF30 spindle, 32T, 94mm BCD spider

BOTTOM BRACKET

SRAM, PF30, OS press-in bearings, sealed cartridge

COCKPIT

SADDLE

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized alloy, single bolt, 27.2mm

STEM

Specialized, forged alloy, 6-degree rise

HANDLEBARS

Specialized flat, 8-degree backsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

BRAKES

FRONT BRAKE

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 160mm rotor, Others: 180mm

REAR BRAKE

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, 160mm Storm SL rotor

BRAKE LEVERS

Magura MTS, alloy lever

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Seat Tube Length, Center to Top400mm434mm470mm520mm
Top Tube Length, Actual529mm557mm583mm611mm
Bottom Bracket Drop40mm40mm40mm40mm
Bottom Bracket Height332mm332mm332mm332mm
Seat Tube Angle, Actual69.4°69.75°70.1°70.5°
Seat Tube Angle, Effective74.25°74.25°74.25°74.25°
Wheel Base1073mm1103mm1131mm1157mm
Standover Height770mm774mm780mm793mm
Stack583mm597mm611mm630mm
Reach398mm423mm446mm465mm
Head Tube Length90mm105mm120mm140mm
Head Tube Angle71°71°71°71°
Chainstay Length439mm439mm439mm439mm
Top Tube Length, Horizontal562mm592mm618mm643mm
Crank Length170mm175mm175mm175mm
Handlebar Width700mm700mm700mm700mm
Stem Length75mm90mm100mm110mm
Seatpost Length350mm400mm400mm400mm
