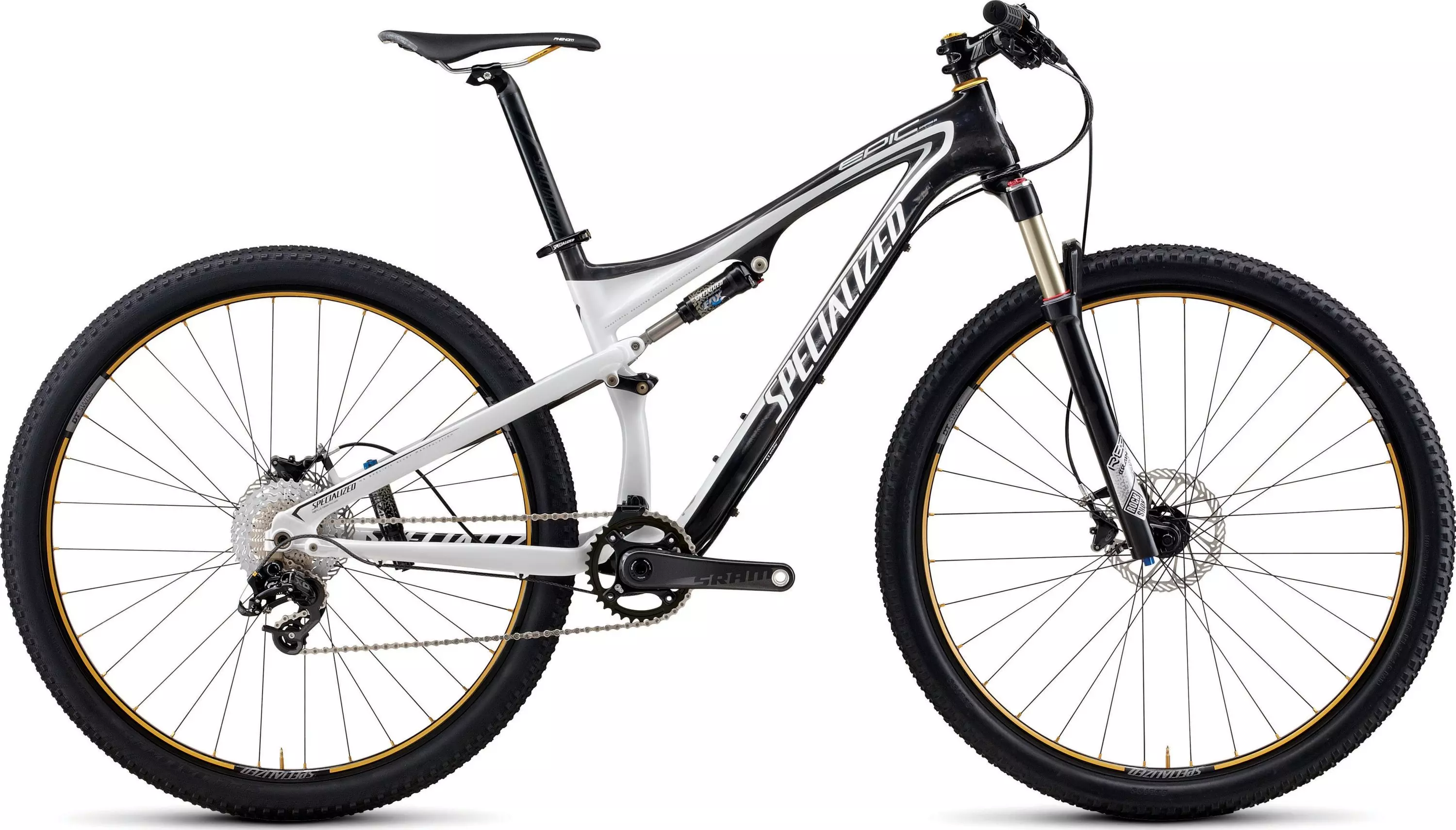

Epic Expert Carbon EVO R 29er
Overview
Technical Specifications
Geometry
Reviews
The Evo R is the evolution of the fastest XC race bike in the world, with lighter, faster, race-specific parts all around.
  • Super light FACT IS 9m carbon 29er-specific frame with M5 alloy rear triangle and sealed cartridge bearing pivots delivers strength, rigidity, and suppleness to create an uncompromising 100mm-travel Competitive XC bike
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring and adjustable rebound for World Cup - and local trail - domination
  • Custom RockShox Reba 29 100mm fork with Brain features rebound and Brain Fade adjustments to dial in the perfect platform for 29er bliss
  • S-Works FACT 680mm carbon flat bar is feather light and seriously stiff for XC finesse and power
  • Custom Specialized Evo XC DMD 1x10 chain guide to keep chain solidly in place while shifting through 10 speeds
  • World-class, featherlight S-Works Renegades are 2Bliss Ready and offer maximum speed and control in hardpack or intermediate XC conditions: 1.95" front & rear

Technical Specifications

FRAMESET
SEAT BINDER 36.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, for carbon frame
HEADSET 1-1/8"" and 1-1/2"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
FRAME FACT 9m carbon front triangle, 29"" geometry, FACT IS construction, gussetless TT S/M, M5 aluminum chainstays & seatstays, tapered HT, carbon PF-30 BB, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB Specialized Hi Lo 142+ disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Competition 1.8/1.6mm stainless
RIMS Custom DT Swiss X450SL, 29"" rim, 24mm w/ eyelets, 32h
FRONT TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
REAR TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
DRIVETRAIN
BOTTOM BRACKET SRAM PF-30, OS press-in bearing, sealed cartridge
CHAIN KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET Custom SRAM Carbon S-2200, 34t single ring, PF-30, removeable spider, S: 170mm, others: 175mm
CASSETTE Shimano HG81, 10-speed, 11-36t
SHIFT LEVERS SRAM X.9, 10-speed, aluminum trigger
FRONT DERAILLEUR Custom Specialized EVO XC DMD chain guide for 1x10
CHAINRINGS 34t 7050-alloy
REAR DERAILLEUR SRAM X.0, 10-speed, short cage
COCKPIT
SADDLE Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm, 400mm
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
HANDLEBARS S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8 degree back sweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
BRAKES
BRAKE LEVERS Custom Avid Elixir CR SL, hydraulic disc, tool-less adj. reach and pad contact, alloy lever blade
FRONT BRAKE Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, S/M: 160mm, L/XL: 185mm rotor
REAR BRAKE Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 160mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK Custom RockShox Reba 29 w/Brain, inertia valve damper, air spring, tapered alloy steerer, Brain Fade and rebound adj., QR, 100mm travel
REAR SHOCK Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length

Geometry

Geometry Chart

Epic - Geometry

  Sm Med LG XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm
Reach 386mm 415mm 438mm 458mm
Stack 586mm 605mm 614mm 633mm
Chainstay Length 448mm 448mm 448mm 448mm
Top Tube Length (Actual) 527mm 559mm 584mm 607mm
Ground-Top 917mm 936mm 945mm 964mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70.5° 70.5° 70.5° 70.5°
Standover Height 755mm 766mm 775mm 790mm
Wheel Base 1075mm 1109mm 1136mm 1163mm
Head Tube Height 90mm 110mm 120mm 140mm
Seat Tube Angle (Actual) - Low Setting 69.5° 69.5° 70° 70°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
