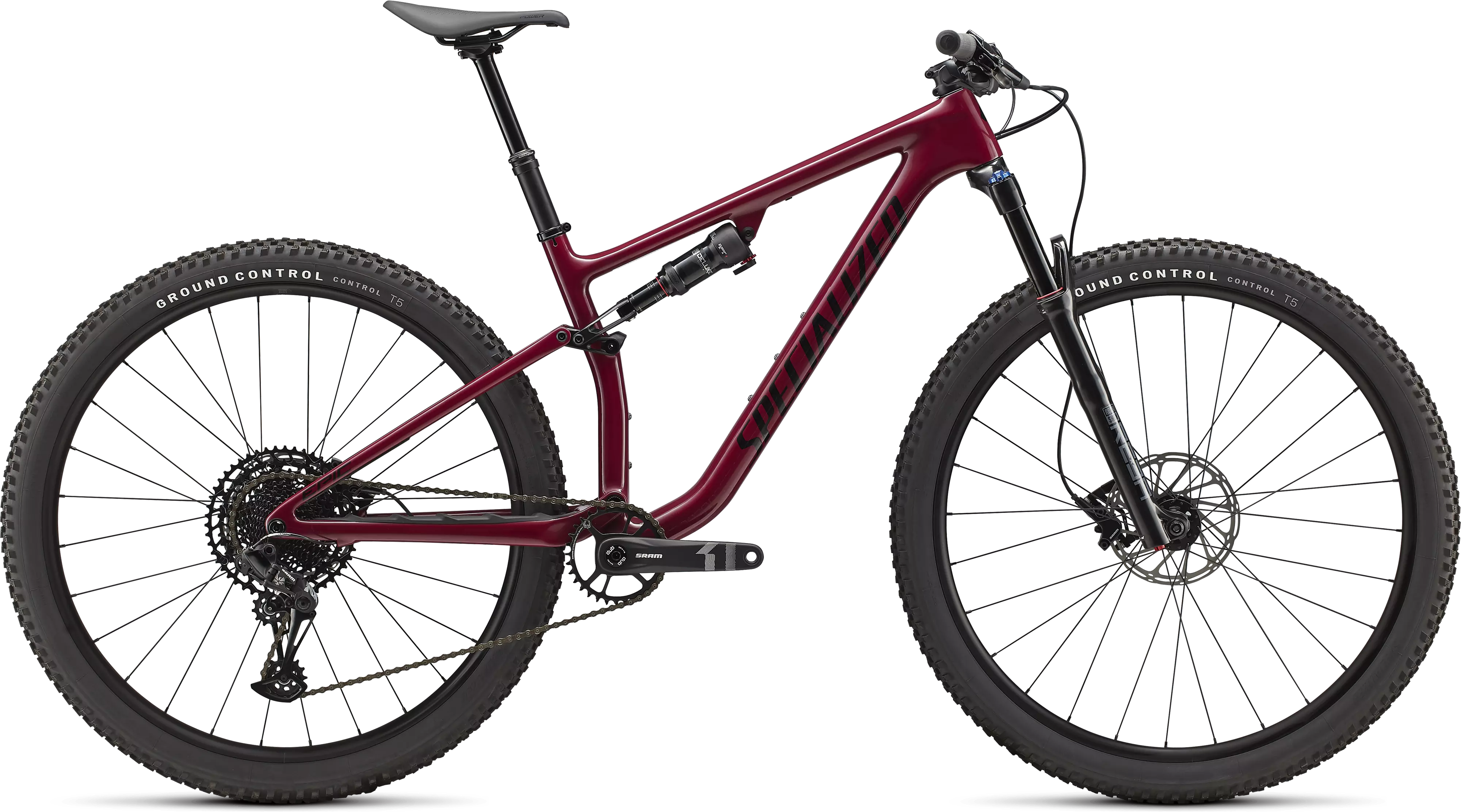

Epic EVO

Epic EVO

We deliver! Just say when and how.

Remember when cross country didn’t always involve a starting gun? So do we.

And, while it’ll never turn down a number plate, Epic EVO is well-acquainted with the fact that the next ridgeline makes a perfectly good finish line too, offering an incredible combination of pedaling efficiency and impressive trail-taming capability to get you there faster.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with our Rx XC shock tune to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize the Epic EVO’s handling characteristics.

Epic EVO’s flyweight FACT 11m carbon frame features heavy-hitting SRAM components and RockShox suspension for a package tailor-made for making miles disappear faster than ever.

Technical Specifications

Frameset

Frame

FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

Seat Binder

Specialized Alloy, 34.9mm

Suspension

Rear Shock

RockShox Deluxe Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

Fork

RockShox Reba RL, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 120mm of travel

Cockpit

Stem

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

Handlebars

Specialized Alloy, 20mm rise, 31.8mm, 760mm wide

Tape

Specialized Trail Grips

Saddle

Body Geometry Power Sport, steel rails

SeatPost

TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm

Brakes

Front Brake

SRAM Level T hydraulic disc, 2-Piston Caliper

Rear Brake

SRAM Level T hydraulic disc, 2-Piston Caliper

Drivetrain

Rear Derailleur

SRAM NX Eagle, 12-speed

Shift Levers

SRAM NX Eagle, trigger, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Chain

SRAM SX Eagle, 12-speed

Crankset

SRAM X1000 Eagle, DUB, 170/175mm 32T

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Wheels & Tires

Rims

Specialized Alloy, Tubeless Ready, 29mm internal width, 28h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

Stainless, 14g

Front Tire

Specialized Ground Control, Control Casing, T5 Compound, 29x2.35

Rear Tire

Specialized Ground Control, Control Casing, T5 Compound, 29x2.35

Inner Tubes

Standard, Presta Valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

XSSMLXL
Crank Length165mm170mm175mm175mm175mm
Handlebar Width760mm760mm760mm760mm760mm
Stem Length60mm60mm60mm60mm60mm
Saddle Width155mm155mm143mm143mm143mm
Seatpost Length100mm125mm125mm150mm150mm
Stack603mm593mm597mm611mm629mm
Reach380mm406mm436mm460mm485mm
Head Tube Length95mm95mm100mm115mm135mm
Seat-Tube Angle66.5°66.5°66.5°66.5°66.5°
BB Height326mm336mm336mm336mm336mm
BB Drop46mm36mm36mm36mm36mm
Trail114mm114mm114mm114mm114mm
Fork Length, Full530mm530mm530mm530mm530mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center672mm697mm729mm759mm792mm
Chainstay Length438mm438mm438mm438mm438mm
Wheelbase1106mm1132mm1164mm1194mm1227mm
Bike Standover Height760mm779mm781mm793mm804mm
Seat Tube Length375mm400mm430mm470mm520mm
Seat Tube Angle75.5°74.8°74.5°74.5°74.5°
Top Tube Length, Horizontal536mm567mm602mm629mm659mm
