Epic EVO Pro

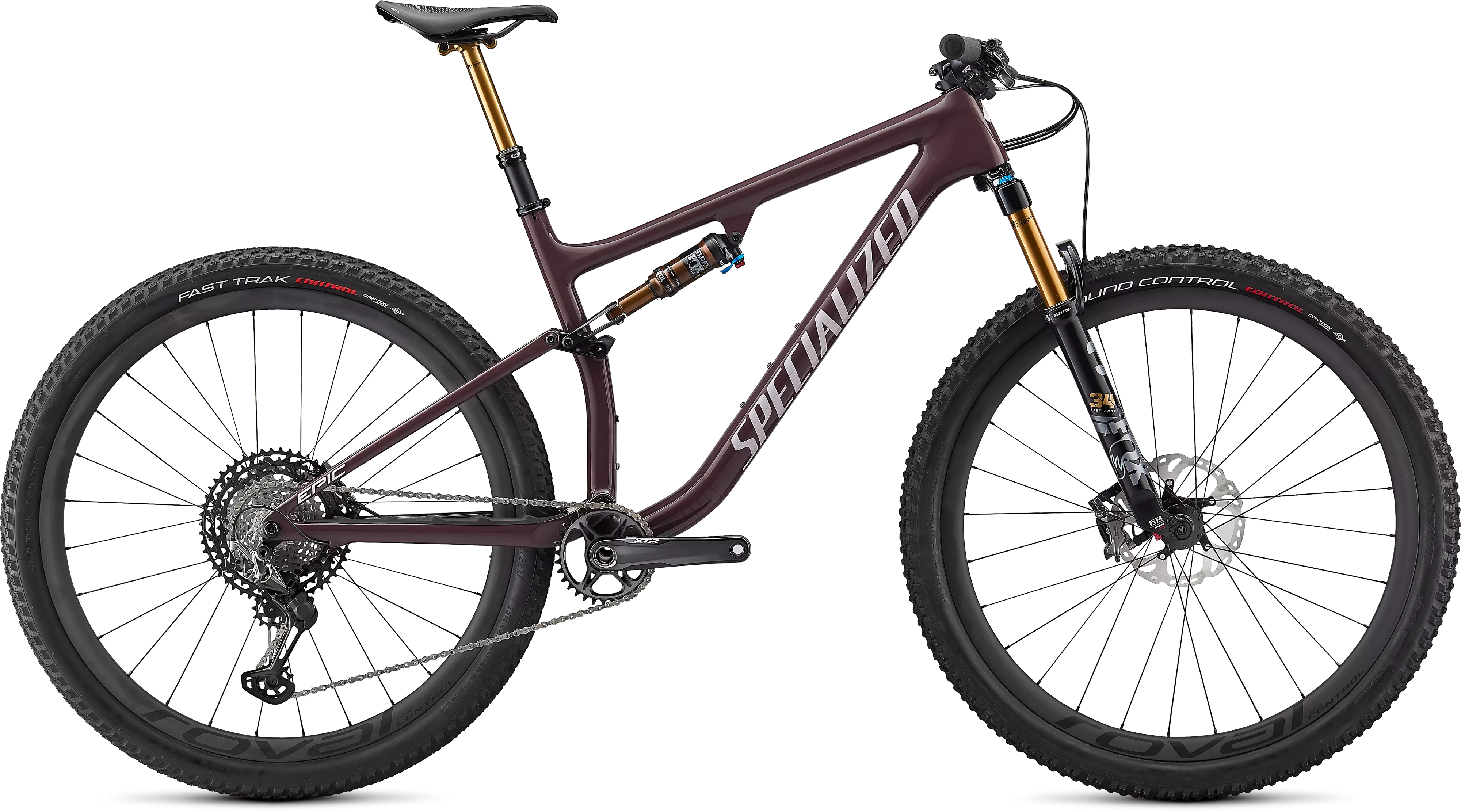

2021 Epic EVO Pro
Trail-worthy, meet drool-worthy. Perfect, now that introductions are out of the way, let's do our best to try and grasp the fact that the Epic EVO Pro manages to channel the Epic's standard-setting pedaling efficiency while delivering jaw-dropping on-trail capability—and look darn good doing it.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we've worked overtime to make sure it's been implemented in a way that'll have you saying 'Whoa!' as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic's standard-setting efficiency as possible, the EVO's new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It's also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO's handling characteristics.

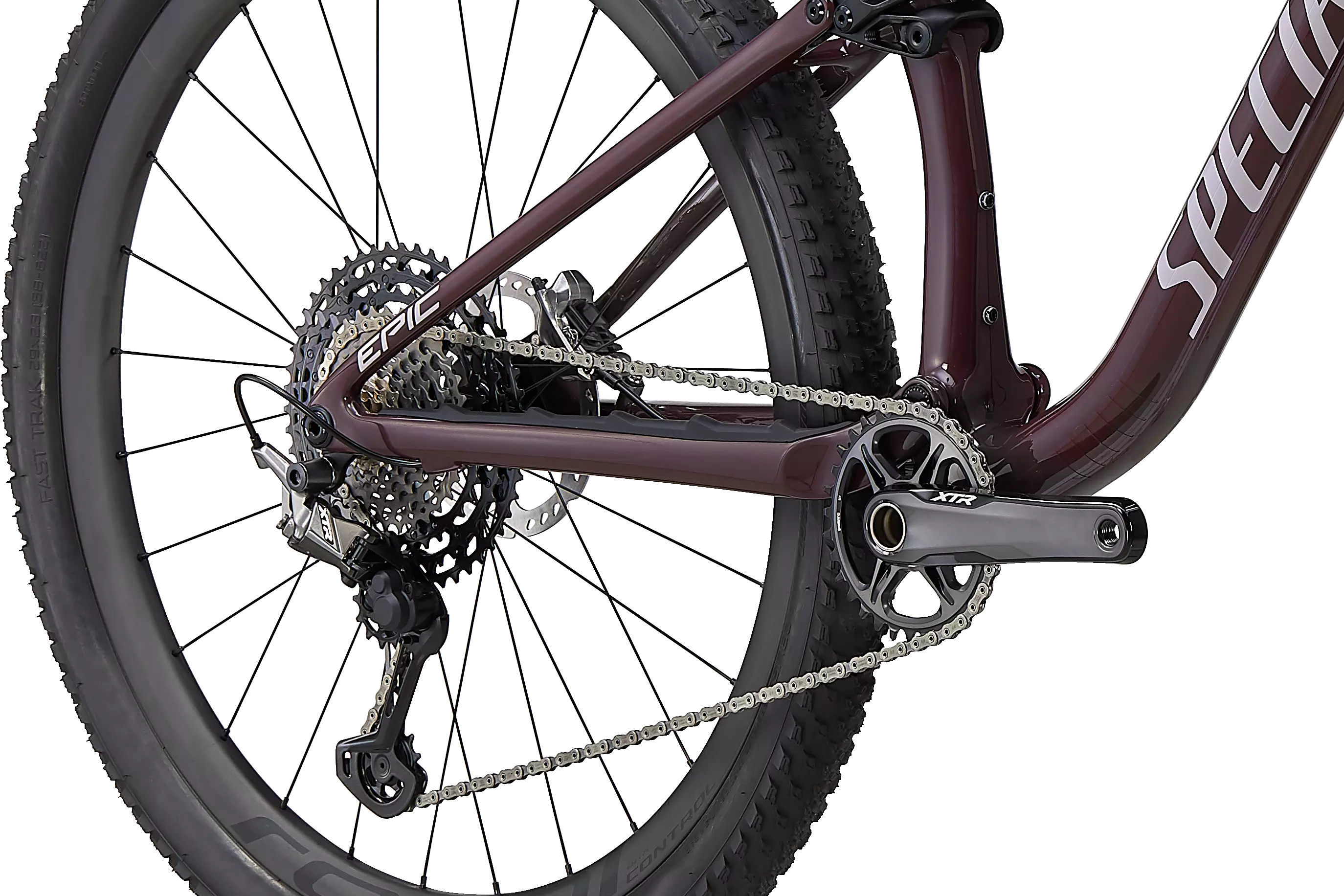

Dressed to impress, the Epic EVO Pro sports top-shelf Fox Factory suspension front and rear to keep things poised when the going gets rough, while the silky shifts and rock-solid performance of Shimano's 12-speed XTR group will never go out of style.
Technical Specifications
DRIVETRAIN
Chainrings
50/34T
Shift Levers
Shimano XTR M9100, 12-speed
Bottom Bracket
Shimano, BB-MT800, Threaded
Crankset
Shimano XTR 9100, Hollowtech 2, 162 q-factor, 32T Chainring, SM: 170mm, M-XL: 175mm
Cassette
Shimano XTR M9100, 12-speed, 10-51t
Rear Derailleur
Shimano XTR M9100, 12-speed, Shadow Plus
Chain
Shimano XTR M9100, 12-speed w/ quick link
WHEELS
Front Tire
Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Front Hub
DT Swiss 350, 15x110mm spacing, 6-bolt, 28h
Inner Tubes
Presta, 60mm valve
Rear Hub
DT Swiss 350, Star Ratchet, Shimano Microspline driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Swiss Competition Race
Rear Tire
Fast Trak, Control casing, GRIPTON? compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rims
Roval Control Carbon, 25mm internal width, Zero bead hook, Tubeless ready, 28h
COCKPIT
Handlebars
S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
SeatPost

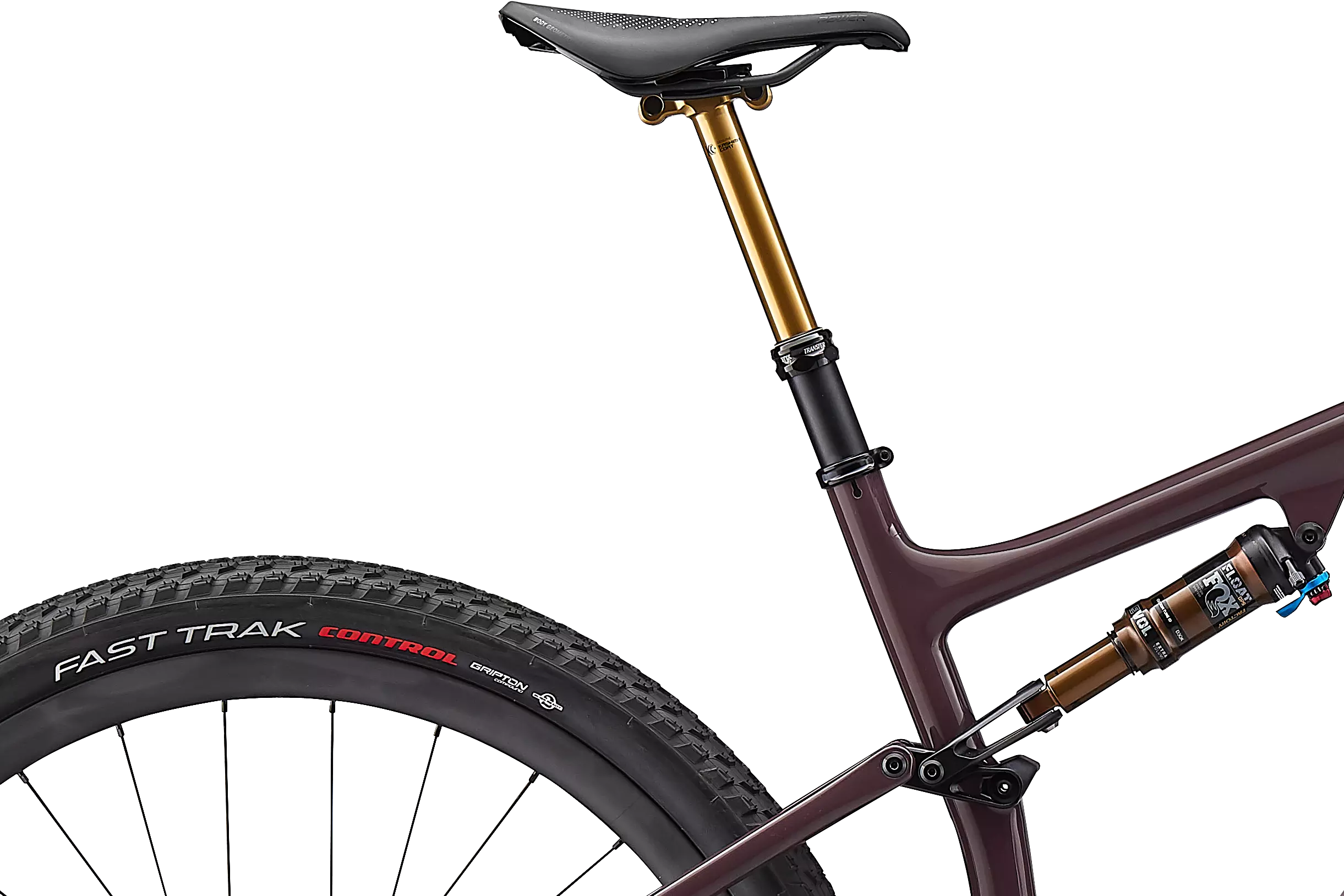

Fox Factory Transfer, Kashima, 30.9mm, 125mm / 150mm travel
Stem
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Body Geometry Power Expert, titanium rails
Tape
Specialized Trail Grips
Suspension
Fork
FOX FLOAT Step-Cast 34 Factory, Fit4 damper, Kashima Coating, 15x110mm, 44mm offset, 120mm of travel
Rear Shock
FOX FLOAT DPS Factory, Rx XC Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x40mm
BRAKES
Front Brake
Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor
ACCESSORIES
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
FRAMESET
Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Seat Binder
Specialized Alloy, 34.9mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Seatpost Length | 361mm | 361mm | 446mm | 446mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack | 593mm | 597mm | 611mm | 629mm |
| Reach | 406mm | 436mm | 460mm | 485mm |
| Head Tube Length | 95mm | 100mm | 115mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| BB Drop | 36mm | 36mm | 36mm | 36mm |
| Trail | 114mm | 114mm | 114mm | 114mm |
| Fork Length, Full | 530mm | 530mm | 530mm | 530mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 697mm | 729mm | 759mm | 792mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm |
| Wheelbase | 1132mm | 1164mm | 1194mm | 1227mm |
| Bike Standover Height | 779mm | 781mm | 793mm | 804mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 567mm | 602mm | 629mm | 659mm |
