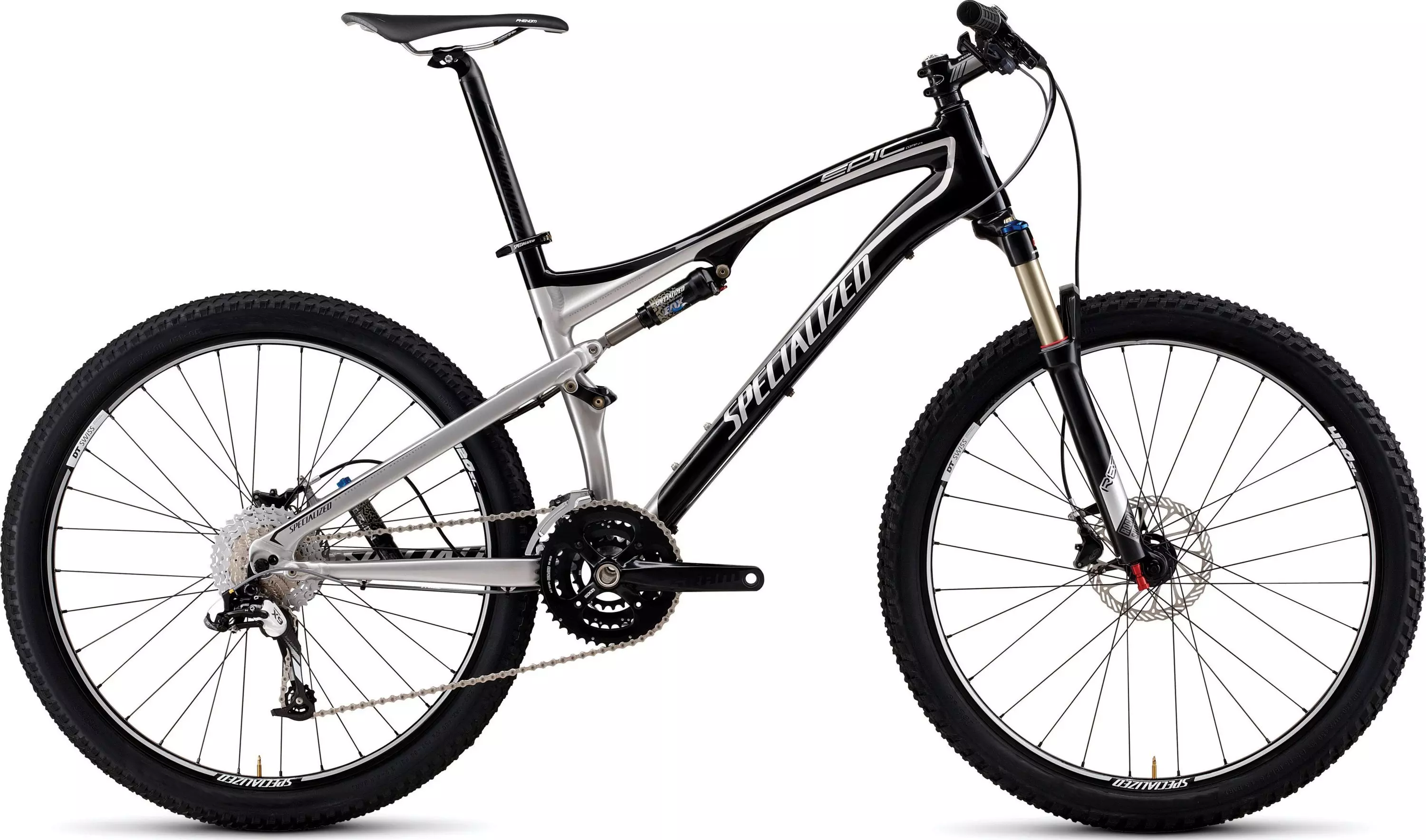

Epic Comp
$3,000.00
Part No.

Epic Comp

$3,000.00
Part No.  23329
load-spinner
Epic Comp
Overview
Technical Specifications
Geometry
Reviews
With world champ blood lines, the Comp is race-ready right out of the box.
  • SRAM's venerable X.9 long cage rear derailleur is super tough and light, yet delivers pinpoint shifts in the worst conditions
  • Specialized BG Phenom Comp saddle with hollow Cr-Mo rails is a lightweight and minimalist design, tuned for sit bone flex and comfortable climbing
  • M5 alloy frame rules the Competitive XC category with 100mm of supple FSR suspension, delivering small bump performance and unsurpassed efficiency in smooth terrain
  • Custom Avid Elixir R SL lightweight hydraulic brakes with tool-less reach adjust and long-lasting semi-metallic pads keep you in check with superb control and modulation
  • S-Works The Captain 2.0" front and S-Works Fast Trak 2.0" rear 2Bliss Ready dual compound tires work together to deliver exceptional speed and traction, while minimizing rotating weight
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
HEADSET 1-1/8"" and 1-1/2"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
FRAME M5 alloy, fully manipulated frame w/ ORE DT/TT, gussetless TT S/M, tapered HT, 135mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h
REAR HUB Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Champion 1.8mm (15g) stainless
RIMS Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT TIRE S-Works ""The Captain"", 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
REAR TIRE S-Works Fast Trak LK, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearing
CHAIN KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed triple, GXP spindle, S: 170mm, others: 175mm
CASSETTE Shimano HG81, 10-speed, 11-36t
SHIFT LEVERS SRAM X.7, 10-speed, aluminum trigger
FRONT DERAILLEUR SRAM X.7, 10-speed, S3 direct mount for DMD, bottom pull
CHAINRINGS 44A x 33A x 22S, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X.9, 10-speed, long cage
COCKPIT
SADDLE Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm, 400mm
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
HANDLEBARS Specialized XC low-rise bar, 2014 butted alloy, 660mm wide, 8 degree back sweep, 6 degree up, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL hydraulic, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, S/M: 160mm, L/XL: 185mm rotor
REAR BRAKE Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, S/M: 140mm, L/XL: 160mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK RockShox Reba RLT, tapered alloy steerer, compression and rebound adj. LO w/external floodgate adj., standard drop-outs, 100mm travel
REAR SHOCK Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 393mm 425mm 446mm 464mm
Stack 561mm 571mm 589mm 618mm
Chainstay Length 425mm 425mm 425mm 425mm
Top Tube Length (Actual) 527mm 560mm 586mm 615mm
Ground-Top 892mm 902mm 920mm 949mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 755mm 765mm 774mm 790mm
Wheel Base 1060mm 1096mm 1124mm 1152mm
Head Tube Height 125mm 135mm 155mm 185mm
Seat Tube Angle (Actual) - Low Setting 71.5° 71.5° 71.5° 71.5°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
