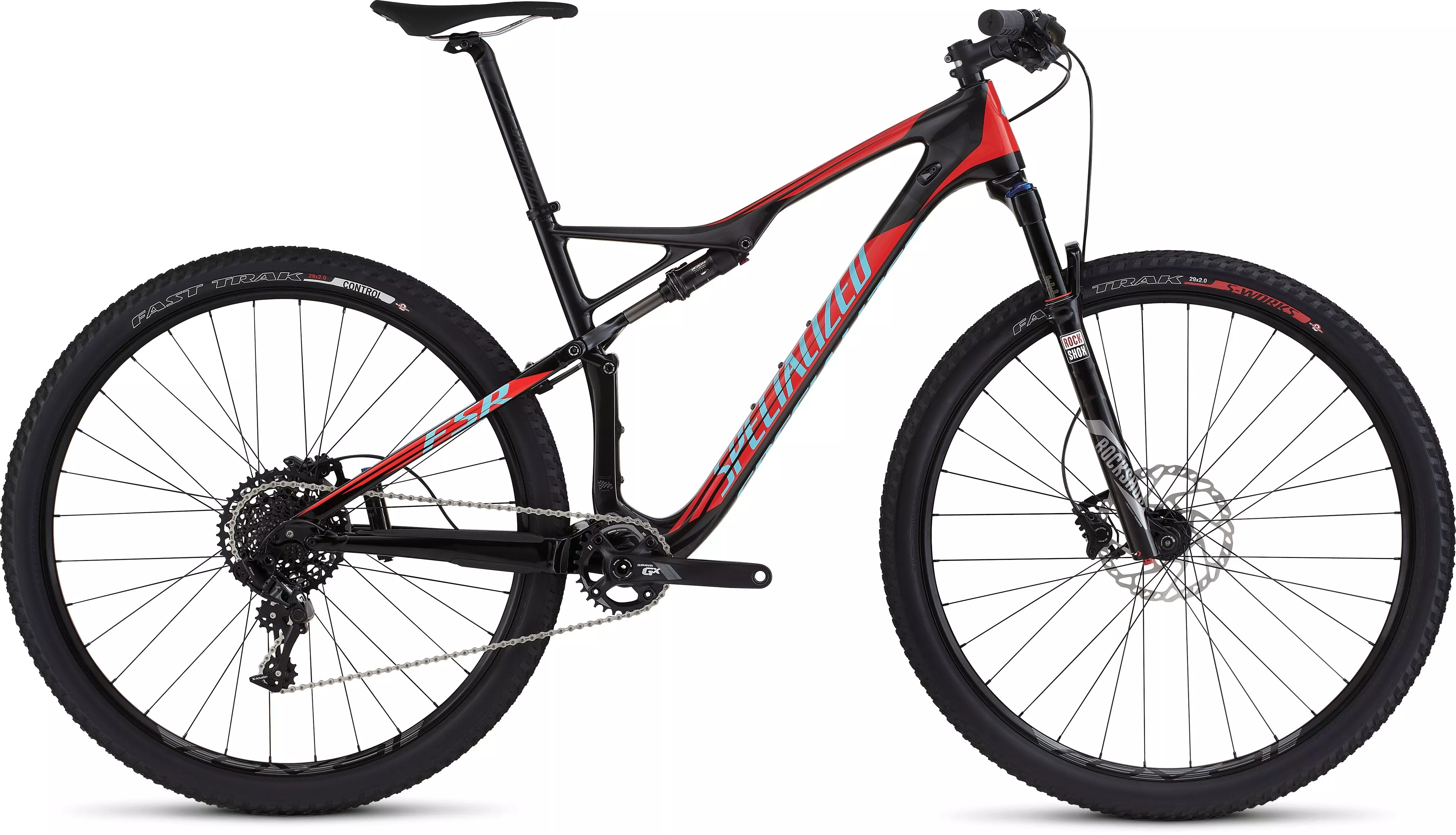

Epic Comp Carbon 29 World Cup
$3,800.00
Part No.

Epic Comp Carbon 29 World Cup

$3,800.00
Part No.  106305
load-spinner
Epic Comp Carbon 29 World Cup
Overview
Technical Specifications
Geometry
Reviews
Cross country racing has its own list of demands, and speed is at the top of the list. Our Epic Comp Carbon World Cup answers the call with a tighter geometry, along with shorter chainstays and tube lengths in comparison to a "standard" Epic. This gives the World Cup more explosive power transfer and nimbler handling, especially when paired up with the carbon chassis and M5 alloy rear end. As for the build, you truly start to see the theme of uncompromising speed at work, as we've hung some of SRAM's most reliable parts on this bike. And to make sure that you'll be utilizing every watt of power out of them, we included our Mini Brain rear shock that differentiates rider input from trail bumps to ensure that the bike stays stiff when you need it to. With all of this going on, it's easy to see why the Epic has long been the dominant force on the cross country scene.
  • A RockShox Reba RL 29 fork offers up 100mm of smooth travel, while an easily accessible compression and rebound adjusts permit you to customize the feel according to the terrain at hand.
  • Roval 29 alloy wheels feature a 21mm internal width, making them plenty stiff and lightweight for XC racing.
  • Custom FOX/ Specialized remote Mini Brain rear shock features AUTOSAG for easy set up and 95mm of fine-tunable suspension. To maximize efficiency, the proprietary design allows the shock to differentiate rider input and trail bumps, so the suspension feels firm under effort and plush over rough terrain.
  • By pairing a FACT 9m carbon fiber frame w/ a M5 alloy rear end with our World Cup XC 29 Geometry, this Epic places a focus on tight tube angles and light overall weight for explosive speed and nimble handling on the race circuit.
  • The drivetrain is comprised of a mix of SRAM 1x11 components, hand-selected to provide maximum performance at a more palatable value. Combine, the GX and S-1000 pieces deliver crisp shifting, stiff pedaling, and reliable precision—no matter what direction you're pointing the bike on the trail.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME FACT 9m carbon, World Cup XC 29 Geometry, M5 rear triangle, carbon PF30 BB, carbon headset cups, 142mm dropouts, internal cable routing, PM 160 rear brake, SWAT tool cradle
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 32h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval 29, alloy, 21mm inner width, 32h
FRONT TIRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.0""
REAR TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN KMC X11L, 11-speed, w/ reusable MissingLink
CRANKSET SRAM GX-1000, 11-speed, PF30, 30T X-Sync ring, 94mm BCD spider
CASSETTE SRAM XG-1150, 11-speed, 10-42t
SHIFT LEVERS SRAM GX, 11-speed, trigger
REAR DERAILLEUR SRAM GX X Horizon, 11-speed, alloy cage
COCKPIT
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized, alloy, single bolt, 27.2mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized, butted 6000 alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm, 31.8mm
STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Shimano BR-M615, hydraulic
FRONT BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
REAR BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK RockShox Reba RL 29, Solo Air spring, 100mm travel, compression adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
REAR SHOCK FOX/Specialized remote Mini Brain, AUTOSAG, Brain Fade adjust I-Valve, 200x48mm

Geometry

Geometry Chart

Epic - Geometry

S M L XL
  S M L XL
Stem Length 70mm 90mm 100mm 110mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 400mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 398mm 423mm 446mm 465mm
Stack 583mm 597mm 611mm 630mm
Wheelbase 1073mm 1103mm 1131mm 1157mm
Bike Stand-Over Height 770mm 774mm 780mm 793mm
Head-Tube Length 90mm 105mm 120mm 140mm
Front-Center 633mm 661mm 691mm 717mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 82mm 82mm 82mm 82mm
B-B Height 332mm 332mm 332mm 332mm
Chain-Stay Length 439mm 439mm 439mm 439mm
Fork Length (full) 499mm 499mm 499mm 499mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 40mm 40mm 40mm 40mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Top-Tube Length (horizontal) 562mm 592mm 618mm 643mm
