Epic Comp 29
$3,300.00
Part No.

Epic Comp 29

$3,300.00
Part No.  34975
load-spinner
Epic Comp 29
Overview
Technical Specifications
Geometry
Reviews

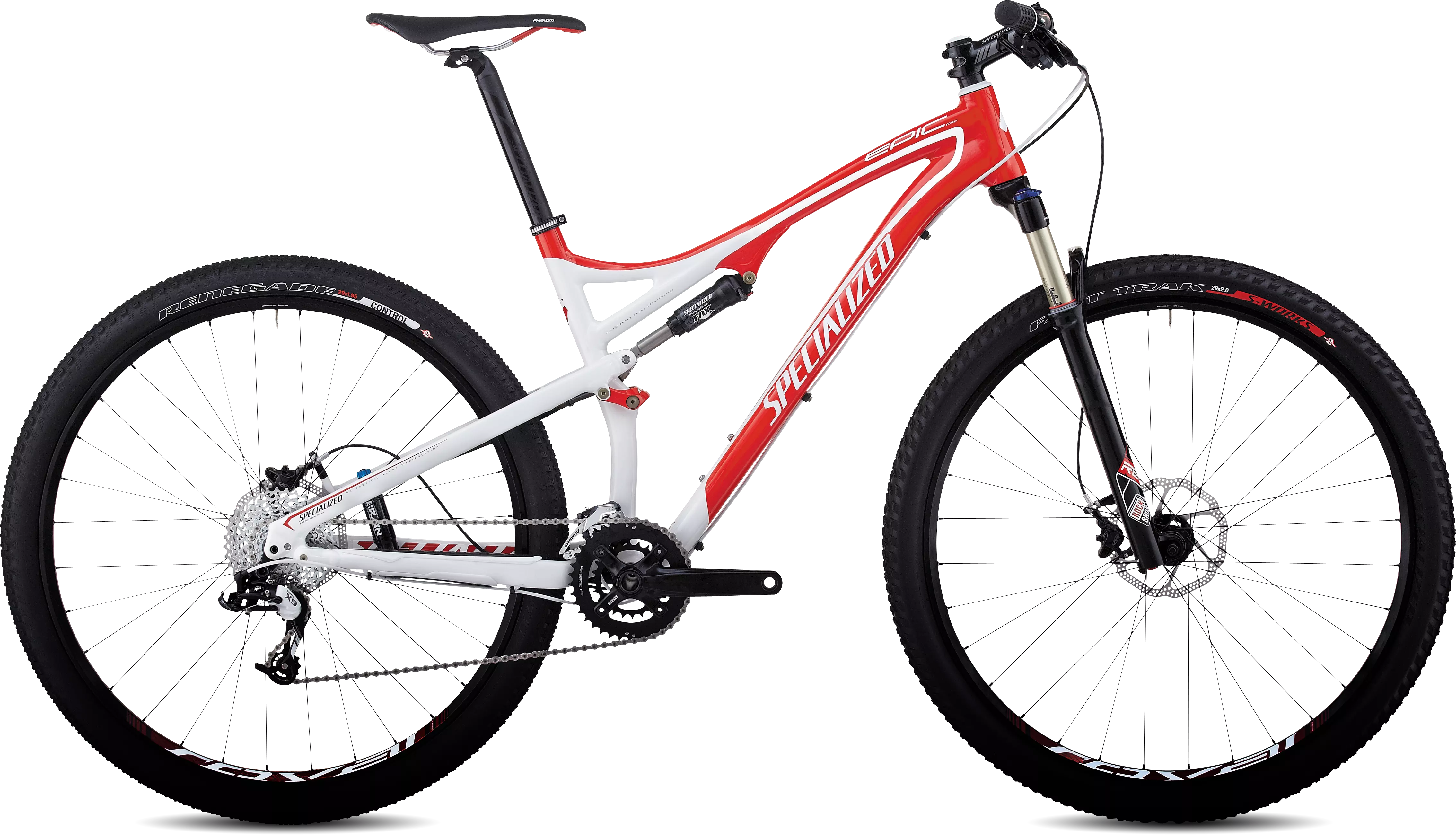

The M5 aluminum Epic Comp 29 has 100mm of travel and 29-inch wheels to smooth any cross-country terrain.
  • M5 alloy Competitive XC frame with 100mm of efficient FSR suspension features 29er-specific geometry with short chainstays, low BB, and roomy top tube for confident all-day riding and racing
  • Specialized and Fox put their heads together to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for the ultimate in racing and trail riding performance, new 2012 tune
  • RockShox Reba RL 29 fork with 100mm travel, lockout and rebound adjust, allows this 29er to charge technical terrain
  • Specialized Hi Lo disc hub has a higher flange on the disc side, which stiffens the 29er wheel in this high-stress area. Combined with 142+ spacing and sealed cartridge bearings, this wheelset punches well above its weight
  • S-Works Fast Trak 2.0", front and Renegade Control 1.95", rear 2Bliss ready, dual-compound tires deliver exceptional speed and traction, while minimizing rotating weight
  • SRAM X9 long cage, 10-speed rear derailleur is super-tough and light, yet delivers pinpoint shifts

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp size, 7050 hard anodized alloy collar, single bolt
HEADSET 1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME M5 alloy, 29"" geometry, fully manipulated frame w/ ORE DT/TT, gussetless TT (S/M), tapered HT, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Industry 2.0, (14g) stainless
RIMS Roval 29, 26mm w/ eyelets, 32h
FRONT TIRE S-Works Fast Trak, 120 TPI, 2Bliss ready aramid bead, dual-compound, 29x2.0""
REAR TIRE Specialized Renegade Control, 60 TPI, 2Bliss ready aramid bead, dual-compound, 29x1.95""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearing
CHAIN KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, GXP spindle, S: 170mm, Others: 175mm
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamp
FRONT DERAILLEUR SRAM X7,10-speed, S3 direct mount for DMD, bottom pull
CHAINRINGS 38/24
REAR DERAILLEUR SRAM X9, 10-speed, mid cage
COCKPIT
SADDLE Specialized Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm, 400mm
GRIPS Specialized lock-on, S/M: Grappler, Others: Grappler XL
HANDLEBARS Specialized XC flat, 2014 butted alloy, 680mm wide, 8º back sweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL hydraulic, tool-less reach adj., w/MatchMaker clamp
FRONT BRAKE Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor
REAR BRAKE Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK RockShox Reba RL 29, tapered alloy steerer, LO and reb adj. standard drop-outs, 100mm travel
REAR SHOCK Fox/Specialized remote Mini-Brain w/new 2012 tune, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length

Geometry

Geometry Chart

Epic - Geometry

  Sm Med LG XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm
Reach 386mm 415mm 438mm 458mm
Stack 586mm 605mm 614mm 633mm
Chainstay Length 448mm 448mm 448mm 448mm
Top Tube Length (Actual) 527mm 559mm 584mm 607mm
Ground-Top 917mm 936mm 945mm 964mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70.5° 70.5° 70.5° 70.5°
Standover Height 755mm 766mm 775mm 790mm
Wheel Base 1075mm 1109mm 1136mm 1163mm
Head Tube Height 90mm 110mm 120mm 140mm
Seat Tube Angle (Actual) - Low Setting 69.5° 69.5° 70° 70°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
