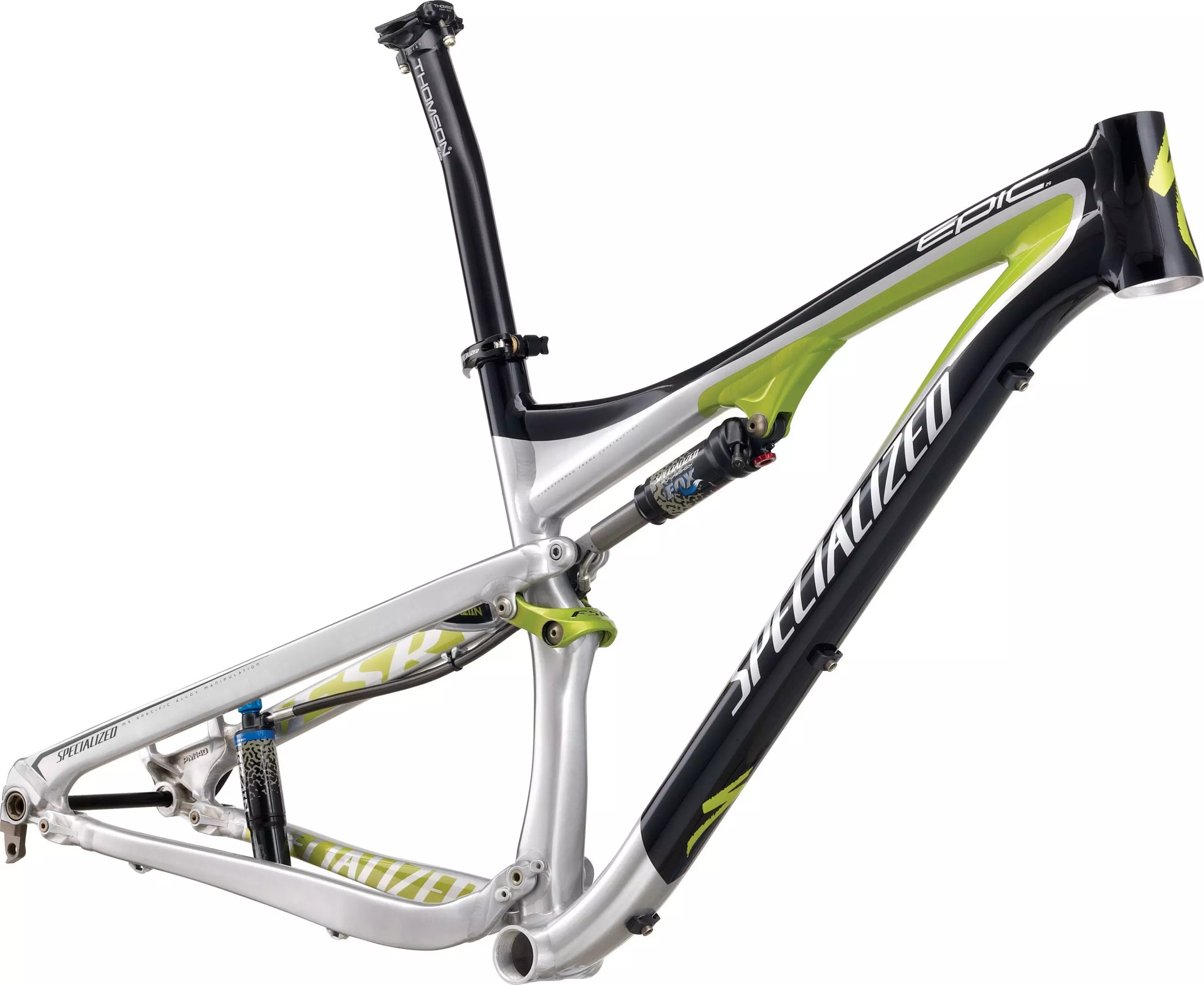

Epic 29er Frameset
Part No.

Epic 29er Frameset

Part No.  23666
load-spinner
Epic 29er Frameset
Overview
Technical Specifications
Geometry
Reviews
Start with the fastest XC chassis available, and spec the Epic 29er to your liking.
  • Thomson Elite Setback alloy post is super strong and light for worry-free bombing up or down the trails
  • Specialized Hi Lo disc hub with 142+ spacing and sealed cartridge bearings has a higher flange on the disc side, which stiffens the wheel in this high-stress area
  • 29" M5 alloy Competitive XC frame with 100mm of supple FSR suspension features 29er-specific geometry with short chainstays, low BB, and roomy top tube for confident all-day riding and racing
  • Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination

Technical Specifications

SUSPENSION
REAR SHOCK Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length
COCKPIT
SEATPOST Thomson Elite Setback w/ 12 degree clamp, 410mm
WHEELS
REAR HUB Specialized Hi Lo 142+ disc, double sealed cartridge bearing, RWS, 32h
FRAMESET
HEADSET 1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
FRAME M5 alloy, 29"" geometry, fully manipulated frame w/ ORE DT/TT, gussetless TT S/M, tapered HT, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel

Geometry

Geometry Chart

Epic - Geometry

  Sm Med LG XL
Stem Length 75mm 90mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm
Reach 386mm 415mm 438mm 458mm
Stack 586mm 605mm 614mm 633mm
Chainstay Length 448mm 448mm 448mm 448mm
Top Tube Length (Actual) 527mm 559mm 584mm 607mm
Ground-Top 917mm 936mm 945mm 964mm
Top Tube Length (Horizontal) 554mm 589mm 615mm 641mm
Head Tube Angle - Low Setting 70.5° 70.5° 70.5° 70.5°
Standover Height 755mm 766mm 775mm 790mm
Wheel Base 1075mm 1109mm 1136mm 1163mm
Head Tube Height 90mm 110mm 120mm 140mm
Seat Tube Angle (Actual) - Low Setting 69.5° 69.5° 70° 70°
Seat Tube Length - Center to Top 394mm 424mm 463mm 520mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 331mm 331mm 331mm 331mm
