Enduro SL Comp
$2,800.00
Part No.

Enduro SL Comp

$2,800.00
Part No.  22795
load-spinner
Enduro SL Comp
Overview
Technical Specifications
Geometry
Reviews

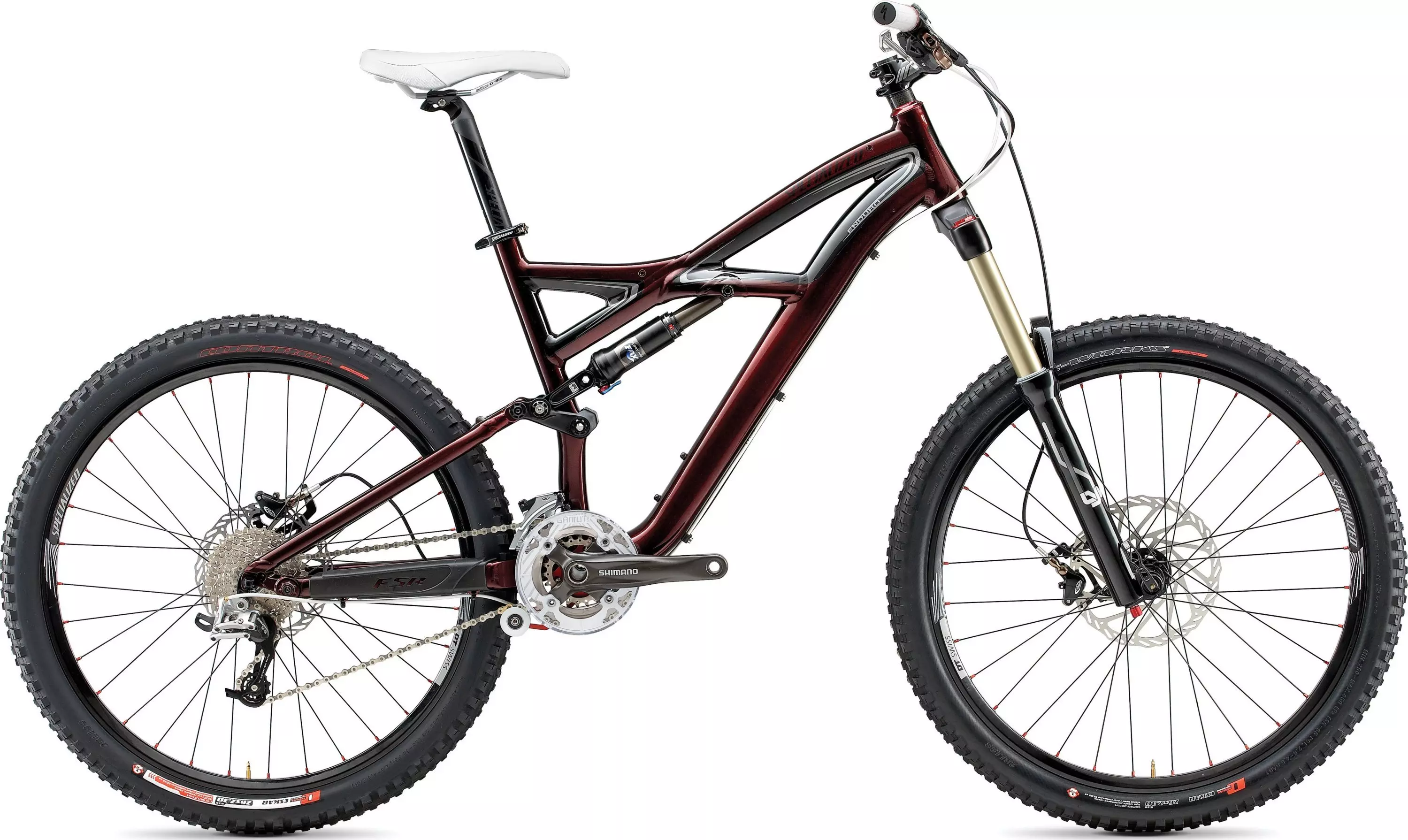

Where XC and DH collide, you'll find the lightweight Enduro SL—the most capable All Mountain bike that lets you climb without crying and rail in the technical terrain. If you want to ride the whole mountain and really own it, the Enduro's six-inch travel frame, adjustable travel fork, position-sensitive rear shock and remote-adjust seatpost give you the skills to get the job done (though you'll need a little talent on your own).
  • Custom Shimano Hollowtech II 2-piece crankset with Gamut 5/22/A36 shift guide
  • Custom DT Swiss rims with sleeve joints for increased strength without the weight penalty
  • Avid Elixir R SL lightweight hydraulic disc brakes/levers with tool-free reach adjust for superb control and modulation
  • S-Works Eskar 26 x 2.3" 2Bliss dual compound front tire with plenty of traction on the edge knobs for superb braking and traction
  • Custom Fox RP2 rear shock features external ProPedal and rebound damping control in a design that combines performance with scale-shaving weight
  • RockShox Lyrik 20mm Maxle thru-axle fork with tapered steerer tube, external rebound adjust for pitch-perfect descents and Solo Air cartridge for combined negative/positive air spring adjustability

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
HEADSET 1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower cartridge bearing
FRAME Enduro M5 alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount, replaceable derailleur hanger, 160mm travel
WHEELS
FRONT HUB Hi-Lo disc, 20mm thru-axle, 32h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss 1.8mm stainless
RIMS Custom DT Swiss E440S, 26mm, sleeved w/eyelets, 32h
FRONT TIRE S-Works Eskar, 26x2.3"", 120 TPI, tubeless ready, aramid bead, dual compound
REAR TIRE Specialized Eskar Control, 26x2.3"", 60 TPI, tubeless ready, aramid bead
DRIVETRAIN
BOTTOM BRACKET Custom Shimano integrated
CHAIN SRAM PC-971, 9-speed w/Power Link
CRANKSET Custom Shimano FC-M542, 22S/36A with Gamut shift guide. S: 170mm, others: 175mm
CASSETTE Shimano HG61, 9-speed, 11-34t
SHIFT LEVERS SRAM X-7, aluminum trigger
FRONT DERAILLEUR Shimano M665-E, SLX, top swing, dual pull for double
CHAINRINGS S22/A36
REAR DERAILLEUR SRAM X-9, 9-speed, mid cage
COCKPIT
SADDLE Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XL:143mm
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm
GRIPS Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
HANDLEBARS Specialized Enduro mid-rise bar, 7050 alloy, 31.8mm, 9 degree backsweep, 6 degree up, 680mm wide
STEM 3D forged alloy, adjustable rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
FRONT BRAKE Custom Avid Elixir R SL, alloy backed semi-metallic pads, 200mm rotor
REAR BRAKE Custom Avid Elixir R SL, alloy backed semi-metallic pads, 185mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK RockShox Lyrik Solo Air R, adjustable rebound, 20mm thru-axle w/ Maxle SL, tapered alloy steerer
REAR SHOCK Fox RP2 for Enduro. Ext reb and ProPedal

Geometry

Geometry Chart

Enduro - Geometry

S M L XL
  S M L XL
Stem Length 60mm 60mm 75mm 90mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm
Reach 404mm 431mm 457mm 477mm
Stack 577mm 587mm 605mm 623mm
Chainstay Length 419mm 419mm 419mm 419mm
Top Tube Length (Actual) 532mm 562mm 589mm 615mm
Ground-Top 927mm 937mm 955mm 973mm
Top Tube Length (Horizontal) 560mm 590mm 620mm 645mm
Head Tube Angle - Low Setting 66.5° 66.5° 66.5° 66.5°
Standover Height 756mm 761mm 773mm 801mm
Wheel Base 1120mm 1151mm 1185mm 1213mm
Head Tube Height 120mm 130mm 150mm 170mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5° 70.5°
Seat Tube Length - Center to Top 420mm 444mm 467mm 520mm
Seat Tube Angle (Effective) - Low Setting 75° 75° 75° 75°
Bottom Bracket Height - Low Setting 350mm 350mm 350mm 350mm
