Enduro SL Comp
$3,300.00
Part No.

Enduro SL Comp

$3,300.00
Part No.  22356
load-spinner
Enduro SL Comp
Overview
Technical Specifications
Geometry
Reviews

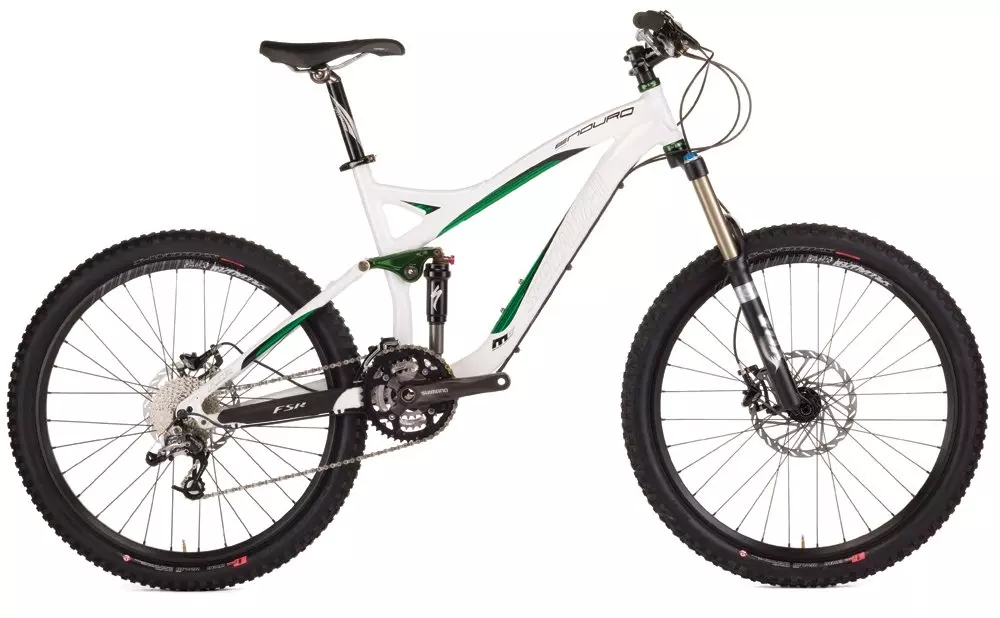

THE ENDURO® SL'S welterweight chassis, pedaling efficiency and six inches of travel let you climb without crying and rail in the technical terrain. If you want to ride the whole mountain and really own it, the Enduro SL is your best bike.
  • 32-hole DT Swiss E440S rims are custom for Specialized. 26mm width, eyelets and a sleeved joint bump up durability, but keep weight low.
  • Custom Avid Elixir R SL brakes feature full hydraulic calipers, organic pads for enhanced modulation and a big 203 mm rotor in front and 185mm in back for awesome control in fast and steep situations. Custom Avid Elixir R SL levers feature tool-free reach adjustment for enhanced comfort and control.
  • S-Works Eskar 26 x 2.3" tires feature large volume casing and dual-compound tread for awesome traction. 2Bliss technology enhances control and durability without adding weight.
  • Shimano LX Hollowtech II crank custom for Specialized. Hollow forged crankarms and integrated pipe billet bottom bracket ensure stiffness and efficiency. SG-X chainrings provide smooth, dependable shifts.
  • Specialized AFR Shock provides 150mm of air-sprung travel. Damping curve and spring rate perfectly match the telemetry of the suspension, ensuring optimal bump force management and maximum control.
  • The Fox 32 Float RL fork provides 150mm travel and compression/rebound adjust for all-mountain ripping.

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
HEADSET 1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
FRAME Enduro M5 Manipulated Alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount adj. geometry, replaceable derailleur hanger, 150mm travel
WHEELS
FRONT HUB Specialized Hi-Lo disc, 15mm thru-axle, 32h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES DT Swiss 1.8mm stainless, black, alloy nipples
RIMS Custom DT Swiss E440S, 26mm, sleeved w/eyelets, 32h
FRONT TIRE S-Works Eskar, 26x2.3"", 120 TPI, aramid tubeless ready bead, dual compound
REAR TIRE S-Works Eskar, 26x2.3"", 120 TPI, aramid tubeless ready bead, dual compound
DRIVETRAIN
BOTTOM BRACKET Shimano FC-M542
CHAIN SRAM PC-971, 9-speed w/Power Link
CRANKSET Custom Shimano FC-M542, S: 170mm, others: 175mm
CASSETTE Shimano HG61, 9-speed, 11-34t
SHIFT LEVERS SRAM X-7, aluminum trigger, 9-speed
FRONT DERAILLEUR Shimano M660 SLX, DMD, top swing, dual pull
CHAINRINGS 22S x 32A x 44A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X-9, 9-speed, mid cage
COCKPIT
SADDLE Specialized Format, hollow Cr-Mo rails, SL foam, S/M/L: 130mm XL:143mm
SEATPOST 2014 butted alloy, single bolt setback, 30.9x350/400mm
GRIPS Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL)
HANDLEBARS Specialized Enduro mid rise bar, 6066 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 660mm wide
STEM Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
FRONT BRAKE Custom Avid Elixir R SL, alloy backed organic pads, 203mm rotor
REAR BRAKE Custom Avid Elixir R SL, alloy backed organic pads, 185mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK Fox 32 Float RL, 1-1/8"" steerer, 15mm thru-axle, 150mm travel w/ compression and rebound adj.
REAR SHOCK Specialized AFR Shock w/ Spike valve, air spring, adj. rebound and low speed compression, 7.875x2.25""

Geometry

Geometry Chart

Enduro - Geometry

S M L XL
  S M L XL
Stem Length 60mm 80mm 80mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Bottom Bracket Height - High Setting 367mm 367mm 367mm 367mm
Head Tube Angle - High Setting 67.9° 67.9° 67.9° 67.9°
Handlebar Width 660mm 660mm 660mm 660mm
Chainstay Length 421mm 421mm 421mm 421mm
Seat Tube Angle (Effective) - High Setting 73.1° 73.1° 73.1° 73.1°
Seat Tube Angle (Actual) - High Setting 72.8° 72.8° 72.8° 72.8°
Top Tube Length (Actual) 545mm 574mm 602mm 630mm
Top Tube Length (Horizontal) 559mm 591mm 620mm 647mm
Head Tube Angle - Low Setting 67° 67° 67° 67°
Standover Height 742mm 748mm 762mm 782mm
Wheel Base 1115mm 1147mm 1177mm 1205mm
Head Tube Height 102mm 108mm 128mm 150mm
Seat Tube Angle (Actual) - Low Setting 71.9° 71.9° 71.9° 71.9°
Seat Tube Length - Center to Top 421mm 444mm 483mm 533mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 356mm 356mm 356mm 356mm
