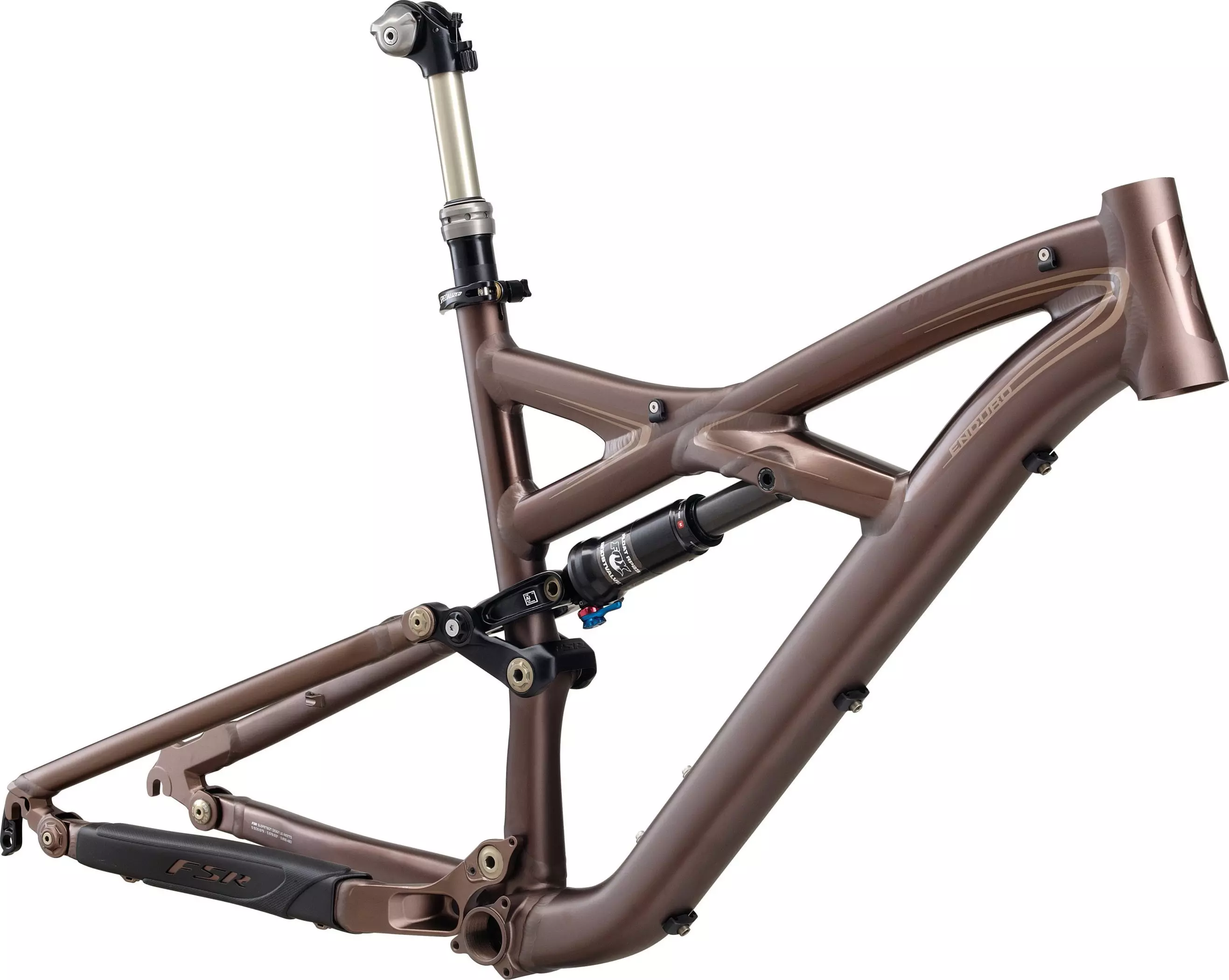

Enduro M5 Frame
Overview
Technical Specifications
Geometry
Reviews
Already got the fork, wheels, and parts figured out but want to upgrade your all mountain frame?
  • Fully manipulated M5 alloy FSR frame with ORE tubing is the centerpiece of this incredibly versatile 160mm-travel design with sealed cartridge bearing pivots, ISCG mount, and replaceable derailleur hanger
  • Specialized Command Post is a 3-position adjustable-height seatpost with remote lever for on-the-fly changes to riding position, 125mm travel
  • Custom Fox RP23-S shock features position-sensitive Boost Valve damping, low-speed compression damping with 3-way adjustable “open” and “climbing” settings - meaning, great bump performance and solid climbing efficiency

Technical Specifications

SUSPENSION
REAR SHOCK Fox RP23-S with Boost Valve, reb and separate climbing setting and custom 3-position low-speed comp adj., 8.5 x 2.125""
COCKPIT
SEATPOST Specialized Command Post, 3 position, 125mm adjustable height w/air spring, remote operated, single bolt head
WHEELS
FRONT HUB NA
FRAMESET
HEADSET 1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
FRAME M5 alloy, fully manipulated frame w/ ORE TT/ DT, tapered and forged HT, ISCG mount, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm travel

Geometry

Geometry Chart

- Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 60mm 60mm 75mm 90mm
Seatpost Length 380mm 380mm 380mm 380mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 404mm 431mm 457mm 477mm
Stack 577mm 587mm 605mm 623mm
Chainstay Length 419mm 419mm 419mm 419mm
Top Tube Length (Actual) 532mm 562mm 589mm 615mm
Ground-Top 927mm 937mm 955mm 973mm
Top Tube Length (Horizontal) 560mm 590mm 620mm 645mm
Head Tube Angle - Low Setting 66.5° 66.5° 66.5° 66.5°
Standover Height 756mm 761mm 773mm 801mm
Head Tube Height 120mm 130mm 150mm 170mm
Wheel Base 1120mm 1151mm 1185mm 1213mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5° 70.5°
Seat Tube Angle (Effective) - Low Setting 75° 75° 75° 75°
Seat Tube Length - Center to Top 420mm 444mm 467mm 520mm
Bottom Bracket Height - Low Setting 350mm 350mm 350mm 350mm
