Enduro LTD
2022 Enduro LTD
The Enduro LTD combines peerless downhill performance with surprisingly-quick acceleration. The LTD delivers blistering speed, mega-travel length, and Öhlins suspension that's big on performance. Get ready to go fast.
Technical Specifications
FRAMESET
Frame
FACT 11m carbon chassis and rear-end, S-Sizing Enduro Race Geometry, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 170mm of travel
Seat Binder
Alloy, 38.6mm
SWAT
COCKPIT
Stem
Deity, 35.0mm
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Diety, Supracush, Black
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S2:150mm, S3/S4:180mm, S5: 210mm)
BRAKES
Front Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
SRAM GX Eagle, DUB, 170mm
Chainrings
30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims
Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Swiss Competition Race
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Inner Tubes
TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Suspension

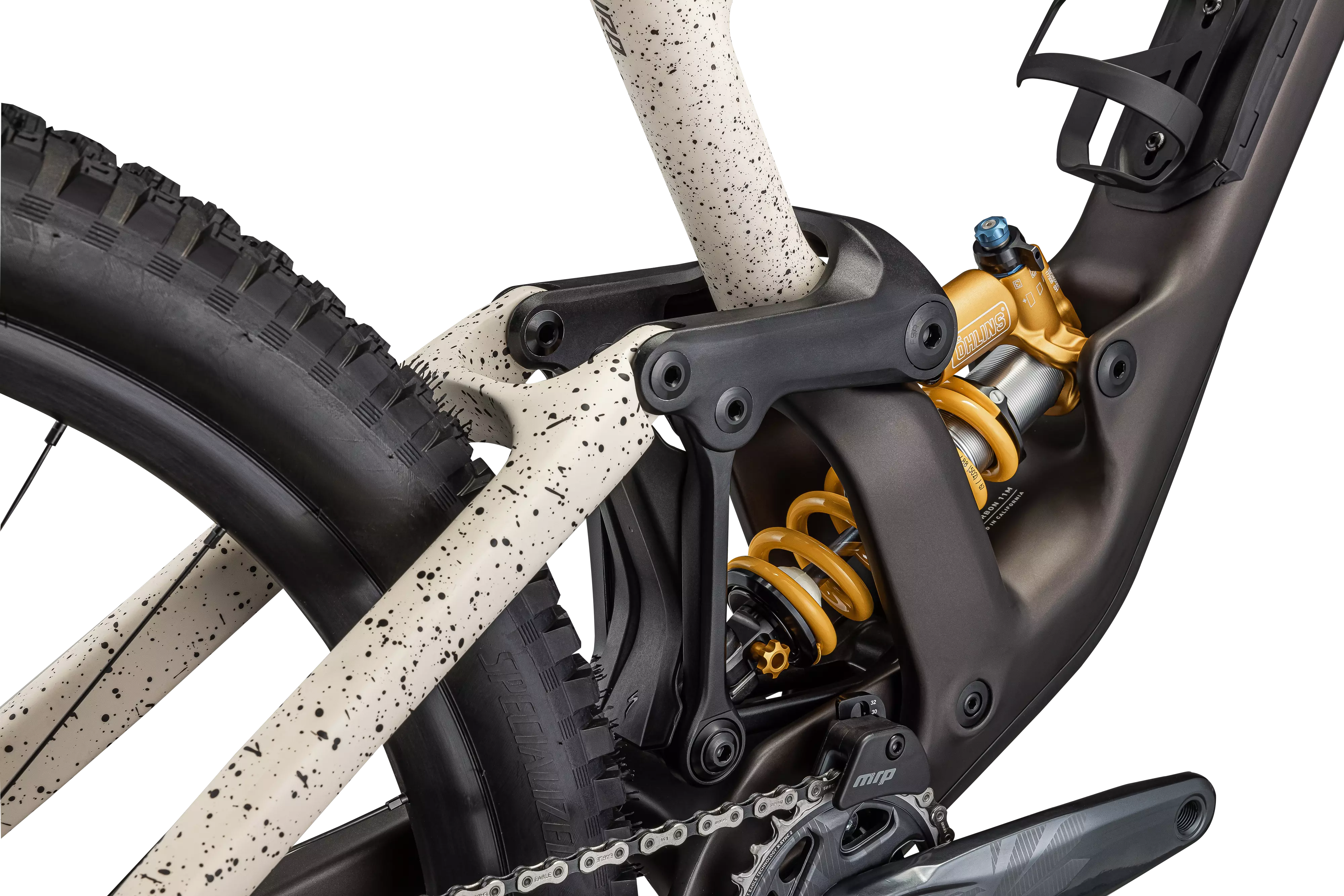

Rear Shock
Öhlins TTX 22 Coil, Rx Trail Tune, external rebound and compression adjustment, 205x60mm
Fork
Öhlins RXF38 m.2, TTX 18 damper, 15x110mm, 44mm offset, 170mm of travel
ACCESSORIES
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | S5 | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Seatpost Length | 150mm | 180mm | 180mm | 210mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 35mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack (low BB) | 616mm | 620mm | 629mm | 638mm |
| Reach (low BB) | 437mm | 464mm | 487mm | 511mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 120mm |
| Head-Tube Angle (low BB) | 63.9° | 63.9° | 63.9° | 63.9° |
| Head-Tube Angle | 64.3mm | 64.3mm | 64.3mm | 64.3mm |
| B-B Height (low BB) | 347mm | 347mm | 347mm | 347mm |
| B-B Height | 354mm | 354mm | 354mm | 354mm |
| B-B Drop (low BB) | 28mm | 28mm | 28mm | 28mm |
| B-B Drop | 21mm | 21mm | 21mm | 21mm |
| Trail (low BB) | 132mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 581mm | 581mm | 581mm | 581mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
| Front-Center (low BB) | 777mm | 806mm | 833mm | 862mm |
| Chain-Stay Length | 442mm | 442mm | 442mm | 442mm |
| Wheelbase | 1217mm | 1246mm | 1274mm | 1302mm |
| Seat-Tube Length | 400mm | 420mm | 440mm | 465mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° |
| Top Tube Length (Horizontal) | 591mm | 619mm | 644mm | 670mm |
