Enduro Expert
$4,400.00
Part No.

Enduro Expert

$4,400.00
Part No.  23318
load-spinner

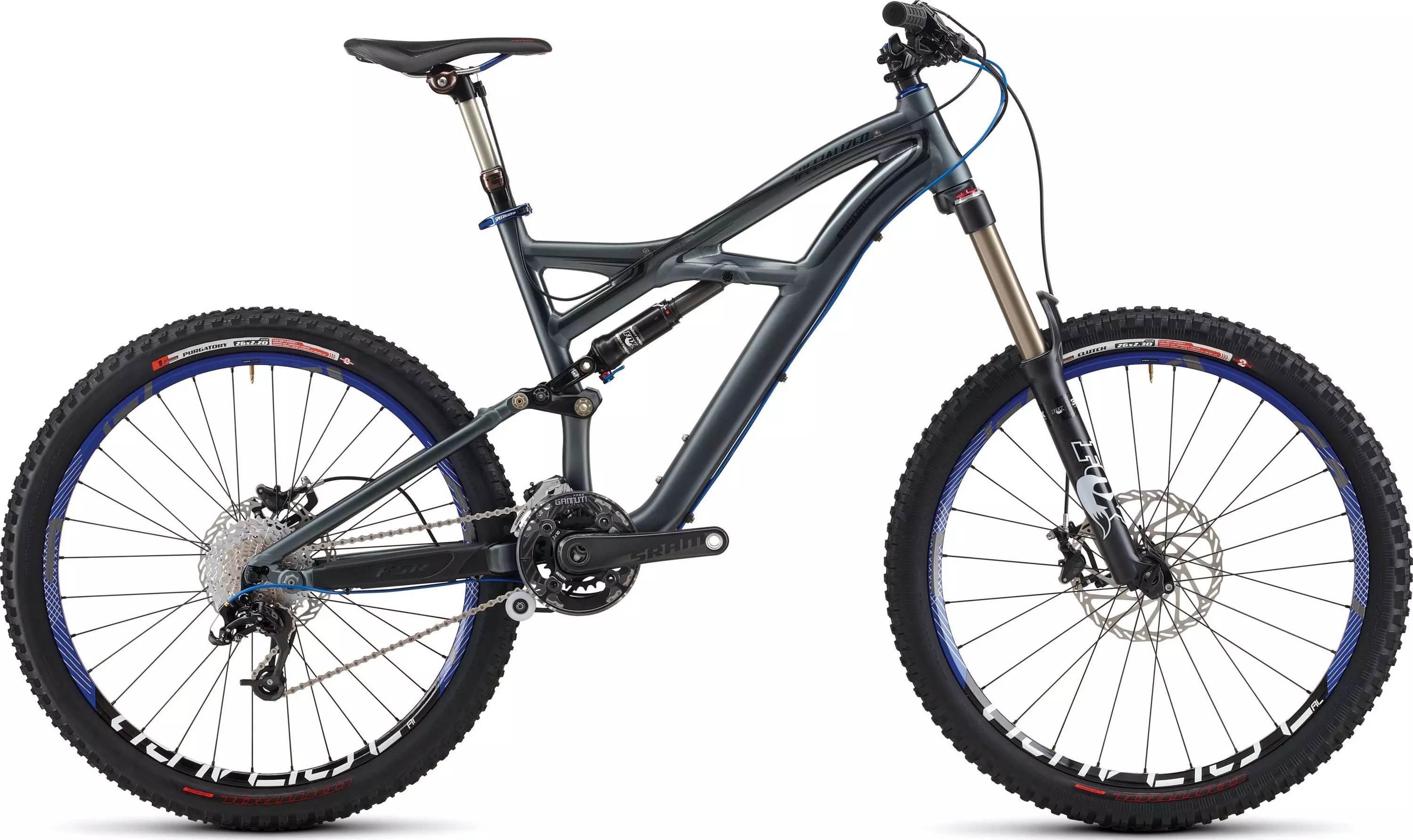

Enduro Expert
Overview
Technical Specifications
Geometry
Reviews
FSR rear suspension paired with Fox shocks front and rear guarantees the Expert equally excellent small bump performance and big hit absorption.
  • Newly revamped for increased stiffness, the Roval Traverse AL all-mountain wheelset, with DT Swiss internals and 20mm thru-axle, offers mountain-leveling durability and light weight
  • Super light, custom SRAM Carbon S-2200 10-speed double crankset with GXP spindle, Gamut shift guide and removable spider for stiffness, performance, and durability
  • Specialized Command Post is a 3-position adjustable-height seatpost with remote lever for on-the-fly changes to riding position, 125mm travel
  • Custom Fox RP23-S shock features position-sensitive Boost Valve damping, low-speed compression damping with 3-way adjustable “open” and “climbing” settings - meaning, great bump performance and solid climbing efficiency
  • Buttery smooth Fox 36 Float R 160mm fork with 20mm thru-axle, tapered alloy steerer, and rebound adjust is stiff, super light, and strong for all-mountain madness
  • Avid Elixir CR SL lightweight hydraulic disc brakes/levers with alloy backed semi-metallic pads and tool-free reach and pad contact adjustment for superb control and modulation

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
HEADSET 1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
FRAME M5 alloy, fully manipulated frame w/ ORE TT/ DT, tapered and forged HT, ISCG mount, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm travel
WHEELS
FRONT HUB Roval Traverse AL, alloy, 20mm thru-axle, 27h
REAR HUB Roval Traverse AL, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Competition 1.8/1.6mm stainless
RIMS Roval Traverse AL, alloy disc, 26mm, 27/32h
FRONT TIRE Specialized Clutch Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.3""
REAR TIRE Purgatory Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.2""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearing
CHAIN KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET Custom SRAM Carbon S-2200, 10-speed AM double, GXP spindle, removeable spider, Gamut Shift Guide, S: 170mm, others: 175mm
CASSETTE Shimano HG81, 10-speed, 11-36t
SHIFT LEVERS SRAM X.9, 10-speed, aluminum trigger
FRONT DERAILLEUR SRAM X.7, 10-speed, S1 direct mount for DMD, bottom pull
CHAINRINGS 36A x 24A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X.0, 10-speed, mid cage
COCKPIT
SADDLE Specialized BG Henge Comp, hollow Cr-Mo rails, 143mm width
SEATPOST Specialized Command Post, 3 position, 125mm adjustable height w/air spring, remote operated, single bolt head
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
HANDLEBARS Specialized Enduro low-rise bar, 7050 alloy, 720mm wide, 8 degree backsweep, 6 degree up, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
BRAKES
BRAKE LEVERS Custom Avid Elixir CR SL, hydraulic disc, tool-less reach and pad contact adj., alloy lever blade
FRONT BRAKE Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 203mm rotor
REAR BRAKE Custom Avid Elixir CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 185mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK Fox 36 Float R, air spring, tapered alloy steerer, reb adj., 20mm thru-axle, 160mm
REAR SHOCK Fox RP23 with Boost Valve, reb and separate climbing setting and custom 3-position low-speed comp adj., 8.5x2.125""

Geometry

Geometry Chart

Enduro - Geometry

S M L XL
  S M L XL
Stem Length 60mm 60mm 75mm 90mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 380mm 380mm 380mm 380mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 404mm 431mm 457mm 477mm
Stack 577mm 587mm 605mm 623mm
Chainstay Length 419mm 419mm 419mm 419mm
Top Tube Length (Actual) 532mm 562mm 589mm 615mm
Ground-Top 927mm 937mm 955mm 973mm
Top Tube Length (Horizontal) 560mm 590mm 620mm 645mm
Head Tube Angle - Low Setting 66.5° 66.5° 66.5° 66.5°
Standover Height 756mm 761mm 773mm 801mm
Wheel Base 1120mm 1151mm 1185mm 1213mm
Head Tube Height 120mm 130mm 150mm 170mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5° 70.5°
Seat Tube Length - Center to Top 420mm 444mm 467mm 520mm
Seat Tube Angle (Effective) - Low Setting 75° 75° 75° 75°
Bottom Bracket Height - Low Setting 350mm 350mm 350mm 350mm
