Enduro Expert EVO
Overview
Technical Specifications
Geometry
Reviews

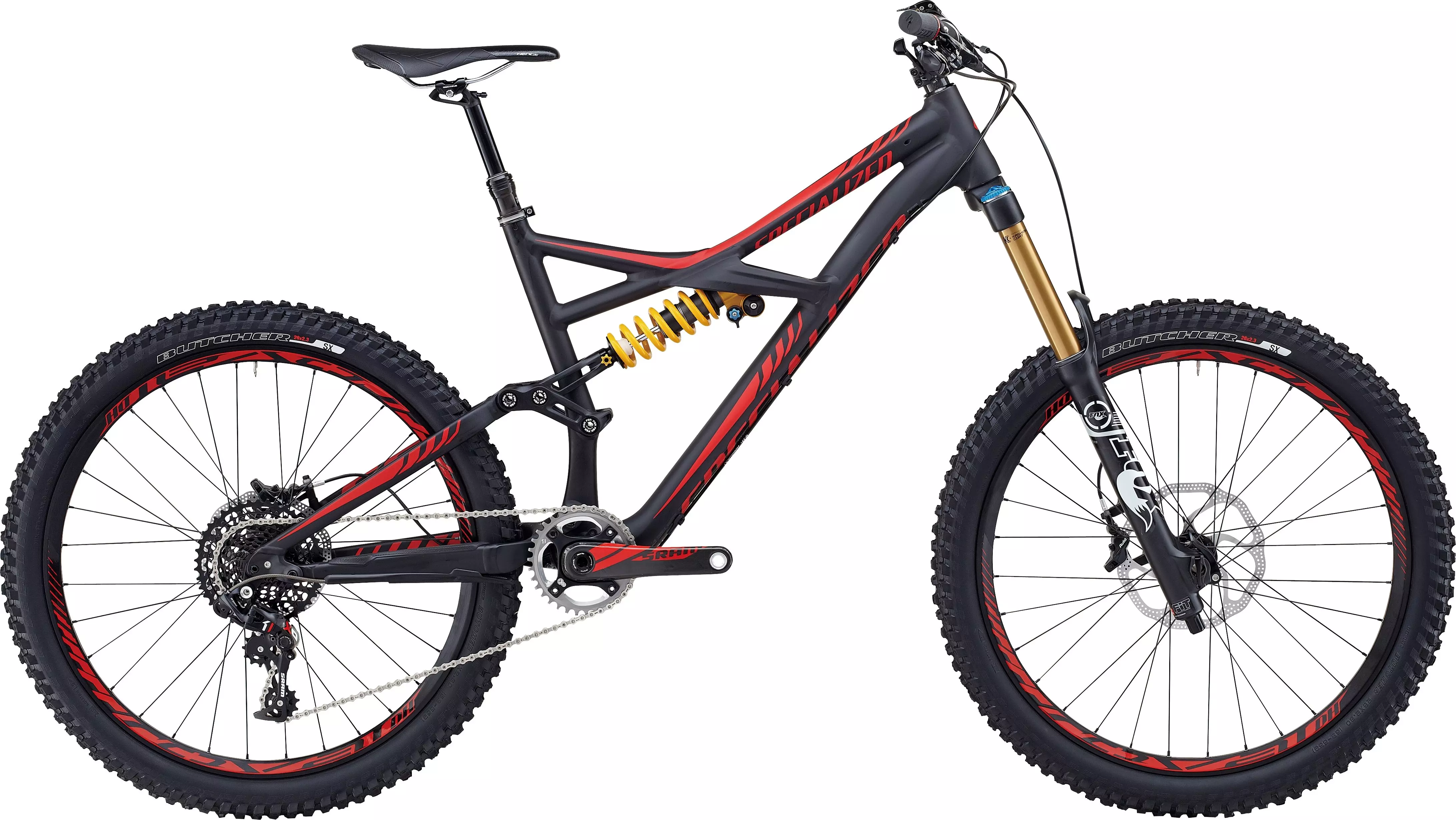

The 180mm-travel M5 aluminum Enduro FSR Expert EVO is an all-mountain machine catered to aggressive descending. Featuring patented Öhlins TTX22M Twin Tube shock, Fox 36 Van R and custom Avid Elixir 7 Trail hydraulic disc brakes the Enduro FSR Expert EVO strikes the perfect harmony between downhill and trail bikes.
  • The fully manipulated M5 alloy FSR frame with ORE tubing is the centerpiece of this incredibly versatile 180mm-travel design, featuring sealed cartridge bearing pivots, 142+ dropouts, ISCG '05 mount, and replaceable derailleur hanger
  • In a groundbreaking partnership, Specialized and Öhlins suspension have teamed up to develop the best performing bike and shock combination. The TTX22M shock uses Öhlins patented twin-tube design to separate compression from rebound
  • FOX 36 Van RC2 Kashima 180mm coil-sprung fork with 20mm thru-axle, tapered alloy steerer, compression and preload and rebound adjust for All-Mountain shredding and aggressive descending
  • Roval Traverse All-Mountain wheelset with DT Swiss spokes, 20mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and tubeless-ready performance
  • Specialized Butcher SX 2.3", dual compound front tire for premium traction on challenging terrain
  • Custom SRAM S-2200 carbon All-Mountain crankset with 11-speed gearing is built for strong, lightweight performance
  • New SRAM Type 2 X0 mid cage 11-speed rear derailleur provides crisp and reliable gear changes
  • All-new, hidden Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard anodized alloy collar, single bolt, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME M5 aluminum, EVO geometry, tapered headtube, PF30 BB, ISCG '05 mount, internal Command Post IR routing, 142+ dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
REAR HUB Custom DT Swiss, Star Ratchet, XX1 driver body, 142mm, 32h
SPOKES DT Industry Stainless, 3X front/rear 2.0mm
RIMS Roval DH 26, alloy disc, 23mm internal width, 32h
FRONT TIRE Specialized Butcher SX, 2Bliss Ready, 26x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE Specialized Butcher SX, 2Bliss Ready, 26x2.3"", foldable aramid bead, dual-compound, 60TPI
DRIVETRAIN
BOTTOM BRACKET SRAM PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM X01, 11-speed, hollow plates/pins, PowerLink
CRANKSET Custom SRAM carbon S-2200, 34T XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CASSETTE SRAM X01, 11-speed, 10-42
SHIFT LEVERS SRAM X01, 11-speed, trigger
CHAINRINGS 34T
REAR DERAILLEUR SRAM X01 Type 2, 11-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
GRIPS Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
HANDLEBARS Specialized Demo, low-rise, 7050 alloy, 780mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Avid Elixir 7 Trail, hydraulic disc, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, 200mm rotor
REAR BRAKE Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, 180mm rotor
SUSPENSION
FORK FOX 36 Van RC2, Kashima coating, coil spring, tapered alloy steerer, high/low speed comp and reb adj., 20mm thru-axle, 180mm travel
REAR SHOCK Custom Ohlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj., 8.75x2.5"", S: 76x434lb, M: 84x479lb, L: 92x525lb

Geometry

Geometry Chart

Enduro - Geometry

S M L
  S M L
Stem Length 40mm 40mm 40mm
Crank Length 170mm 175mm 175mm
Seatpost Length 380mm 425mm 425mm
Handlebar Width 750mm 750mm 750mm
Seat Tube Angle (Effective) 75° 75° 75°
Reach 410mm 430mm 460mm
Stack 589mm 598mm 607mm
Chainstay Length 419mm 419mm 419mm
Head Tube Angle 65° 65° 65°
Top Tube Length (Actual) 535mm 556mm 585mm
Top Tube Length (Horizontal) 568mm 590mm 623mm
Standover Height 740mm 747mm 756mm
Wheel Base 1153mm 1177mm 1211mm
Head Tube Height 110mm 120mm 130mm
Seat Tube Angle (Actual) 69.5° 69.5° 69.5°
Seat Tube Length - Center to Top 396mm 430mm 458mm
Bottom Bracket Height 350mm 350mm 350mm
