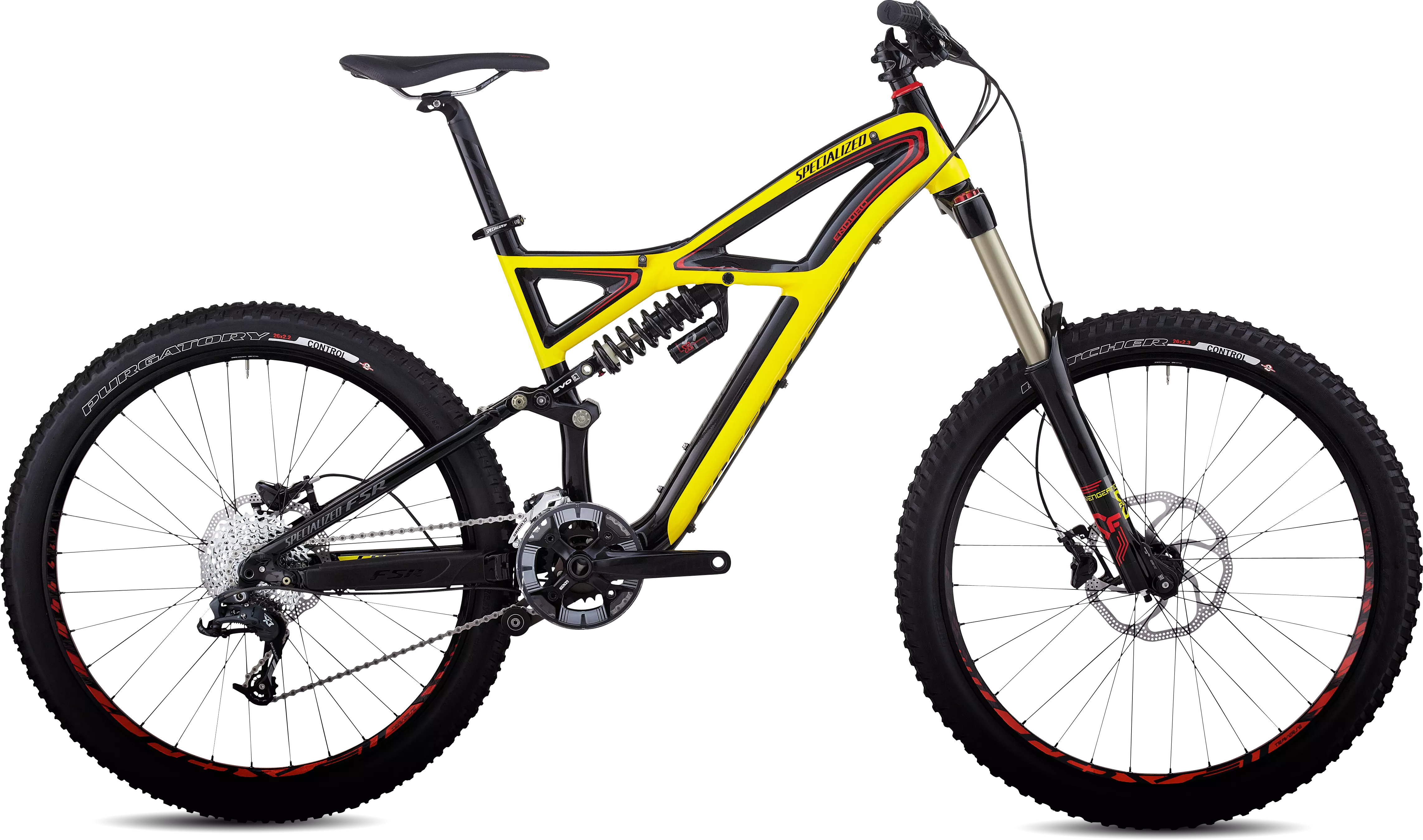

2012 Enduro EVO

1 Reviews

The 160mm-travel M5 aluminum Enduro EVO is an all-mountain machine catered to aggressive…

Color:

Gloss Yellow/Black/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The 160mm-travel M5 aluminum Enduro EVO is an all-mountain machine catered to aggressive descending. Equipped with a custom X-Fusion Vector R coil shock, X-Fusion Vengeance coil-sprung fork, and custom Avid Elixir 5 SL hydraulic disc brakes.

Fully manipulated M5 alloy FSR frame with ORE tubing is the centerpiece of this incredibly versatile 160mm-travel design with sealed cartridge bearing pivots, 142mm-wide dropouts, ISCG mount, and replaceable derailleur hanger
Custom X-Fusion Vector R coil shock with adjustable rebound works with the bike's FSR design to keep the rear wheel planted for maximum traction
X-Fusion Vengeance coil-sprung fork with tapered alloy steerer tube, adjustable rebound control and 20mm thru-axle makes a plush fork that tracks through technical terrain
The 750mm-wide Specialized DH low-rise handlebar is mega wide to control the toughest conditions
SRAM 10-speed 11-36t cassette compliments the 2x10 all-mountain chainrings
Custom SRAM S-1250 AM double crankset with GXP spindle and Gamut shiftguide for high-performance chain retention
Roval 26 all-mountain rims mated to Specialized Hi Lo hubs, 20mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and affordable package
2Bliss ready Specialized Butcher Control 2.3" dual-compound front tire for premium cornering, Purgatory Control 2.2" rear tire for lightweight grip in intermediate conditions

Technical Specifications

FRAMESET

FRAME

M5 alloy, fully manipulated frame w/ ORE TT/ DT, tapered and forged HT, ISCG mount, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black

SUSPENSION

REAR SHOCK

Custom X-Fusion Vector R, coil over w/piggy back, adj. rebound, Spring rate S: 450, M: 500, L: 550, XL: 600

FORK

X-Fusion Vengeance, coil spring, tapered alloy steerer, reb adj., 20mm thru-axle, 170mm travel

WHEELS

RIMS

Roval 26, 28mm w/ eyelets, 32h

FRONT HUB

Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h

REAR HUB

Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h

FRONT TIRE

Specialized Butcher Control, 60 TPI, 2Bliss Ready, aramid bead, dual-compound, 26x2.3""

REAR TIRE

Specialized Purgatory Control, 60 TPI, 2Bliss Ready aramid bead, dual compound, 26x2.2""

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, S1 direct mount for DMD

REAR DERAILLEUR

SRAM X7, 10-speed, mid cage

SHIFT LEVERS

SRAM X5, 10-speed, trigger

CASSETTE

SRAM PG 10-30, 10-speed, 11-36t

CHAIN

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

CRANKSET

Custom SRAM S-1250, 9-speed AM double, GXP spindle, with shift guide, S: 170mm, others: 175mm

BOTTOM BRACKET

SRAM GXP, outboard bearing

COCKPIT

SEATPOST

2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 60, L: 75 and XL: 90

HANDLEBARS

Specialized DH low-rise bar, 6061 alloy, 750mm wide, 8º backsweep, 6º upsweep, 31.8mm

GRIPS

Specialized lock-on, S/M: Grappler, Others: Grappler XL

SADDLE

Henge Comp, hollow Cr-Mo rails, 143mm width

BRAKES

FRONT BRAKE

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor, 200mm

REAR BRAKE

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor, 185mm

BRAKE LEVERS

Avid Elixir 5 SL hydraulic

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	939mm	949mm	967mm	985mm
Bottom Bracket Height - Low Setting	352mm	352mm	352mm	352mm
Top Tube Length (Horizontal)	560mm	590mm	620mm	645mm
Head Tube Height	120mm	130mm	150mm	170mm
Head Tube Angle - Low Setting	66.3°	66.3°	66.3°	66.3°
Seat Tube Angle (Actual) - Low Setting	70.3°	70.3°	70.3°	70.3°
Seat Tube Angle (Effective) - Low Setting	74.8°	74.8°	74.8°	74.8°
Top Tube Length (Actual)	532mm	562mm	589mm	615mm
Seat Tube Length - Center to Top	420mm	444mm	467mm	520mm
Wheel Base	1120mm	1151mm	1185mm	1213mm
Standover Height	756mm	761mm	773mm	801mm
Stack	587mm	597mm	615mm	633mm
Reach	404mm	431mm	457mm	477mm
Chainstay Length	419mm	419mm	419mm	419mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	60mm	75mm	90mm
Seatpost Length	380mm	380mm	380mm	380mm
