Enduro Comp 650b
$3,600.00
Part No.

Enduro Comp 650b

$3,600.00
Part No.  65258
load-spinner
Enduro Comp 650b
Overview
Technical Specifications
Geometry
Reviews

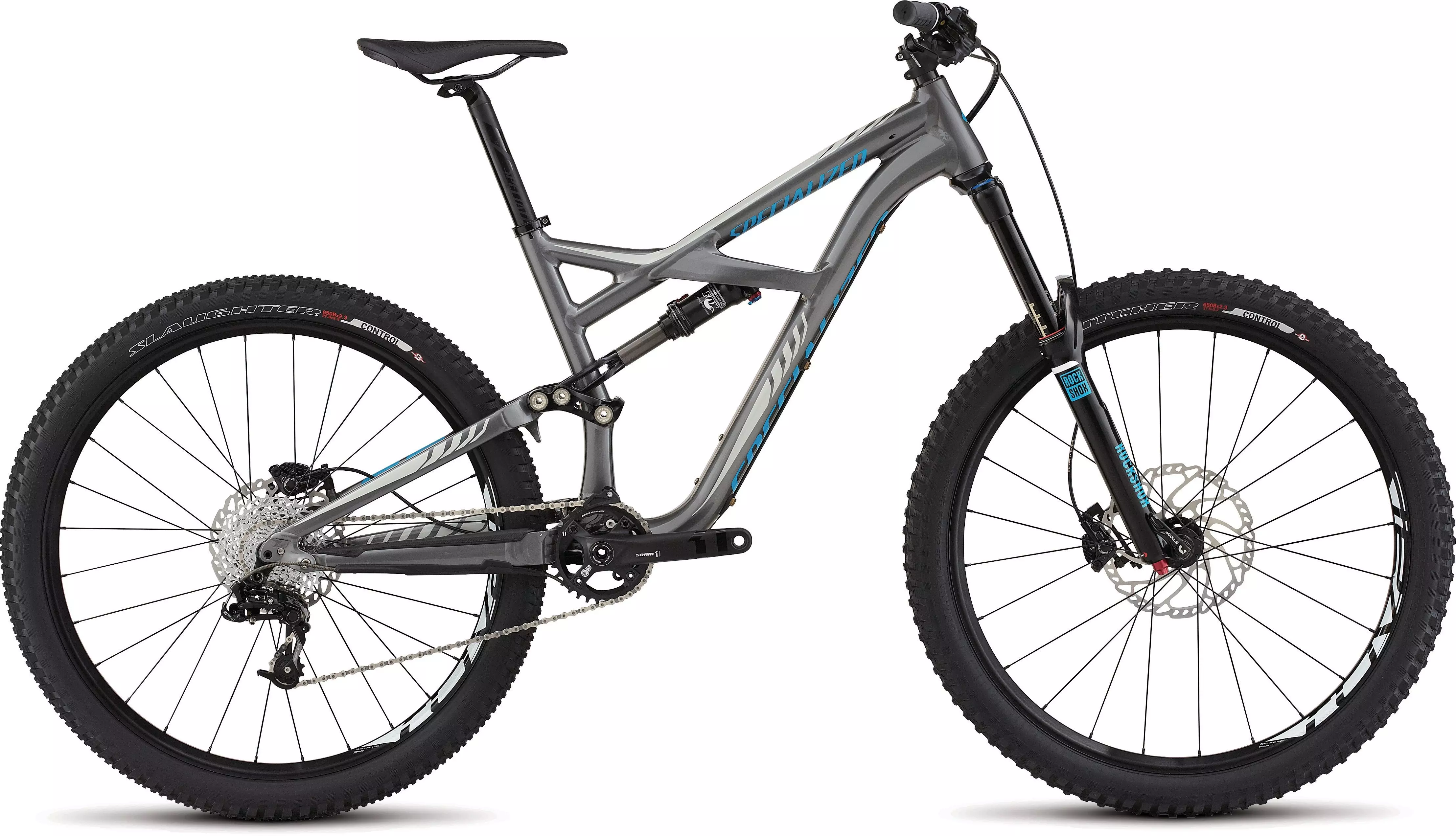

The Enduro Comp features an M5 alloy frame, 650b wheels, 165mm of travel, custom FOX Float CTD Evolution shock with AUTOSAG, and Shimano Deore hydraulic disc brakes. Get some!
  • SRAM X9 Type 2, 10-speed, mid-cage rear derailleur for lightweight, pinpoint shifts
  • Shimano Deore hydraulic disc brakes for total control and stopping power
  • Roval 650b rims w/ Hi Lo hubs are lightweight and durable for smooth handling at speed
  • M5 alloy frame w/ All-Mountain geometry and 165mm travel for pure capability
  • Custom Fox Float CTD Evolution Series shock w/ AUTOSAG for premium on-trail performance
  • SRAM X1 11-speed, PF30 crankset for optimal power and efficiency
  • RockShox Pike RC 160mm-travel fork w/ 15mm axle is tuned to charge technical terrain
  • Aggressive tread and lightweight Specialized Butcher Control front tire
  • Versatile and lightweight Slaughter Control tire

Technical Specifications

FRAMESET
SEAT BINDER Specialized 7050 alloy, single bolt, 34.9mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME M5 aluminum, 650b geometry, tapered headtube, PF30 BB, ISCG '05 mount, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 165mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 24h
REAR HUB Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 28h
INNER TUBES Standard, presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval Fattie 650b, alloy disc, 29mm inner width, 24/28h
FRONT TIRE Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
REAR TIRE Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET SRAM X1 1000, PF30, X-Sync ring, 94mm BCD spider
CASSETTE SRAM PG-1030, 10-speed, 11-36
SHIFT LEVERS SRAM X7, 10-speed, w/ Matchmaker clamp
REAR DERAILLEUR SRAM X9 Type 2, 10-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized, alloy, single bolt, 30.9mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
HANDLEBARS Specialized All-Mountain, low rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Shimano Deore BL-M615, hydraulic, alloy lever
FRONT BRAKE Shimano Deore BR-M615, hydraulic disc, metallic pads, 160mm rotor
REAR BRAKE Shimano Deore BR-M615, hydraulic disc, Ice Tech pads
ACCESSORIES
PEDALS Resin test ride, w/ toe clips, CEN std.
SUSPENSION
FORK RockShox Pike RC 650b, Solo Air spring, tapered alloy steerer, w/ compression, rebound adj., 15mm thru-axle, 160mm travel
REAR SHOCK Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 216x57mm

Geometry

Geometry Chart

Enduro - Geometry

S M L
  S M L
Stem Length 60mm 60mm 75mm
Crank Length 170mm 175mm 175mm
Seatpost Length 380mm 425mm 425mm
Handlebar Width 750mm 750mm 750mm
Top Tube Length, Horizontal 546mm 585mm 610mm
Reach 386mm 421mm 443mm
Stack 584mm 594mm 603mm
Bottom Bracket Drop 2mm 2mm 2mm
Chainstay Length 422mm 422mm 422mm
Top Tube Length, Actual 508mm 545mm 571mm
Head Tube Angle 65.5° 65.5° 65.5°
Head Tube Length 110mm 120mm 130mm
Seat Tube Angle, Effective 74.7° 74.6° 74.5°
Seat Tube Angle, Actual 68.5° 68.5° 69.5°
Seat Tube Length, Center to Top 393mm 425mm 463mm
Standover Height 766mm 772mm 780mm
Wheel Base 1121mm 1160mm 1188mm
Bottom Bracket Height 352mm 352mm 352mm
