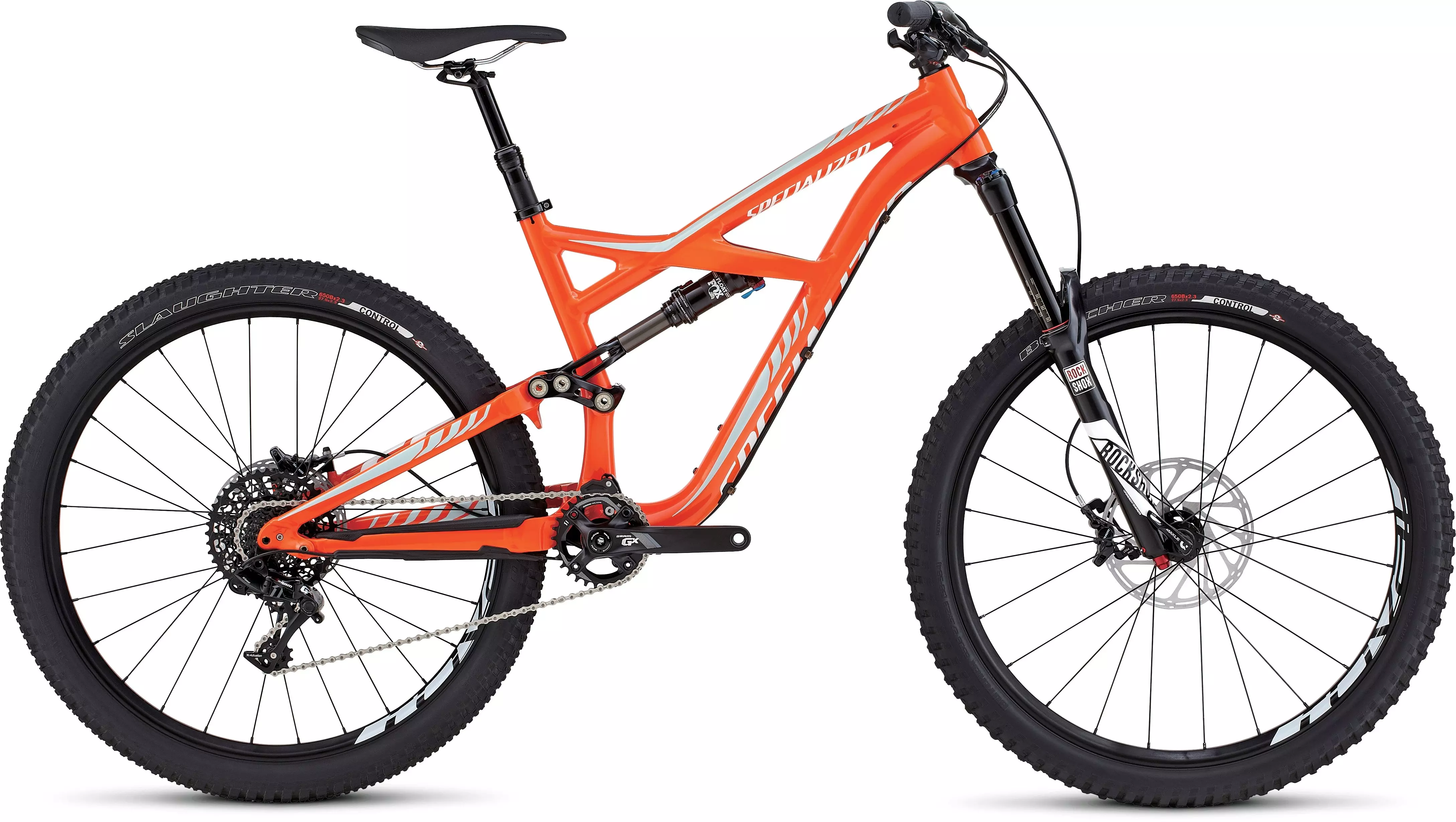

Enduro Comp 650b
$3,400.00
Part No.

Enduro Comp 650b

$3,400.00
Part No.  106331
load-spinner
Enduro Comp 650b
Overview
Technical Specifications
Geometry
Reviews
Nimble, playful, capable—however you want to describe the perfect all mountain bike, the Enduro FSR Comp 29 embodies it. It features a M5 aluminum construction that's built off our 650b Geometry. Along these lines, the frame gets a roomy top tube, the shortest possible chainstays, a low bottom bracket, and a slacker head tube than what's found on the 29er—all to perfectly blend climbing and descending characteristics together. This Enduro also includes plenty of travel, 160mm at the front and 165mm at the rear, in order to increase control over small bumps and big hits alike. At the build kit, we spec'd for reliable performance, including a RockShox Pike RC 650b fork and a custom FOX FLOAT Performance DPS rear shock for a supremely plush suspension setup, a one-by SRAM drivetrain with a wide range of gears, and a Command Post IRcc dropper with up to 10 middle positions. It's agile, capable, and ready for the whole mountain.
  • RockShox Pike RC 650b fork features a 15mm Maxle Ultimate thru-axle, compression adjust, and 160mm of plush air-sprung travel to take on big hits and bumpy terrain with supreme confidence and efficiency.
  • M5 alloy has bee paired with our 650b Geometry to form a frame that's quite literally capable of everything. The material featured here is light, stiff, and durable, while the geometry and smaller wheel size lend themselves perfectly to playful riding styles and jumps, speeding up climbs, and pinning it through corners. You'll also find an ISCG '05 mount for chain guides, internal Command Post IR routing, and sealed cartridge bearing pivots to reduce maintenance over time.
  • 2Bliss 650bx2.3" Butcher Control tire at the front has prominent shoulder knobs that ravenously grip in any condition, while the center tread is low for minimal rolling resistance. Meanwhile, we positioned a 2Bliss 650bx2.3" Purgatory Control at the rear for its aggressive tread and stiff sidewall—ensuring maximum traction through any terrain.
  • FOX FLOAT Performance DPS rear shock features AUTOSAG for easy set up and 165mm of travel for plush performance over any type of terrain.
  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents

Technical Specifications

DRIVETRAIN
CHAIN KMC X11L, 11-speed, w/ reusable MissingLink
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CRANKSET SRAM GX-1000, 11-speed, PF30, 28T X-Sync ring, 94mm BCD spider
SHIFT LEVERS SRAM GX, 11-speed, trigger
CASSETTE SRAM XG-1150, 11-speed, 10-42t
REAR DERAILLEUR SRAM GX X Horizon, 11-speed, alloy cage
SUSPENSION
FORK RockShox Pike RC 650b, Solo Air spring, 160mm travel, compression adjust, rebound adjust, tapered steerer, 42mm offset, 15mm Maxle Ultimate thru-axle
REAR SHOCK FOX Float Performance DPS, AUTOSAG, 215.9x57.2mm
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
FRONT TIRE Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
RIMS Roval 650b, alloy, 29mm inner width, 24/28h
REAR TIRE Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS Specialized, 6000 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 780mm, 31.8mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
BRAKES
FRONT BRAKE SRAM Guide, metallic pads, 200mm rotor
BRAKE LEVERS SRAM DB5, hydraulic, custom reach adjust
REAR BRAKE SRAM Guide, metallic pads, 180mm rotor
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
FRAMESET
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
SEAT BINDER Specialized, 7050 alloy, single bolt, 34.9mm
FRAME M5 alloy, 650b geometry, tapered head tube, PF30 BB, ISCG '05 mount, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 165mm travel

Geometry

Geometry Chart

Enduro - Geometry

S M L
  S M L
Stem Length 45mm 45mm 60mm
Crank Length 170mm 175mm 175mm
Seatpost Length 380mm 430mm 430mm
Handlebar Width 780mm 780mm 780mm
Reach 386mm 421mm 443mm
Stack 588mm 597mm 606mm
Wheelbase 1121mm 1160mm 1186mm
Bike Stand-Over Height 766mm 776mm 780mm
Head-Tube Length 110mm 120mm 130mm
Front-Center 699mm 738mm 764mm
Fork Rake/Offset 42mm 42mm 42mm
Head-Tube Angle 65.5° 65.5° 65.5°
Trail 115mm 115mm 115mm
B-B Height 351mm 351mm 351mm
Chain-Stay Length 422mm 422mm 422mm
Fork Length (full) 552mm 552mm 552mm
Seat-Tube Angle 74.7° 74.7° 74.7°
B-B Drop 2mm 2mm 2mm
Seat-Tube Length 393mm 425mm 463mm
Top-Tube Length (horizontal) 547mm 584mm 609mm
