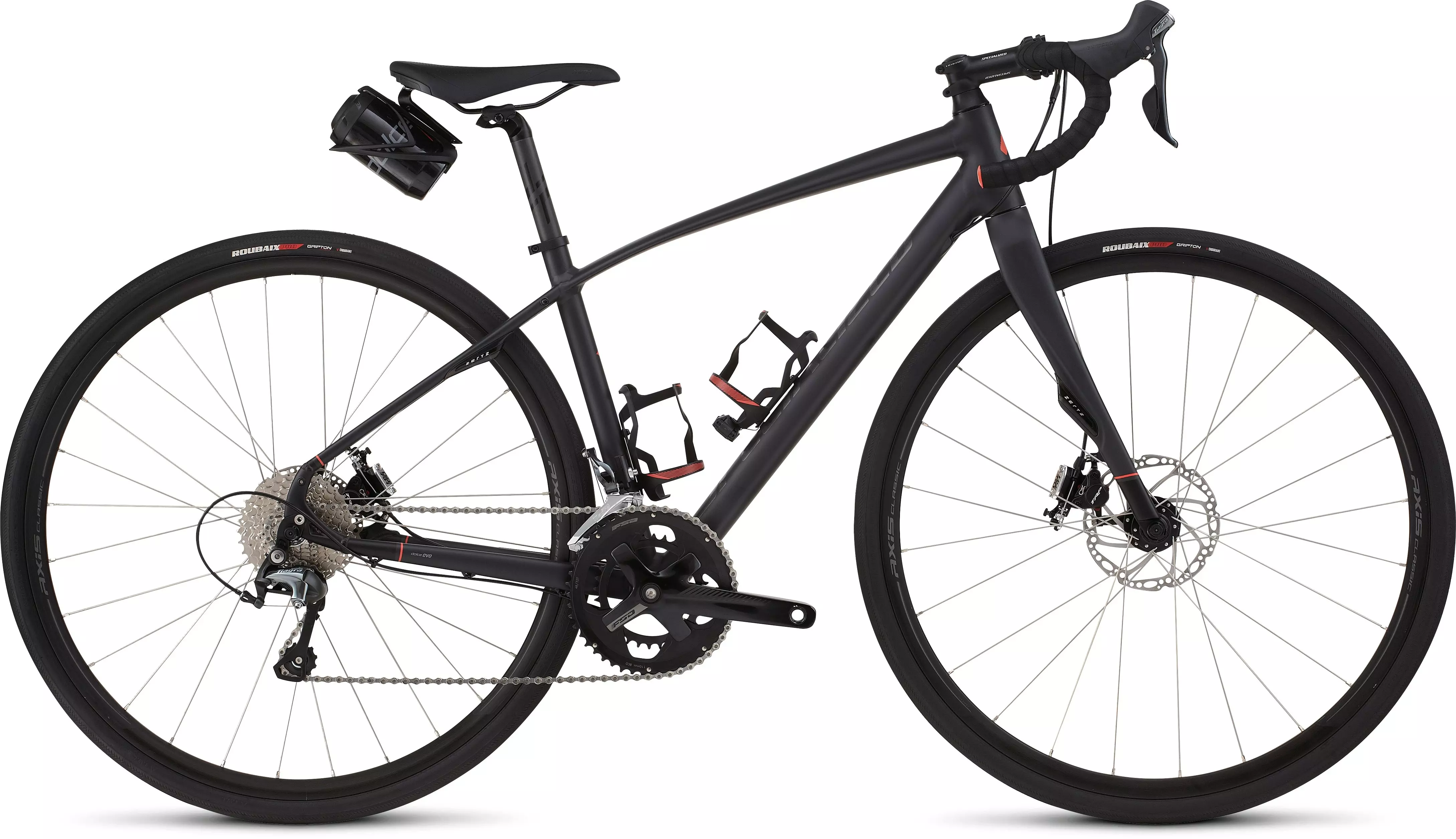

Dolce EVO
$1,450.00
Part No.

Dolce EVO

$1,450.00
Part No.  107054
load-spinner
Dolce EVO
Overview
Technical Specifications
Geometry
Reviews
Are you one of those people who can't help but wonder 'where does that road go?' The Dolce Evo is a bike that'll help you find out, and features a realible and efficent component package to help you get into the adventure game. Built to tackle any gravel and dirt road adventures with comfortable confidence, the Evo boasts hill-crushing subcompact Cruise/Climb gearing, and ample storage for those long explorations into the unknown.
  • Veer off and onto dirt and fireroads with confidence thanks to the high-traction, wide, 30/32mm Specialized Roubaix Pro tires, featuring long-lasting BlackBelt puncture protection.
  • The agile and responsive FACT carbon fork features Zertz inserts to absorb road roughness and give you a smoother ride.
  • The D’Aluisio Smartweld technology in the E5 Premium Aluminum frame provides a lightweight and precise-handling ride, while the Women’s Endurance Geometry of the frame delivers improved stability for confident control when climbing and descending. This geo also puts you in a less aggressive and more natural ride position for hours of comfortable riding.
  • Featuring the tough and reliable Shimano Tiagra drivetrain with a 48/32 crankset, perfect for tackling steep grades.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"", integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm spacers
FORK Specialized FACT carbon, alloy steerer/crown, Zertz, post disc mount, Plug + Play fender mount
FRAME Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld Technology, Women's Endurance Geometry, women's fully-manipulated tube sets w/ smooth welds, Zertz, 1-1/8"" lower bearing, disc mount
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X10, 10-speed, w/ reusable MissingLink
CRANKSET New FSA, alloy, sub compact, 48/32T
CASSETTE Shimano Tiagra, 10-speed, 11-34t
SHIFT LEVERS Shimano Tiagra STI, 10-speed
FRONT DERAILLEUR Shimano Tiagra, 10-speed, braze-on
REAR DERAILLEUR Shimano Tiagra, 10-speed, long cage
COCKPIT
SADDLE Body Geometry Women's Myth Sport, steel rails, 155mm
TAPE Specialized Roubaix, w/ 2.5mm gel pads
SEATPOST Specialized Comp Carbon, single bolt
HANDLEBARS Specialized Comp, short reach
STEM Specialized 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
FRONT BRAKE TRP HY/RD, hydraulic disc
REAR BRAKE TRP HY/RD, hydraulic disc
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL AXIS Classic Disc, wide
INNER TUBES Standard, Presta valve
FRONT TIRE Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32mm
REAR TIRE Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32mm
FRONT WHEEL AXIS Classic Disc, wide

Geometry

Geometry Chart

Dolce - Geometry

  44 48 51 54 56
Stem Length 70mm 80mm 90mm 100mm 100mm
Crank Length 165mm 165mm 170mm 170mm 172.5mm
Seatpost Length 300mm 350mm 350mm 350mm 350mm
Handlebar Width 360mm 380mm 400mm 400mm 400mm
Reach 363mm 391.5mm 421.5mm 456.5mm 486.5mm
Stack 511mm 522mm 530mm 539mm 566mm
Wheelbase 976mm 984mm 985mm 995mm 1021mm
Bike Stand-Over Height 692mm 718mm 735mm 758mm 777mm
Head-Tube Length 90mm 100mm 115mm 135mm 160mm
Front-Center 575mm 580mm 581mm 591mm 614mm
Fork Rake/Offset 49mm 49mm 49mm 49mm 49mm
Head-Tube Angle 70.5° 71.5° 72° 72° 72°
Trail 69mm 63mm 60mm 60mm 60mm
B-B Height 268.5mm 268.5mm 268.5mm 268.5mm 270mm
Chain-Stay Length 412mm 415mm 415mm 415mm 417mm
Fork Length (full) 400mm 400mm 400mm 400mm 400mm
Seat-Tube Angle 76° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Tube Length 390mm 420mm 460mm 490mm 510mm
Top-Tube Length (horizontal) 511mm 522mm 530mm 539mm 566mm
