Dolce Elite Triple
Part No.

Dolce Elite Triple

Part No.
load-spinner
Dolce Elite Triple
Overview
Technical Specifications
Geometry
Reviews

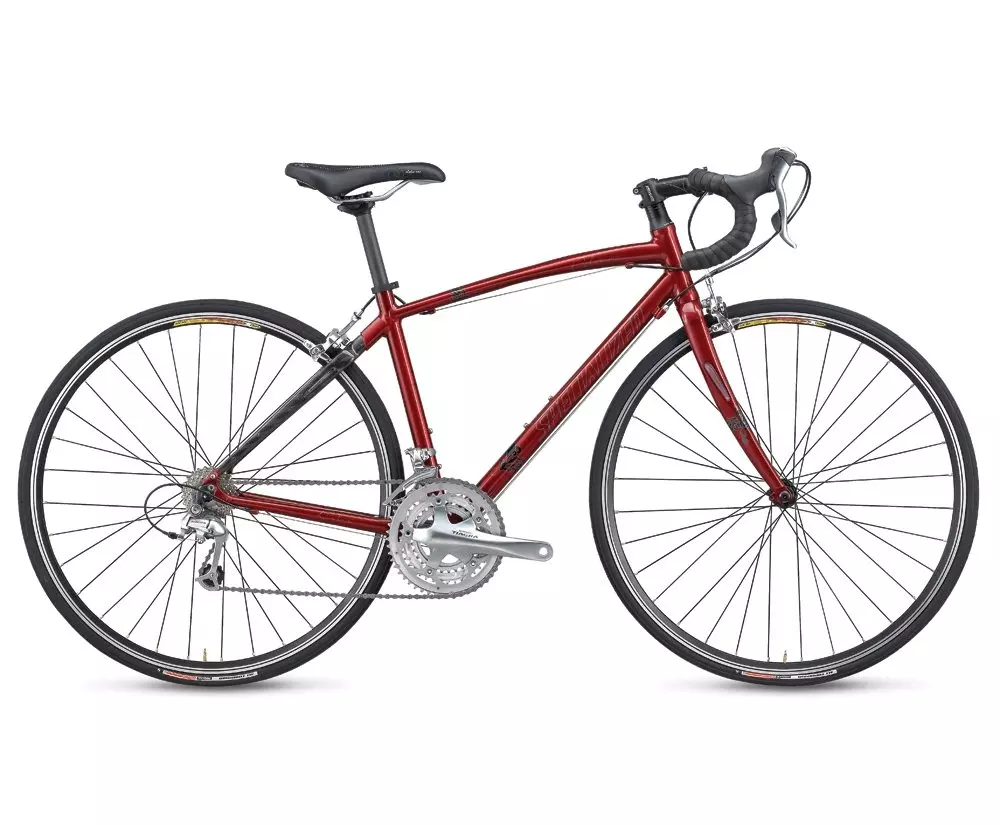

Whatever pace you prefer, the Dolce gives you all the function of a racing rig with more stability, comfort and ease. From fledgling roadies to the social rider, you can do it all with one sweet and smooth ride.
  • The Specialized Dolce uses fully manipulated E5 aluminum tubing for a fast ride and perfect fit. FACT carbon seatstays with Zertz inserts absorb stamina-robbing vibrations.
  • The Allez carbon fork soaks up road vibration, provides laser-accurate steering, and is ultra light.
  • The integrated headset makes for long-lasting, ultra smooth steering, plenty of spacers allow you to fine-tune the fit.
  • The Comp-Set stem uses an oversized 31.8mm bar clamp, for comfortable, accurate steering.
  • Our Women’s Pro handlebar features a short-reach drop and ergonomic shape for long-term comfort.
  • The Shimano Tiagra 9-speed STI shift/brake levers give quick, effortless shifts and easily controlled braking.

Technical Specifications

DRIVETRAIN
CHAIN Shimano HG73, 9-speed
BOTTOM BRACKET Shimano FC-4500
CRANKSET Shimano Tiagra
FRONT DERAILLEUR Shimano Tiagra, 31.8mm clamp, bottom pull
SHIFT LEVERS Shimano Tiagra, 9-speed STI, flight deck compatible
CASSETTE Shimano Tiagra, 9-speed, 12-25t
CHAINRINGS 50 x 39 x 30t
REAR DERAILLEUR Shimano Tiagra, long cage
WHEELS
FRONT HUB Specialized forged alloy, 32h, sealed ball bearings, QR
REAR HUB Specialized forged alloy, 32h, double sealed ball bearings, cassette, QR
INNER TUBES Specialized standard presta tube
SPOKES Stainless 14g
FRONT TIRE Specialized All Condition Sport, 700x23c 60TPI w/ Flak Jacket
RIMS Mavic CXP22 rim, alloy triple-wall, machined sidewalls, 32h
REAR TIRE Specialized All Condition Sport, 700x23c 60TPI w/ Flak Jacket
COCKPIT
SADDLE Body Geometry Lithia Women's, tuned density foam w/ gel padding, 143mm width
TAPE Women's Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding
SEATPOST Specialized carbon wrapped, two-bolt clamp, 27.2mm
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Womens, 2014 alloy, short-reach drop, ergonomic shaping, 31.8mm
BRAKES
FRONT BRAKE Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
BRAKE LEVERS Shimano Tiagra, 9-speed STI, flight deck compatible
REAR BRAKE Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap
FRAMESET
HEADSET Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers
SEAT BINDER Specialized alloy 31.8mm
FORK Specialized FACT carbon, carbon fiber legs, alloy steerer and crown w/ Zertz inserts
FRAME Dolce E5 Manipulated Alloy, smooth weld Designs for Women compact design, FACT carbon seatstays w/ Zertz inserts

Geometry

Geometry Chart

- Geometry

  44 48 51 54 56
Handle-Bar Width 300mm 300mm 350mm 350mm 350mm
Reach 496mm 506mm 518mm 537mm 548mm
Stack 400mm 430mm 450mm 480mm 500mm
Wheelbase 380mm 380mm 400mm 400mm 420mm
Seat-Tube Length, B-B Center to Top 412mm 415mm 415mm 415mm 417mm
Head-Tube Length 165mm 165mm 170mm 170mm 170mm
Ground-Top 73mm 73mm 73mm 73mm 71.5mm
Top-Tube Length, Horizontal 76mm 75.75mm 75.5mm 74mm 73.5mm
Front-Center 115mm 125mm 135mm 160mm 180mm
Head-Tube Angle 574° 579° 582° 588° 595°
Stand-Over Height 75mm 75mm 90mm 100mm 100mm
Fork Rake 974mm 983mm 986mm 992mm 1002mm
Trail 699mm 722mm 738mm 763mm 783mm
Chain-Stay Length 51mm 51mm 49mm 49mm 49mm
Seat-Tube Angle 66° 62° 59° 59° 59°
B-B Drop 70.5mm 71.25mm 72mm 72mm 72mm
