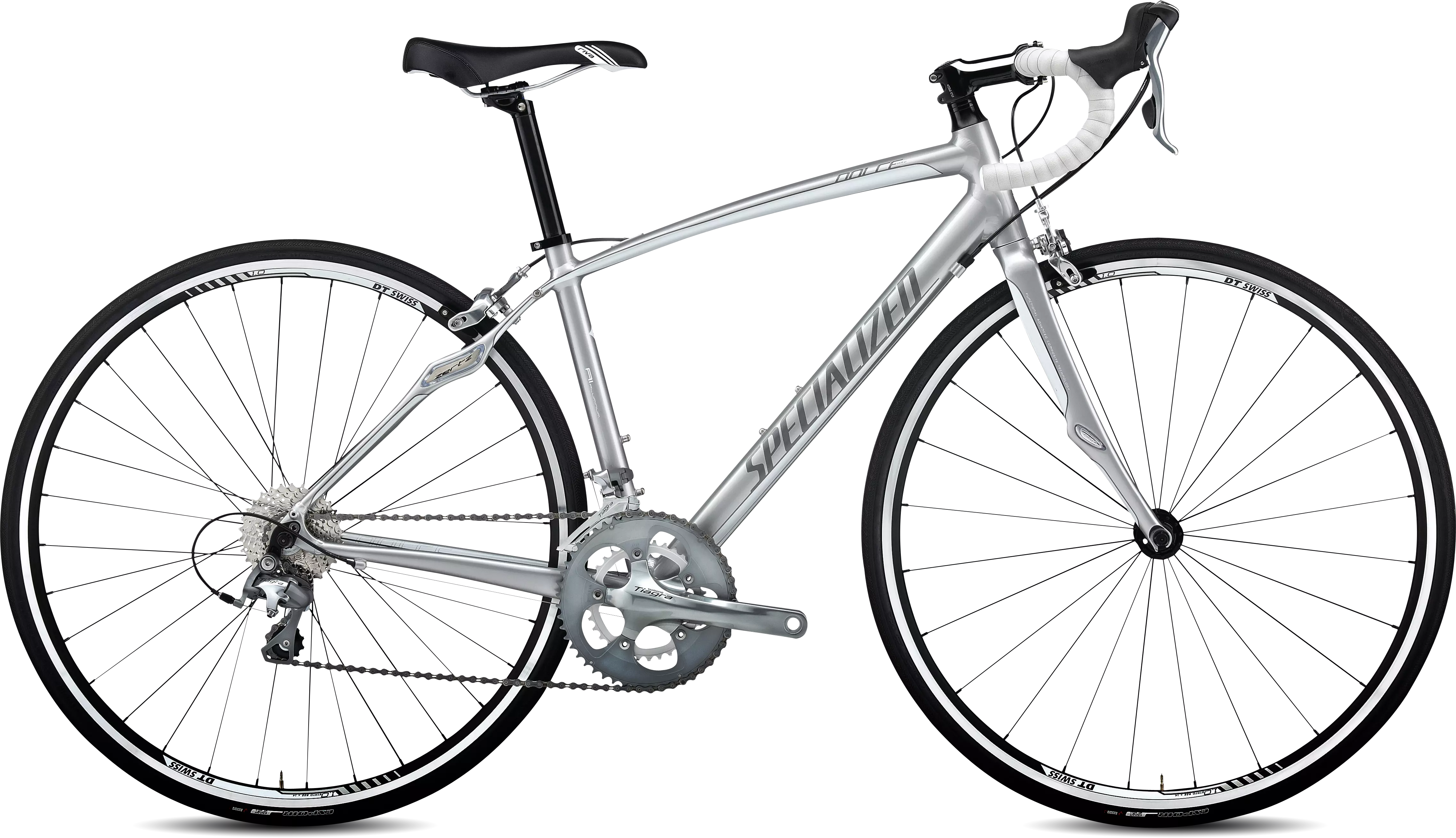

Dolce Elite Compact
Part No.

Dolce Elite Compact

Part No.
load-spinner
Dolce Elite Compact
Overview
Technical Specifications
Geometry
Reviews
Every key component of the Dolce was specifically selected for the female rider looking to tackle everything from the weekend workout to the upcoming century ride. The Dolce Elite C2 has an A1 alloy frame with women's endurance geometry, hydro formed alloy seatstays and Zertz inserts for a responsive, yet forgiving ride. The new Shimano Tiagra compact drivetrain provides reliable and quiet shifting
  • A1 alloy frame with women's endurance geometry, hydroformed alloy seatstays and In-Zertz provides a quick, responsive, yet forgiving ride
  • Lightweight FACT carbon fork for precision steering through tight turns, with Zertz inserts to absorb road chatter
  • DT Axis 1.0 wheelset is significantly lighter than comparable-level wheelsets, these tough hoops roll smooth and fast
  • Body Geometry Women's Riva 155mm features generous padding for all-day performance and comfort
  • New Shimano Tiagra 10-speed compact crankset with removable rings, plus Tiagra drivetrain for reliable and quiet shifting

Technical Specifications

DRIVETRAIN
CHAIN New Shimano Tiagra 10-speed
BOTTOM BRACKET With crankset
CRANKSET New Shimano Tiagra 10-speed
FRONT DERAILLEUR New Shimano Tiagra 10-speed
SHIFT LEVERS New Shimano Tiagra STI 10-speed
CASSETTE New Shimano Tiagra, 10-speed, 12-30t
CHAINRINGS 50/34
REAR DERAILLEUR New Shimano Tiagra 10-speed
WHEELS
REAR WHEEL DT Axis 1.0
INNER TUBES Lightweight, presta
FRONT TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c
REAR TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c
FRONT WHEEL DT Axis 1.0
COCKPIT
SADDLE Body Geometry Women's Riva, 155mm
TAPE Specialized Roubaix wrap w/ 2.5 gel pads
SEATPOST New Specialized Sport, alloy, 27.2mm
STEM Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
HANDLEBARS Specialized Women's Comp, alloy, shallow drop
BRAKES
FRONT BRAKE Tektro dual-pivot, cartridge pads
BRAKE LEVERS New Shimano Tiagra STI
REAR BRAKE Tektro dual-pivot, cartridge pads
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors
FRAMESET
HEADSET 1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon legs, alloy crown/steerer, Zertz inserts
FRAME Specialized A1 Premium Aluminum, fully manipulated women's tubing, smooth weld, hydroformed alloy SS w/ In-Zerts, women's endurance geometry, 1-1/8"" integrated HS, rack eyelets

Geometry

Geometry Chart

- Geometry

  44 48 51 54 57
Crank Length 165mm 165mm 170mm 170mm 175mm
Stem Length 75mm 75mm 90mm 100mm 100mm
Handle-Bar Width 360mm 380mm 400mm 400mm 420mm
Reach 358mm 366mm 372mm 368mm 381mm
Stack 516mm 529mm 540mm 566mm 588mm
Wheelbase 976mm 983mm 990mm 988mm 1011mm
Seat-Tube Length, B-B Center to Top 376mm 392mm 426mm 456mm 481mm
Head-Tube Length 120mm 130mm 140mm 165mm 190mm
Top-Tube Length, Horizontal 498mm 506mm 515mm 532mm 556mm
Front-Center 575mm 580mm 586mm 584mm 604mm
Head-Tube Angle 70.25° 71.25° 71.5° 72° 72°
Stand-Over Height 684mm 711mm 733mm 762mm 793mm
Fork Rake 51mm 51mm 51mm 49mm 49mm
Trail 68mm 62mm 60mm 59mm 59mm
Chain-Stay Length 412mm 415mm 415mm 415mm 417mm
Seat-Tube Angle 75.75° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm
