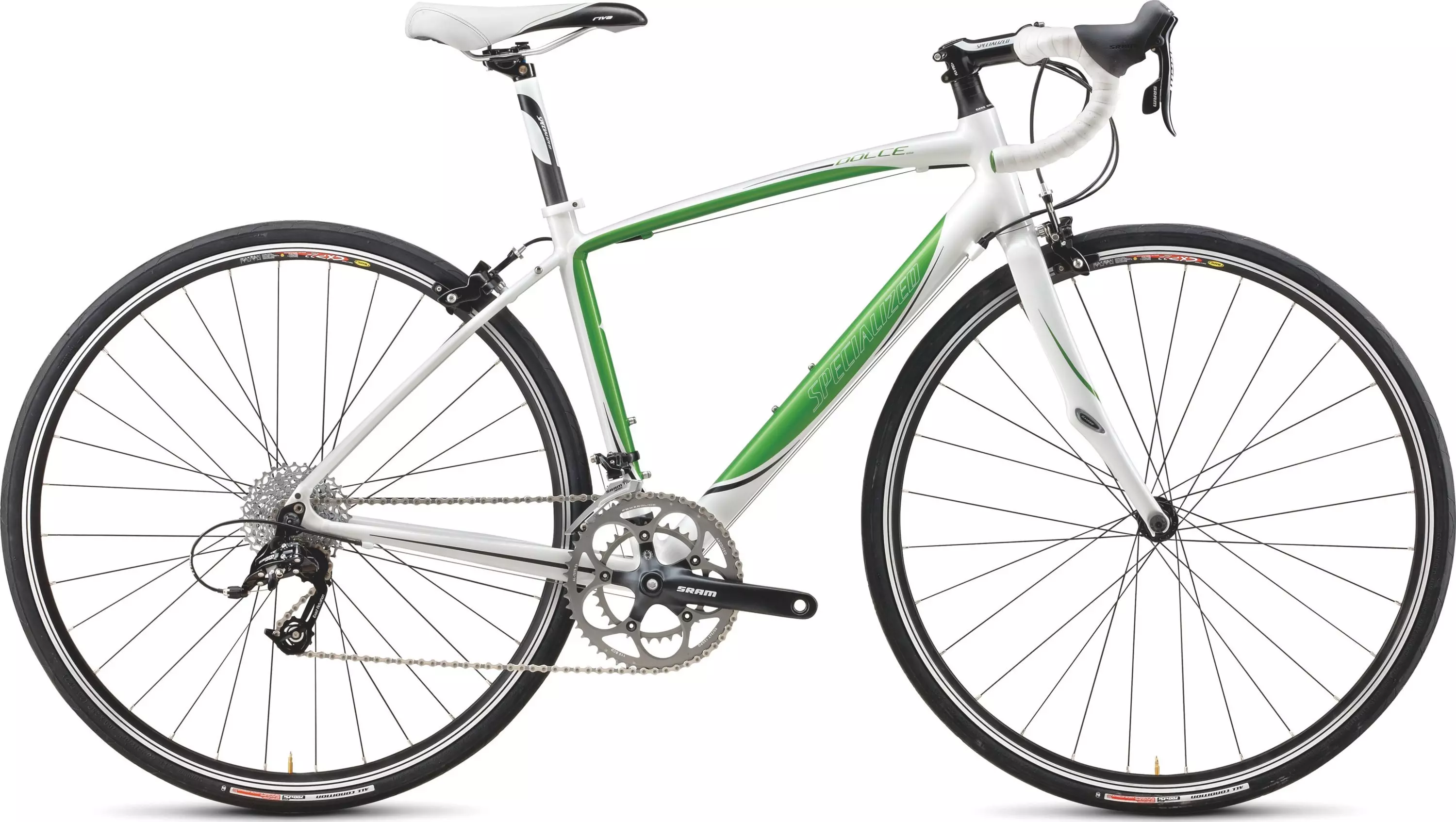

Dolce Elite Compact
Part No.

Dolce Elite Compact

Part No.  23443
load-spinner
Dolce Elite Compact
Overview
Technical Specifications
Geometry
Reviews
The comfort, efficiency, and confidence of the Dolce is made all the more fun by the smooth shifting and light weight of the new SRAM Apex 10-speed drivetrain.
  • A1 Premium Aluminum frame is specially designed for compliance, comfort, and efficiency
  • Body Geometry Riva Road women's saddle features generous padding for all-day performance and comfort
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Lightweight FACT carbon fork for precision steering through tight turns, with Zertz inserts to absorb road chatter
  • Specialized Comp ergonomic aluminum women's handlebars with short reach and short drop for a natural riding position
  • New SRAM Apex 10-speed shifters employ "double tap" technology for simple, intuitive shifting and reach adjustment for perfect fit

Technical Specifications

DRIVETRAIN
CHAIN KMC DX10SC
BOTTOM BRACKET With Crankset
CRANKSET SRAM S150
FRONT DERAILLEUR SRAM Apex
SHIFT LEVERS SRAM Apex
CASSETTE SRAM Apex, 10-speed, 11-32t
CHAINRINGS 50 x 34T
REAR DERAILLEUR SRAM Apex
WHEELS
FRONT HUB Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
REAR HUB Forged alloy, sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
FRONT TIRE Specialized All Condition Sport, 700x25c, wire bead, 60TPI, w/ Flak Jacket protection
RIMS Mavic CXP22
REAR TIRE Specialized All Condition Sport, 700x25c, wire bead, 60TPI, w/ Flak Jacket protection
COCKPIT
SADDLE Body Geometry Women's Riva Road, 155mm width
TAPE Specialized S-Wrap w/ 2.5 gel pads
SEATPOST Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Women's Comp, shallow drop, 6061 alloy
BRAKES
FRONT BRAKE Tektro cold-forged, dual pivot w/ cartridge pads
BRAKE LEVERS SRAM Apex
REAR BRAKE Tektro cold-forged, dual pivot w/ cartridge pads
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap
FRAMESET
HEADSET 1 1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon legs, alloy crown & steerer, Zertz inserts
FRAME Specialized A1 Premium aluminum, fully manipulated tubing, smooth weld women's compact design, integrated headset, rack eyelets

Geometry

Geometry Chart

Dolce - Geometry

  44 48 51 54 57
Stem Length 75mm 75mm 90mm 100mm 100mm
Crank Length 165mm 165mm 170mm 170mm 172.5mm
Handle-Bar Width 360mm 380mm 400mm 400mm 420mm
Wheelbase 976mm 983mm 990mm 988mm 1011mm
Seat-Tube Length, B-B Center to Top 385mm 415mm 445mm 480mm 510mm
Head-Tube Length 120mm 130mm 140mm 165mm 190mm
Top-Tube Length, Horizontal 498mm 506mm 515mm 532mm 556mm
Front-Center 575mm 580mm 586mm 584mm 604mm
Head-Tube Angle 70.25° 71.25° 71.5° 72° 72°
Fork Rake 51mm 51mm 51mm 49mm 49mm
Trail 68mm 62mm 60mm 59mm 59mm
Stand-Over Height 684mm 711mm 733mm 762mm 793mm
Chain-Stay Length 412mm 415mm 415mm 415mm 417mm
Seat-Tube Angle 75.75° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm
