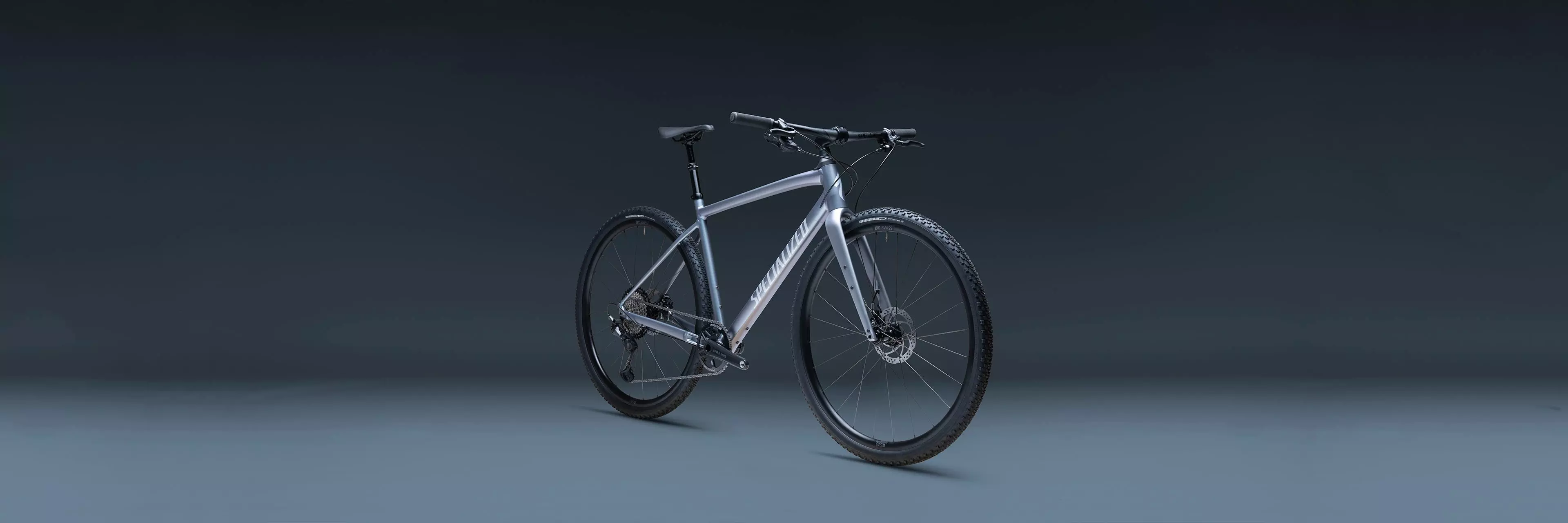

Diverge Expert E5 EVO
Diverge Expert E5 EVO
This thing called 'gravel riding' is still evolving, still being defined. What's next? Hop on the new Diverge Expert EVO and you tell us. It's designed to get aggressive, to push the boundaries of what we thought was possible on a gravel bike. With flat bars and geometry even more progressive then the new drop bar Diverge you better hang onto your flannel. We've significantly increased the reach, slackened the head tube and lowered the bottom bracket, to put you 'in' the bike for a super planted feeling. From sending technical single track to ripping flowing fire road descents, if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.
With a Premium E5 Aluminum frame and our latest Future Shock 2.0 with an adjustable hydraulic damper offering 20mm of travel, the Diverge Expert E5 is uniquely qualified to tackle aggressive trails at high speed. The bike's build is MTB inspired, with Shimano XT 1x12 and extra stopping power thanks to Magura MT4 brakes. An X-Fusion Manic dropper post is standard, as well as our latest gravel tire designed for incredible traction, the new Rhombus 42mm, on DT Swiss G540 alloy wheels.
Technical Specifications
Suspension
Fork
Future Shock 2.0 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
COCKPIT
Handlebars
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
Tape
Specialized Trail Grips
SeatPost
X-Fusion Manic Dropper, 50mm travel
DRIVETRAIN
Shift Levers
Shimano XT M8100, 12 speed trigger
Rear Derailleur
Shimano XT M8100, 12-speed
Cassette
Shimano XT, 12-speed, 10-45t
Crankset
Praxis Zayante carbon 1X
Chainrings
40T
Bottom Bracket
Praxis 68mm BSA
Chain
Shimano XT M8100, 12-speed w/ quick link
FRAMESET
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Seat Binder
Integrated w/ frame
BRAKES
Rear Brake
Magura MT4 Flat Mount, hydraulic disc, 160mm storm rotor
Front Brake
Magura MT4 Flat Mount, hydraulic disc, 160mm storm rotor
WHEELS & TIRES
Inner Tubes
Standard 40mm PV 700x32-50
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm |
| Handlebar Width | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 70mm | 80mm |
| Saddle Width | 155mm | 143mm | 143mm |
| Seatpost Length | 350mm | 380mm | 380mm |
| Stack | 580mm | 607mm | 632mm |
| Reach | 395mm | 420mm | 440mm |
| Head Tube Length | 104mm | 133mm | 159mm |
| Head Tube Angle | 70° | 70° | 70° |
| BB Height | 265mm | 265mm | 265mm |
| BB Drop | 85mm | 85mm | 85mm |
| Trail | 69mm | 69mm | 69mm |
| Fork Length, Full | 390mm | 390mm | 390mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm |
| Front Center | 639mm | 674mm | 703mm |
| Chainstay Length | 432mm | 432mm | 432mm |
| Wheelbase | 1057mm | 1092mm | 1121mm |
| Top Tube Length, Horizontal | 456mm | 600mm | 627mm |
| Bike Standover Height | 732mm | 754mm | 774mm |
| Seat Tube Length | 470mm | 500mm | 530mm |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° |
