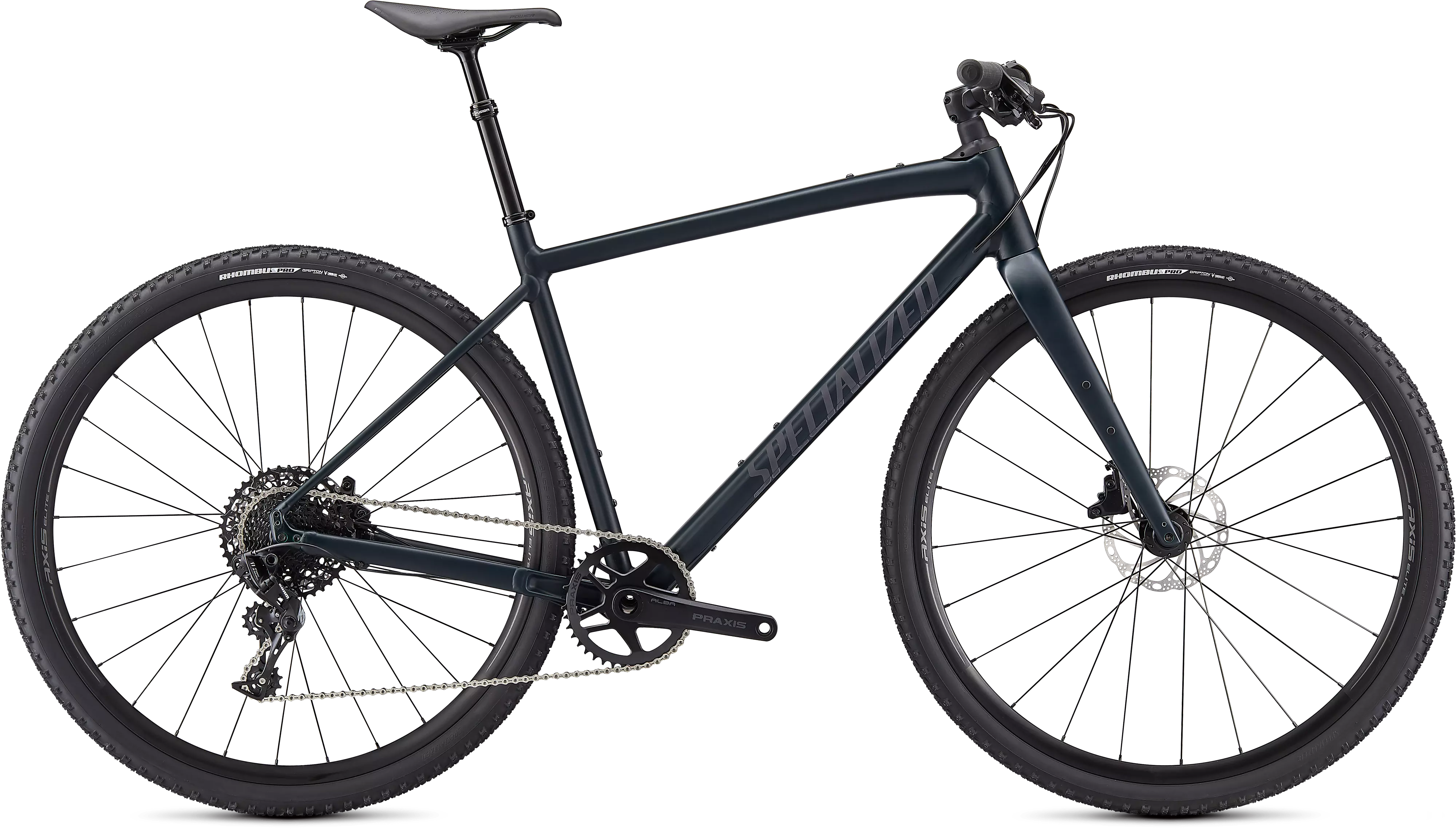

Diverge Comp E5 EVO
Diverge Comp E5 EVO
This thing called 'gravel riding' is still evolving, still being defined. What's next? Hop on the new Diverge Expert EVO and you tell us. It's designed to get aggressive, to push the boundaries of what we thought was possible on a gravel bike. With flat bars and geometry even more progressive then the new drop bar Diverge you better hang onto your flannel. We've significantly increased the reach, slackened the head tube and lowered the bottom bracket, to put you 'in' the bike for a super planted feeling. From sending technical single track to ripping flowing fire road descents, if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.
The Diverge Comp EVO's premium E5 Aluminum frame is spec'd with our Future Shock 1.5, specifically tuned for technical gravel riding. The bike's SRAM NX 1x11 group, Tektro brakes, and X-Fusion Manic dropper post add to the Diverge Comp EVO's boundary pushing abilities. Our new Rhombus 42mm gravel tire, the most aggressive gravel tread we make, and a set of Axis Elite alloy wheels round out the Diverge Comp EVO's personality as a capable and rowdy partner.
Technical Specifications
Suspension
Fork
Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
COCKPIT
Handlebars
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Saddle
Body Geometry Power Sport, steel rails
Stem
Future Stem, Comp
Tape
Specialized Trail Grips
SeatPost
X-Fusion Manic Dropper, 50mm travel
FRAMESET
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Seat Binder
Integrated w/ frame
WHEELS & TIRES
Inner Tubes
Standard 40mm PV 700x32-50
DRIVETRAIN
Shift Levers
SRAM NX, 11-speed
Rear Derailleur
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-speed, 11-42t
Crankset
Praxis Alba M30, 1x direct-mount
Chainrings
40T
Bottom Bracket
Praxis 68mm BSA
Chain
KMC X11 Extra Lightweight, 11-speed
BRAKES
Rear Brake
Tektro HD-R290, hydraulic disc, 160mm
Front Brake
Tektro HD-R290, hydraulic disc, 160mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm |
| Handlebar Width | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 70mm | 80mm |
| Saddle Width | 155mm | 143mm | 143mm |
| Seatpost Length | 350mm | 380mm | 380mm |
| Stack | 580mm | 607mm | 632mm |
| Reach | 395mm | 420mm | 440mm |
| Head Tube Length | 104mm | 133mm | 159mm |
| Head Tube Angle | 70° | 70° | 70° |
| BB Height | 265mm | 265mm | 265mm |
| BB Drop | 85mm | 85mm | 85mm |
| Trail | 69mm | 69mm | 69mm |
| Fork Length, Full | 390mm | 390mm | 390mm |
| Fork Rake/Offset | 55mm | 55mm | 55mm |
| Front Center | 639mm | 674mm | 703mm |
| Chainstay Length | 432mm | 432mm | 432mm |
| Wheelbase | 1057mm | 1092mm | 1121mm |
| Top Tube Length, Horizontal | 456mm | 600mm | 627mm |
| Bike Standover Height | 732mm | 754mm | 774mm |
| Seat Tube Length | 470mm | 500mm | 530mm |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° |
