Diverge Comp DSW
$2,400.00
Part No.

Diverge Comp DSW

$2,400.00
Part No.  106644
load-spinner
Diverge Comp DSW
Overview
Technical Specifications
Geometry
Reviews

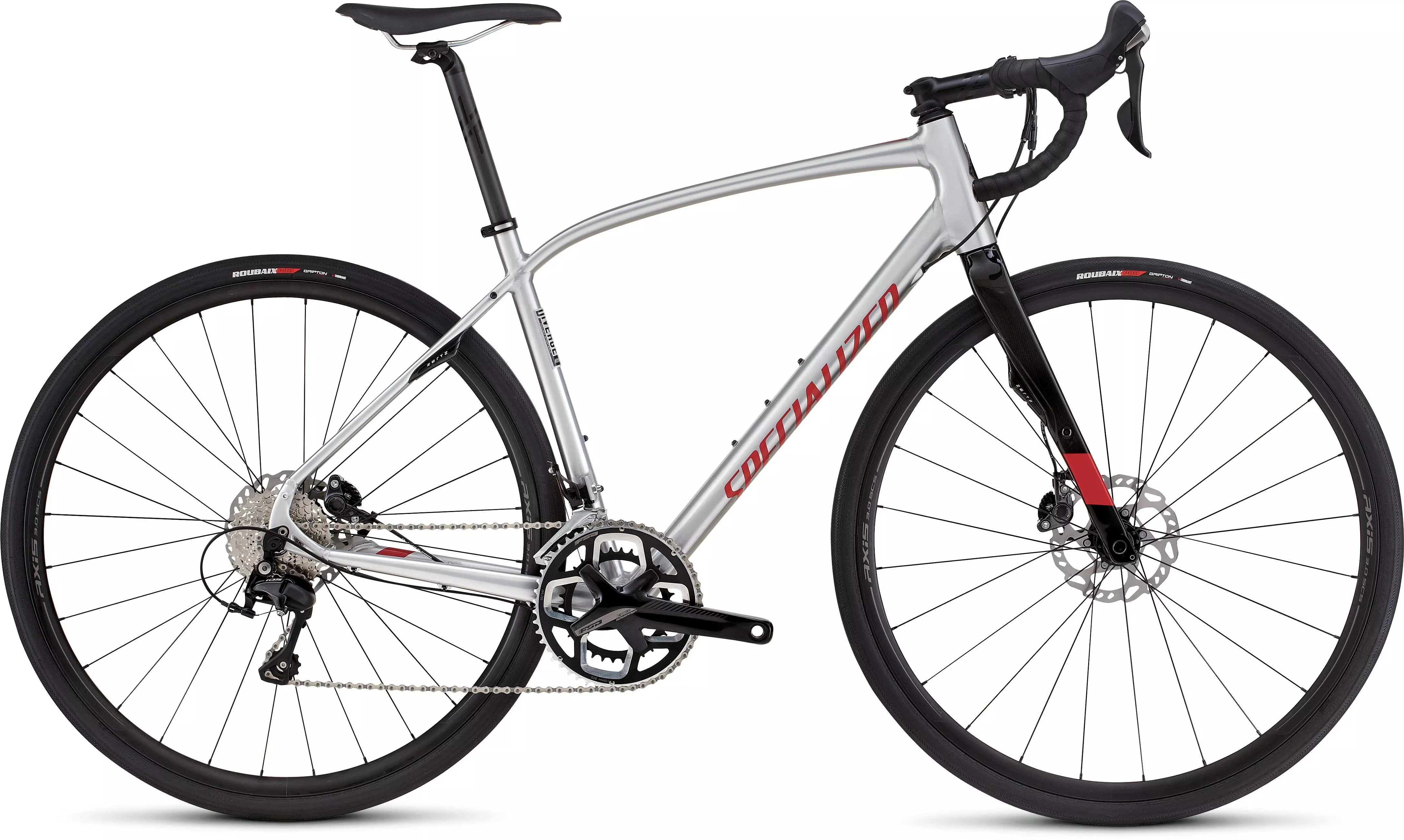

The Diverge Comp DSW provides all of the performance and compliance that you'd expect, only in an aluminum option. It features D'Aluisio Smartweld Technology that increases stiffness and compliance through a revolutionary welding process to make it more than capable of handling the road less traveled. And with its unique bottom bracket height and front rake angle, it performs with predictable confidence, while the Shimano 105 build provides worry-free and reliable shifting and braking. Looks like it's time to start planning your next adventure.
  • All of the performance and compliance of our carbon Diverge in an E5 Premium Aluminum frame option. It features D'Aluisio Smartweld Technology that increases stiffness, while the FACT carbon fork provides excellent steering response over varying terrain.
  • AXIS 3.0 Disc wheelset is a reliable and durable option, while the Roubaix Pro tires with Blackbelt protection keep flats at bay over rough terrain.
  • The FSA Gossamer Pro crankset is a true workhorse option that provides excellent power transfer, while also providing crisp and precise shifting capabilities for years to come.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8 upper, 1-1/4"" lower, Campy style, crown race, 8mm carbon cone spacer, w/ 20mm of carbon spacers
FORK Specialized FACT carbon w/ Zertz, tapered
FRAME Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld technology, tapered head tube, OSBB
DRIVETRAIN
CHAIN KMC X11, 11-speed, w/ reusable MissingLink
CRANKSET FSA Gossamer Pro, BB30, compact, 50/34T
CASSETTE Shimano 105, 11-speed, 11-32t
SHIFT LEVERS Shimano 685, 11-speed
FRONT DERAILLEUR Shimano 105, 11-speed
REAR DERAILLEUR Shimano 105, 11-speed, long cage
COCKPIT
SADDLE Body Geometry Toupé Sport, steel rails, 143mm
TAPE Specialized Roubaix, w/ 2.5mm gel pads
SEATPOST Specialized Comp Carbon, single bolt
HANDLEBARS Specialized, shallow drop, alloy, 125mm drop, 70mm short-reach
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
BRAKES
FRONT BRAKE Shimano BR-785, hydraulic disc, Ice-Tech resin pads w/ fins
REAR BRAKE Shimano BR-785, hydraulic disc, Ice-Tech resin pads w/ fins
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL AXIS 3.0 Disc SCS
INNER TUBES Standard, Presta valve
FRONT TIRE Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32mm
REAR TIRE Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32mm
FRONT WHEEL AXIS 3.0 Disc SCS

Geometry

Geometry Chart

Diverge - Geometry

  49 52 54 56 58 61 64
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm 177.5mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm 440mm
Reach 378mm 378mm 380mm 387mm 391mm 398mm 409mm
Stack 526mm 544mm 565mm 590mm 622mm 643mm 658mm
Wheelbase 989mm 995mm 1001mm 1011mm 1029mm 1039mm 1054mm
Bike Stand-Over Height 719mm 740mm 766mm 785mm 820mm 841mm 874.3mm
Head-Tube Length 100mm 120mm 140mm 165mm 200mm 220mm 235mm
Front-Center 589mm 596mm 597mm 608mm 622mm 630mm 645mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm 51mm 51mm
Head-Tube Angle 71.25° 71.25° 72° 72.5° 72.5° 73° 73°
Trail 64mm 64mm 59mm 56mm 56mm 53mm 53mm
B-B Height 270mm 270mm 271.5mm 271.5mm 273mm 273mm 273mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm 420mm
Fork Length (full) 390mm 390mm 390mm 390mm 390mm 390mm 390mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
B-B Drop 77mm 77mm 76mm 76mm 74mm 74mm 74mm
Seat-Tube Length 418mm 447mm 466mm 485mm 530mm 555mm 590mm
Top-Tube Length (horizontal) 514mm 534mm 547mm 565mm 581mm 601mm 616mm
