Diverge Carbon Frameset
Starting at $1,900.00
Part No.

Diverge Carbon Frameset

Starting at $1,900.00
Part No.  107071
load-spinner
Diverge Carbon Frameset
Overview
Technical Specifications
Geometry
Reviews

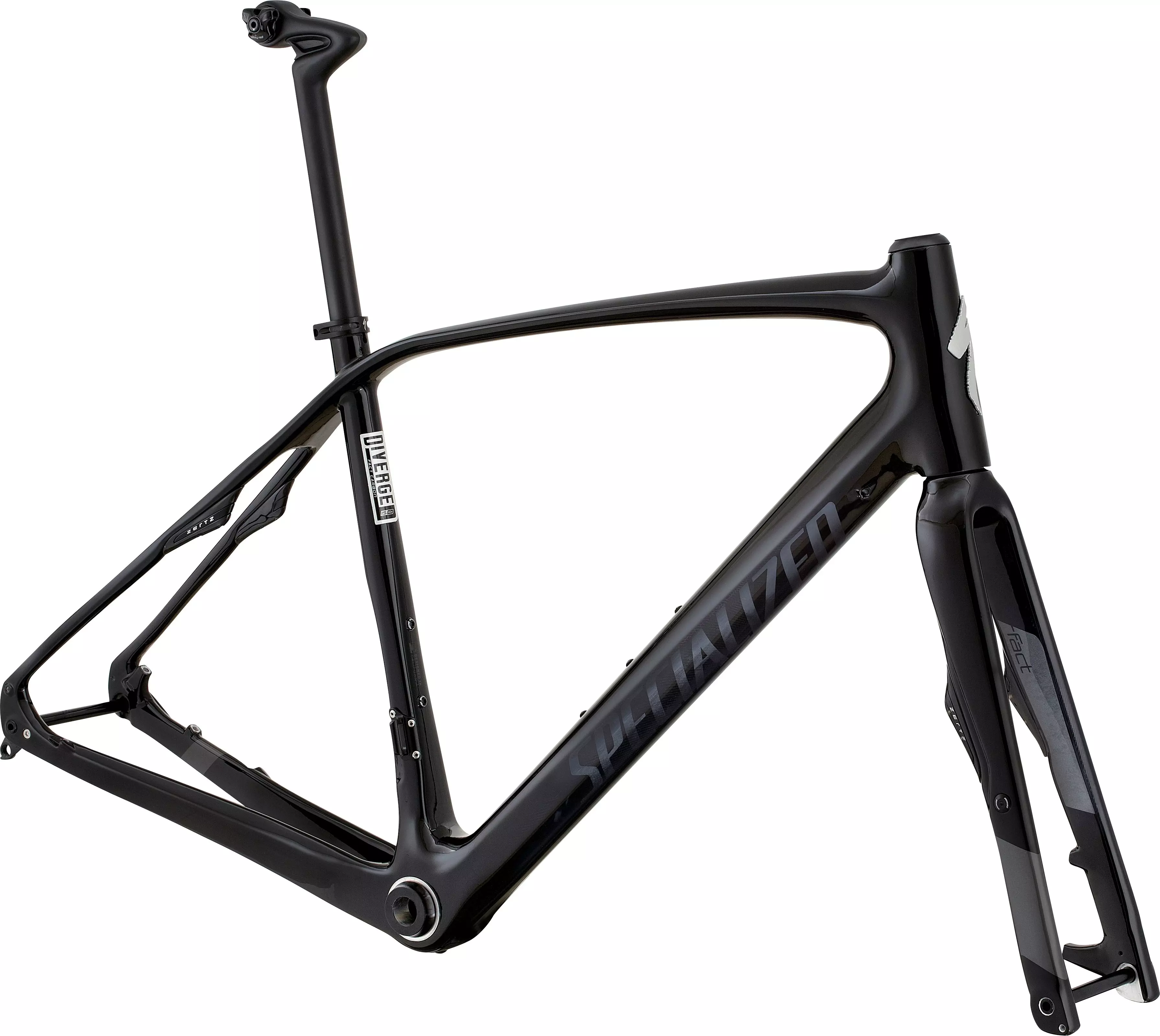

The Diverge Carbon frameset is the ultimate exploration weapon, just waiting to be built up to your exacting specifications. Its unique bottom bracket height and front rake angle provide precise and predictable handling, while the FACT 10r carbon frame and full carbon FACT fork ensure that you'll always feel comfortable over any terrain. Additionally, the Zertz inserts help absorb vibration to reduce fatigue, while the CG-R seatpost provides even more comfort for long days in the saddle. The Diverge Carbon frameset is the perfect canvas to start creating your ultimate adventure machine.
  • Specialized FACT carbon CG-R seatpost has integrated elastomer inserts that help dissipate chatter and vibration, without sacrificing responsiveness or power transfer.
  • The Specialized FACT 10r carbon frame and fork combine the lightweight performance and compliance of our top-end carbon production methods with the vibration damping of Zertz inserts to smooth out even the harshest roads and provide confident, predictable handling.

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Hope, BB30
COCKPIT
SEATPOST Specialized CG-R, FACT carbon, single bolt, 27.2mm
FRAMESET
HEADSET 1-1/8"", sealed cartridge bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
SEAT BINDER Alloy, 31.6mm
FORK Specialized FACT carbon w/ Zertz, tapered
FRAME Specialized FACT 10r carbon, tapered head tube, OSBB

Geometry

Geometry Chart

Diverge - Geometry

  49 52 54 56 58 61 64
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm 177.5mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm 440mm
Reach 378mm 378mm 380mm 387mm 391mm 398mm 409mm
Stack 526mm 544mm 565mm 590mm 622mm 643mm 658mm
Wheelbase 989mm 995mm 1001mm 1011mm 1029mm 1039mm 1054mm
Bike Stand-Over Height 714mm 740mm 764mm 785mm 829mm 851mm 873.5mm
Head-Tube Length 100mm 120mm 140mm 165mm 200mm 220mm 235mm
Front-Center 589mm 596mm 597mm 608mm 622mm 630mm 645mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm 51mm 51mm
Head-Tube Angle 71.25° 71.25° 72° 72.5° 72.5° 73° 73°
Trail 64mm 64mm 59mm 56mm 56mm 53mm 53mm
B-B Height 270mm 270mm 271.5mm 271.5mm 273mm 273mm 273mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm 420mm
Fork Length (full) 390mm 390mm 390mm 390mm 390mm 390mm 390mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
B-B Drop 77mm 77mm 76mm 76mm 74mm 74mm 74mm
Seat-Tube Length 418mm 447mm 466mm 485mm 530mm 555mm 590mm
Top-Tube Length (horizontal) 514mm 534mm 547mm 565mm 581mm 601mm 616mm
