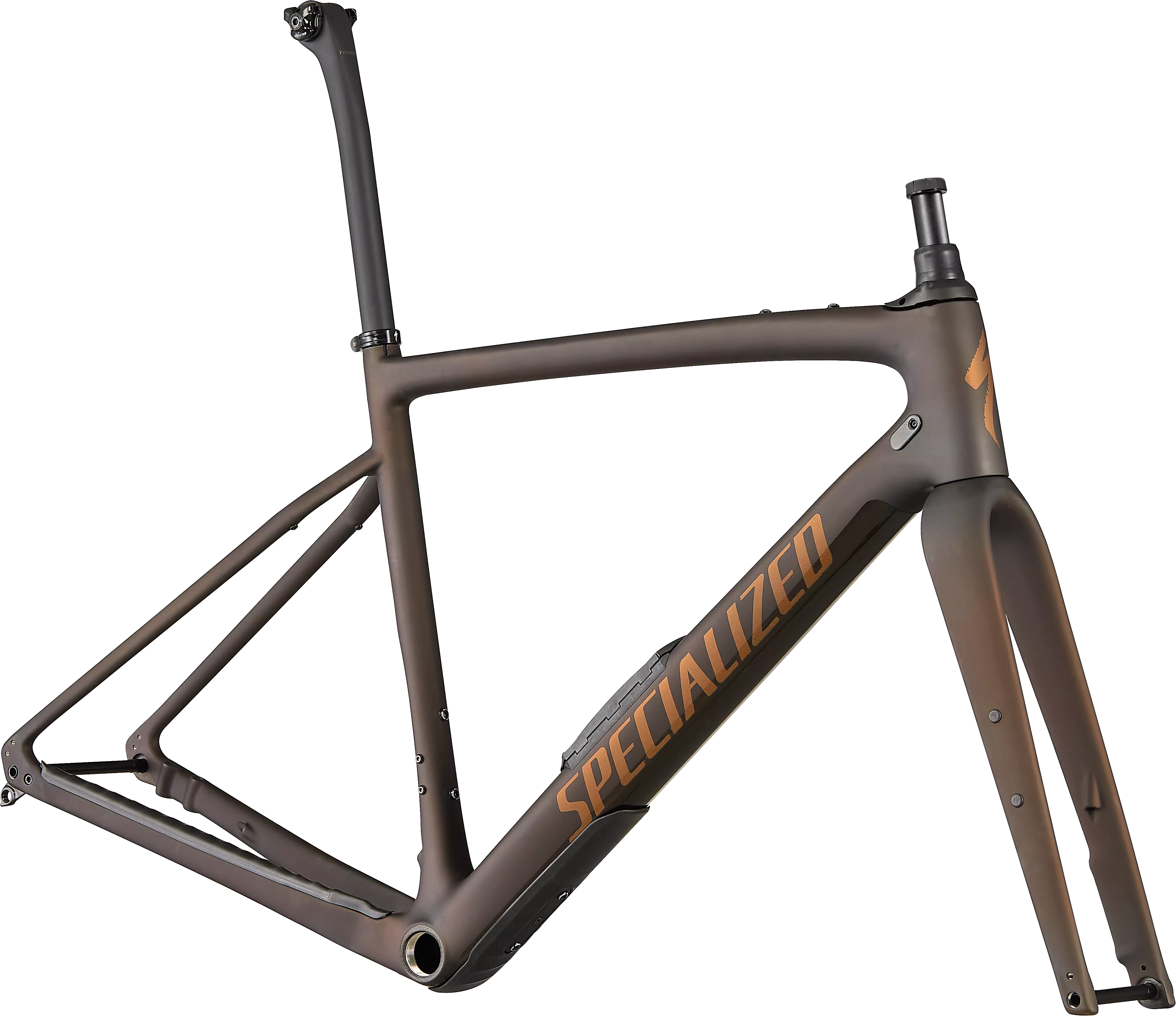

Diverge 9r Frameset

Diverge 9r Frameset

We deliver! Just say when and how.

Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.

Technical Specifications

FRAMESET

Frame

Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Seat Binder

Specialized Alloy, 30.8mm

Suspension

Fork

Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

COCKPIT

SeatPost

Roval Terra Carbon Seat Post, 20mm Offset

ACCESSORIES

SWAT

Integrated SWAT door, internal storage system

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

49525456586164
Seatpost Length330mm330mm380mm380mm380mm380mm380mm
Stack571mm577mm592mm610mm634mm659mm684mm
Reach365mm374mm383mm392mm401mm410mm419mm
Head Tube Length99mm104mm116mm133mm159mm185mm209mm
Head Tube Angle70°70.5°71.25°71.75°71.75°71.75°72.25°
BB Height270mm270mm270mm270mm270mm270mm270mm
BB Drop80mm80mm80mm80mm80mm80mm80mm
Trail69mm66mm61mm57mm57mm57mm54mm
Fork Length, Full389mm389mm389mm389mm389mm389mm389mm
Fork Rake/Offset55mm55mm55mm55mm55mm55mm55mm
Front Center607mm614mm620mm630mm647mm664mm675mm
Chainstay Length425mm425mm425mm425mm425mm425mm425mm
Wheelbase1019mm1026mm1032mm1042mm1059mm1076mm1088mm
Top Tube Length, Horizontal529mm542mm558mm573mm589mm605mm628mm
Bike Standover Height700mm725mm754mm779mm805mm832mm859mm
Seat Tube Length390mm430mm470mm500mm530mm560mm590mm
Seat Tube Angle74°73.75°73.5°73.5°73.5°73.5°73°
Geometry
