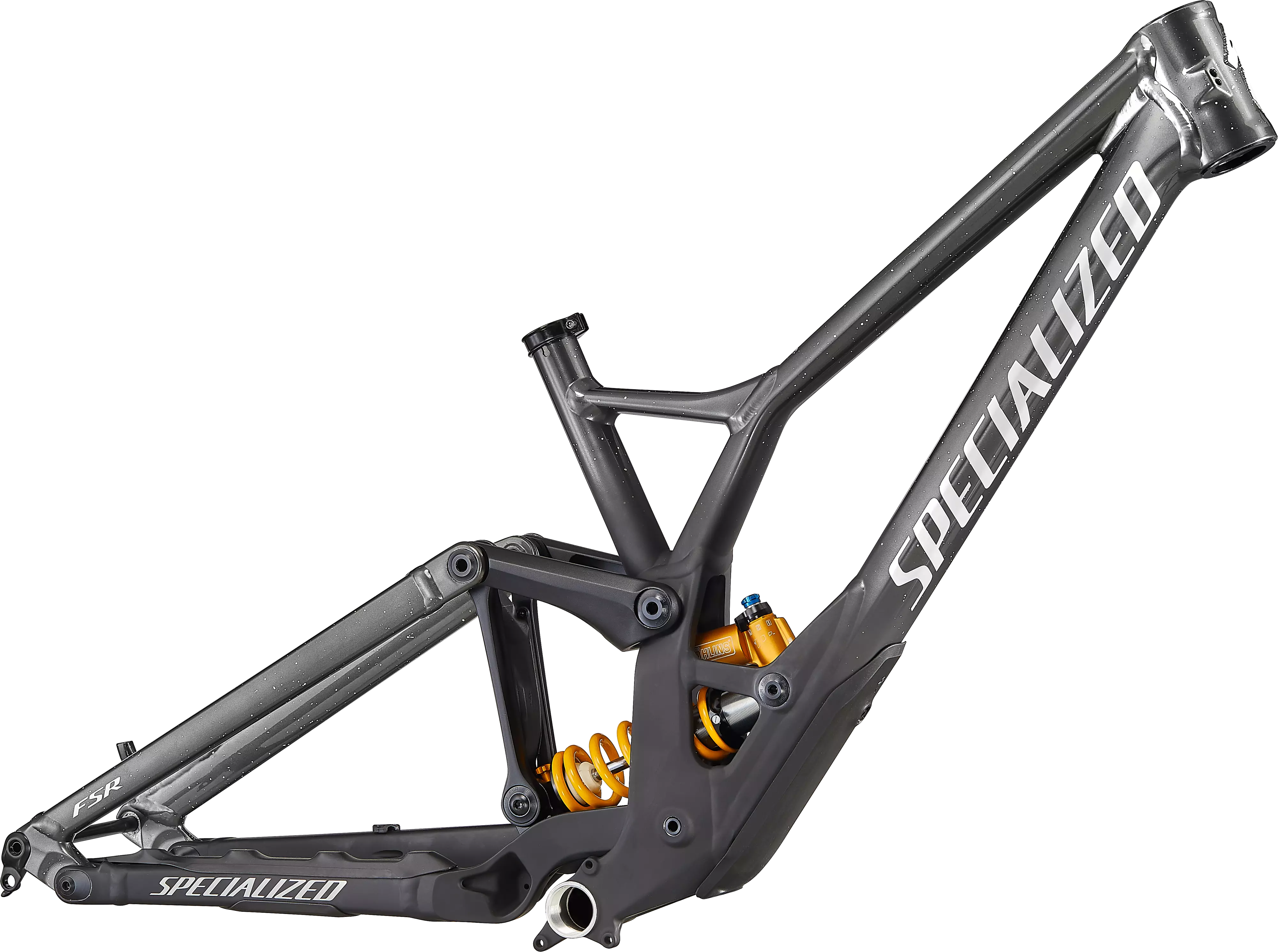

2022 Demo Race Frameset
$3,000
4.5
2 Reviews
Color:
GLOSS BLACK CHROME / LIMESTONE SPECKLES / SATIN BLACK / CHROME
What's my size?
Select a Size
Shipping to -----
Unavailable
This item is not available for Find Nearby
Product Details
Technical Specifications
Frameset
Frame
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Seat Binder
Alloy, 34.9mm
Suspension
Rear Shock
Ohlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
Cockpit
Saddle
Body Geometry Henge DH, hollow titanium rails, 130mm
SeatPost
Thomson, alloy, straight, 12-degree clamp
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | |
|---|---|---|---|
| Saddle Width | 130mm | 130mm | 130mm |
| Seatpost Length | 367mm | 367mm | 367mm |
| Stack | 632mm | 632mm | 632mm |
| Stack (29 mid) | 629mm | 629mm | 629mm |
| Stack (27.5 mid) | 635mm | 635mm | 635mm |
| Reach | 426mm | 446mm | 466mm |
| Reach (29 mid) | 430mm | 450mm | 470mm |
| Reach (27.5 mid) | 423mm | 443mm | 463mm |
| Head-Tube Length | 105mm | 105mm | 105mm |
| Head-Tube Angle | 62.8° | 62.8° | 62.8° |
| Head-Tube Angle (29 mid) | 63.2° | 63.2° | 63.2° |
| Head-Tube Angle (27.5 mid) | 62.5° | 62.5° | 62.5° |
| B-B Height | 350mm | 350mm | 350mm |
| B-B Height (29 mid) | 355mm | 355mm | 355mm |
| B-B Height (27.5 mid) | 345mm | 345mm | 345mm |
| B-B Drop | 25mm | 25mm | 25mm |
| Trail | 130mm | 130mm | 130mm |
| Trail (29 mid) | 127mm | 127mm | 127mm |
| Trail (27.5 mid) | 132mm | 132mm | 132mm |
| Fork Rake/Offset | 56mm | 56mm | 56mm |
| Front-Center | 801mm | 821mm | 841mm |
| Front-Center (29 mid) | 801mm | 821mm | 841mm |
| Front-Center (27.5 mid) | 801mm | 821mm | 841mm |
| Chain-Stay Length (29) | 448mm | 448mm | 448mm |
| Chain-Stay Length (27.5) | 438mm | 438mm | 438mm |
| Chain-Stay Length (mid) | 443mm | 443mm | 443mm |
| Wheelbase (27.5) | 1239mm | 1259mm | 1279mm |
| Wheelbase (29) | 1249mm | 1269mm | 1289mm |
| Wheelbase (mid) | 1244mm | 1264mm | 1284mm |
| Seat-Tube Length | 394mm | 420mm | 420mm |
| Seat-Tube Angle | 78.2° | 76.8° | 76.8° |
| Seat-Tube Angle (29 mid) | 78.5° | 77.1° | 77.1° |
| Seat-Tube Angle (27.5 mid) | 77.8° | 76.4° | 76.4° |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
