Demo 8 II
$6,600.00
Part No.

Demo 8 II

$6,600.00
Part No.  34959
load-spinner
Demo 8 II
Overview
Technical Specifications
Geometry
Reviews

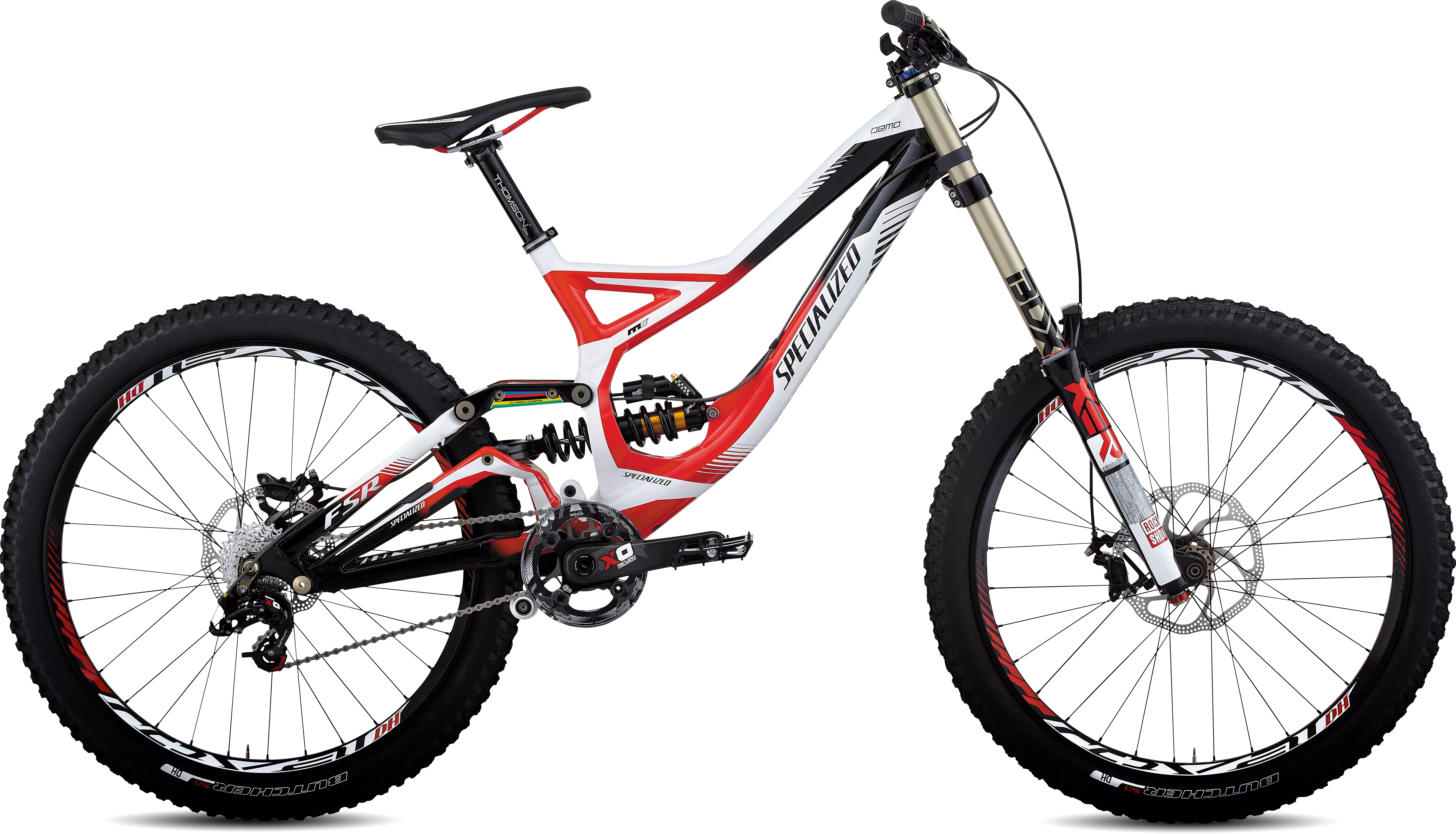

With two downhill World Championships already to its name, the Demo 8 II is the world's fastest downhill machine. With 200mm of travel, a Cane Creek Double Barrel shock and a RockShox World Cup fork, it oozes premium downhill performance.
  • Cane Creek Double Barrel coil shock provides a downhiller's dream of externally adjustable high-and-low-speed rebound and compression settings for maximum control over challenging terrain
  • RockShox Boxxer World Cup has 200mm of air-sprung travel, and features extreme tuning capabilities with high-and-low-speed compression and rebound adjustments, and a 20mm Maxle thru-axle
  • New Roval DH rims are 30mm wide, laced with DT Swiss spokes to Specialized hubs with a 20mm front thru-axle and 150x12mm rear thru-axle hub creates a reliable, and super strong wheelset that easily handles the biggest hits
  • SRAM X0 DH crankset with carbon arms, 36T chainring and Gamut bashguard is built with speed and durability in mind
  • Custom Avid Code X0 hydraulic disc brakes for lightweight precision, modulation and power, plus carbon levers with tool-less reach
  • Manipulated M5 alloy FSR frame with Mag Link has 8" of rear wheel travel, an oversized, forged head tube, rear derailleur protector, with suspension linkage engineered for the world's toughest terrain
  • Renthal Fat Bar is 780mm wide for maximum control for riding the steepest descents, just like the Monster boys
  • SRAM X0 DH short cage derailleur and 10-speed 11-26t cassette provide lightweight and accurate shifting performance
  • Specialized Butcher DH 26 x 2.3" soft dual compound front and rear tires offer great traction with Monster Team approved tread, and a bombproof casing

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
HEADSET 1-1/2"" integrated for 1-1/8"" steerer, cartridge bearings
FRAME M5 manipulated alloy, compact race design, 1-1/2"" forged HT, magnesium link, ISCG 05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB Specialized Hi Lo disc, 150mm, hollow 12mm Cr-Mo axle w/ RD guard, 32h
INNER TUBES Presta valve 26x2.4/2.75, 2.25mm thick
SPOKES DT Swiss Competition 2.0/1.8/2.0mm stainless
RIMS Roval DH 26, 30mm wide w/eyelets, 32h
FRONT TIRE Specialized Butcher DH, DH casing, wire bead, soft dual-compound, 26x2.3""
REAR TIRE Specialized Butcher DH, DH casing, wire bead, soft dual compound, 26x2.3""
DRIVETRAIN
BOTTOM BRACKET Custom SRAM PF30 DH, 83mm shell
CHAIN KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET SRAM X0 DH, carbon arms, single ring, PF30 spindle, 165mm, w/Gamut P-30 chainguide
CASSETTE SRAM PG-1050, 10-speed, 11-26t
SHIFT LEVERS SRAM X9, 10-speed, trigger, w/MatchMaker clamp
CHAINRINGS 36T thin alloy
REAR DERAILLEUR SRAM X0 DH, 10-speed, short cage
COCKPIT
SADDLE Specialized DH, 8mm hollow Cr-Mo rails
SEATPOST Thomson straight w/ 12º clamp, 367mm
GRIPS Specialized lock-on, S/M: Grappler, Others: Grappler XL
HANDLEBARS Renthal Fat Bar, 780mm wide, 7º backsweep, 31.8mm
STEM Specialized Direct-Mount stem, 40mm length, 31.8mm, 4-bolt, forged
BRAKES
BRAKE LEVERS Custom Avid X0, carbon blade, tool-less reach adj., w/MatchMaker clamp
FRONT BRAKE Custom Avid Code X0 World Cup, hydraulic disc, tool-less reach, Code caliper, semi-metallic pad, stainless hardware, 200mm rotor
REAR BRAKE Custom Avid Code X0 World Cup, hydraulic disc, tool-less reach, Code caliper, semi-metallic pad, stainless hardware, 180mm rotor
ACCESSORIES
PEDALS Specialized Benies, low profile with removable pins
SUSPENSION
FORK RockShox Boxxer World Cup, Mission Control damper, alloy steerer, low/high speed compression and rebound adj. w/ bottom out control, 20mm Maxle DH thru-axle, 200mm travel
REAR SHOCK Cane Creek Double Barrel, coil over w/piggy back, high/low speed compression and high/low speed rebound, 9.5x3"", XS: 300, S:350, M:400, L:450

Geometry

Geometry Chart

Demo - Geometry

XS S M L
  XS S M L
Stem Length 50mm 50mm 50mm 50mm
Crank Length 165mm 165mm 165mm 165mm
Seatpost Length 300mm 300mm 300mm 300mm
Bottom Bracket Height - High Setting 353mm 353mm 353mm 353mm
Head Tube Angle - High Setting 64.8° 64.8° 64.8° 64.8°
Handlebar Width 750mm 750mm 750mm 750mm
Reach 390mm 410mm 430mm 447mm
Stack 593mm 593mm 593mm 593mm
Chainstay Length 421mm 421mm 421mm 421mm
Seat Tube Angle (Effective) - High Setting 76.8° 76.8° 76.8° 76.8°
Seat Tube Angle (Actual) - High Setting 62.8° 62.8° 62.8° 62.8°
Top Tube Length (Actual) 485mm 504mm 517mm 530mm
Ground-Top 936mm 936mm 936mm 936mm
Top Tube Length (Horizontal) 540mm 560mm 580mm 597mm
Head Tube Angle - Low Setting 64° 64° 64° 64°
Standover Height 717mm 717mm 722mm 731mm
Wheel Base 1151mm 1171mm 1191mm 1208mm
Head Tube Height 112mm 112mm 112mm 112mm
Seat Tube Angle (Actual) - Low Setting 62° 62° 62° 62°
Seat Tube Length - Center to Top 394mm 394mm 419mm 458mm
Seat Tube Angle (Effective) - Low Setting 76° 76° 76° 76°
Bottom Bracket Height - Low Setting 343mm 343mm 343mm 343mm
