Demo 8 I Carbon
$6,500.00
Part No.

Demo 8 I Carbon

$6,500.00
Part No.  106997
load-spinner

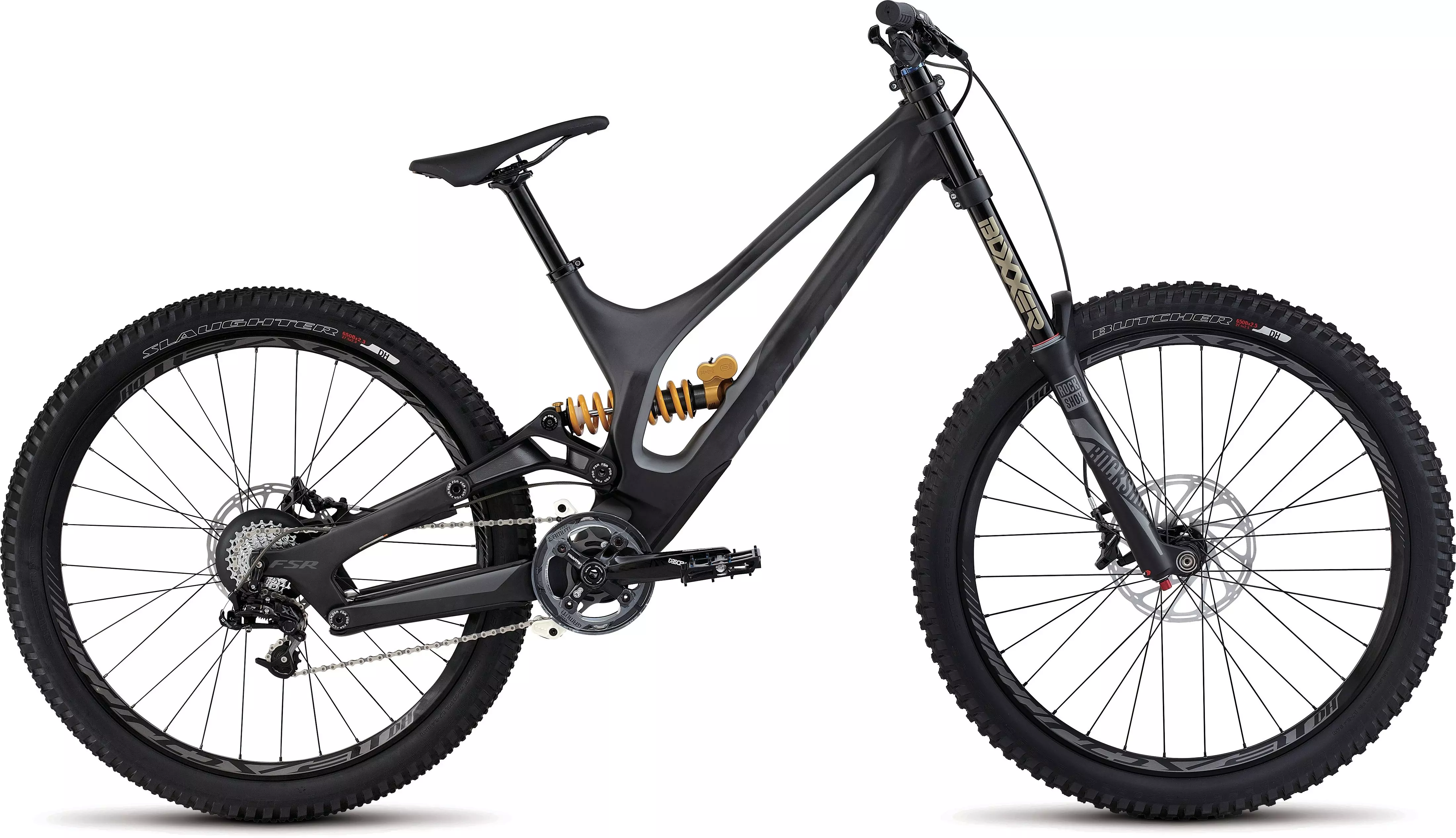

Demo 8 I Carbon
Overview
Technical Specifications
Geometry
Reviews
When it comes to the stiffness, lightweight, and strength required for downhill, you just can't beat a carbon fiber frame construction. That's while you'll find our top-tier carbon, FACT 10m, was used to create the acclaimed Demo 8 FSR Carbon. It's also been built off of our S3 650b geometry, ensuring a roomy top tube for added control, ultra-short, nimble chainstays, a low bottom bracket that keeps you feeling planted, and a slack front end that provides the utmost in responsive handling at speed. For suspension, this Demo features 200mm up front via a RockShox BoXXer RC 650b and 200mm of travel at the rear controlled by our revolutionary Öhlins rear shock. Together, the combo ensures that you'll be able to rocket over any terrain with confidence. And when you add in a build kit consisting of SRAM's powerful Guide R brakes, a durable one-by SRAM drivetrain, and our legendary Butcher & Slaughter DH tires, you start get the picture of why our Demo 8s have won so many races.
  • The frame features a full FACT 10m carbon fiber construction for low weight and heightened levels of strength and stiffness, which is amplified by its asymmetrical frame design that still leaves plenty of access. This has also been paired with our proven S3 Geometry that increases maneuverability and responsiveness, while the 200mm of travel at the rear makes the bike capable of taking on the biggest of hits in stride.
  • SRAM's Guide R brakes provide powerful, precise, and highly adjustable braking. Their based on a four-piston caliper design that puts out smooth, dependable stopping power, while the Reach Adjust feature allows you to customize the position for easy, one-finger lever pulls.
  • Custom Öhlins rear shock delivers unparalleled DH performance. It offers high/low speed compression adjust that stands independent of the rebound adjust, enabling you to fine-tune the shock for the track at hand. It's coil-sprung travel that stands without rival, and you won't find anywhere else.
  • RockShox BoXXer RC 650b fork is purposefully designed for the most demanding terrain on earth. With 200mm of travel, Motion Control IS damping for maximum efficiency, and Power Buldge reinforced lower legs that allow oversized bushings for incredible stiffness, it'll leave you with nothing but confidence.
  • 650bx2.5" Butcher DH tire at the front has prominent shoulder knobs that ravenously grip in any condition, while the center tread is low for minimal rolling resistance. Meanwhile, we positioned a 650bx2.3" Slaughter DH at the rear for its aggressive tread, stiff sidewall, and tacky grip—ensuring maximum traction and protection through any terrain.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single bolt, 36.9mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, semi-integrated, cartridge bearings
FRAME FACT 10m carbon, S3 Geometry, carbon front triangle, alloy link and chainstays, FACT IS construction, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm travel
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 36h
REAR HUB Specialized, Hi Lo disc, hollow Cr-Mo axle, 32h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval 650b, alloy, 24mm inner width, 32h
FRONT TIRE Specialized Butcher DH, 60TPI, wire bead, 650bx2.5""
REAR TIRE Specialized Slaughter DH, 60TPI, wire bead, 650bx2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM, BB30, 83mm
CHAIN SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET Custom SRAM Descendant, BB30, 7050 alloy arms, thin 36T ring, w/ Gamut bashguard
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS SRAM X7, 10-speed, w/ Matchmaker clamp
REAR DERAILLEUR SRAM X9 Type 2, 10-speed, mid cage
COCKPIT
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized, 6061 alloy, 2-bolt, 0mm setback, 30.9mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized Demo, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 780mm, 31.8mm
STEM Specialized P.Series MTB, forged alloy, 4-bolt
BRAKES
BRAKE LEVERS SRAM Guide R, alloy lever, reach adjust
FRONT BRAKE SRAM Guide R, metallic pads, 200mm Centerline rotor
REAR BRAKE SRAM Guide R, metallic pads, 180mm Centerline rotor
ACCESSORIES
PEDALS Specialized Bennies, 6061 alloy body, sealed cartridge, 4.5mm removable pins
SUSPENSION
FORK RockShox BoXXer RC 650b, S: Extra soft spring , M: Soft spring, L: Medium spring, XL: Firm spring, 200mm travel, compression adjust, rebound adjust, alloy steerer, 48mm offset, Maxle Lite DH
REAR SHOCK Custom Öhlins, high/low speed compression adjust, rebound adjust, 9.5x3""

Geometry

Geometry Chart

Demo - Geometry

S M L XL
  S M L XL
Stem Length 45mm 45mm 45mm 45mm
Crank Length 165mm 165mm 165mm 165mm
Seatpost Length 367mm 367mm 367mm 367mm
Handlebar Width 780mm 780mm 780mm 780mm
Reach 395mm 420mm 440mm 460mm
Stack 614mm 614mm 614mm 614mm
Wheelbase 1183mm 1208mm 1228mm 1248mm
Bike Stand-Over Height 698mm 698mm 698mm 698mm
Head-Tube Length 105mm 105mm 105mm 105mm
Front-Center 754mm 779mm 799mm 819mm
Fork Rake/Offset 52mm 52mm 52mm 52mm
Head-Tube Angle 63.5° 63.5° 63.5° 63.5°
Trail 118mm 118mm 118mm 118mm
B-B Height 342mm 342mm 342mm 342mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Fork Length (full) 590mm 590mm 590mm 590mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 12mm 12mm 12mm 12mm
Seat-Tube Length 394mm 394mm 419mm 419mm
Top-Tube Length (horizontal) 571mm 596mm 616mm 636mm
