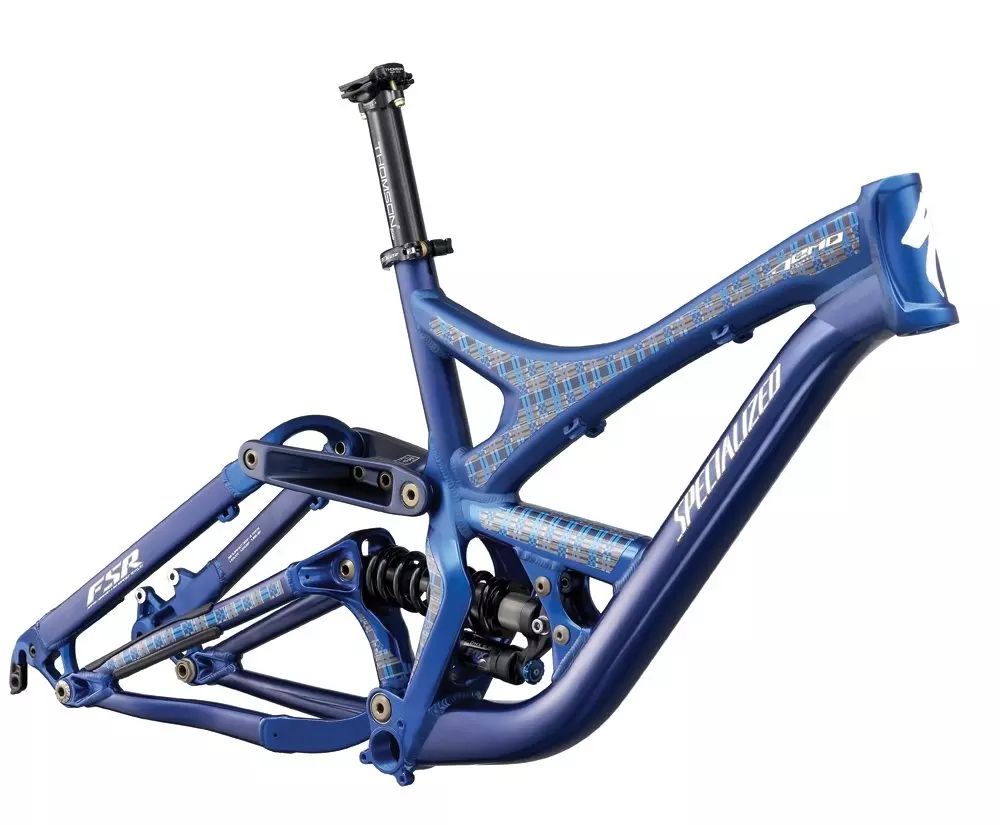

Demo 8 Frame
$2,200.00
Part No.

Demo 8 Frame

$2,200.00
Part No.  22299
load-spinner
Demo 8 Frame
Overview
Technical Specifications
Geometry
Reviews
BUILT FOR STEEP TRAILS AND BIG AIR, our Demo laughs in the face of ruthless terrain with 7 and 8 inches of generous travel. Its top-of-the line Fox components, stable geometry with low central mass and insanely strong double ORE down tubes are competition-proven to withstand the most extreme abuse.
  • 8.2-inch travel M5 manipulated frame features a cold-forged head tube, seat tube, bottom bracket shell, linkage points and center rib cage for off-the-charts durability. Adjustable geometry for situation-specific tuning.
  • Fox DHX 5.0 coil shock custom-tuned for the Demo 8's FSR telemetry. 15-click ProPedal damping, boost valve and bottom-out resistance give the Demo 8 responsiveness, no matter the terrain.

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
FRAME Demo 8 FSR M5 Manipulated Alloy, 8.2"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1-1/8"" forged HT, cartridge bearing rear shock mount, rear derailleur protector
COCKPIT
SEATPOST Thomson straight w/ 12 degree clamp, 367mm
SUSPENSION
REAR SHOCK Fox DHX 5.0 coil 8.5x2.375"", ProPedal and rebound adj., bottom out control, S:450, M:500, L:550

Geometry

Geometry Chart

Demo - Geometry

S M L
  S M L
Stem Length 35mm 35mm 35mm
Crank Length 170mm 170mm 170mm
Seatpost Length 367mm 367mm 367mm
Bottom Bracket Height - High Setting 380mm 380mm 380mm
Head Tube Angle - High Setting 65° 65° 65°
Handlebar Width 680mm 680mm 680mm
Chainstay Length 421mm 421mm 421mm
Seat Tube Angle (Effective) - High Setting 76° 76° 76°
Seat Tube Angle (Actual) - High Setting 65.5° 65.5° 65.5°
Top Tube Length (Actual) 520mm 540mm 554mm
Top Tube Length (Horizontal) 550mm 575mm 592mm
Head Tube Angle - Low Setting 64° 64° 64°
Standover Height 754mm 759mm 769mm
Wheel Base 1168mm 1196mm 1213mm
Head Tube Height 120mm 120mm 120mm
Seat Tube Angle (Actual) - Low Setting 64.5° 64.5° 64.5°
Seat Tube Length - Center to Top 432mm 432mm 457mm
Seat Tube Angle (Effective) - Low Setting 75° 75° 75°
Bottom Bracket Height - Low Setting 368mm 368mm 368mm
