Demo 7 II

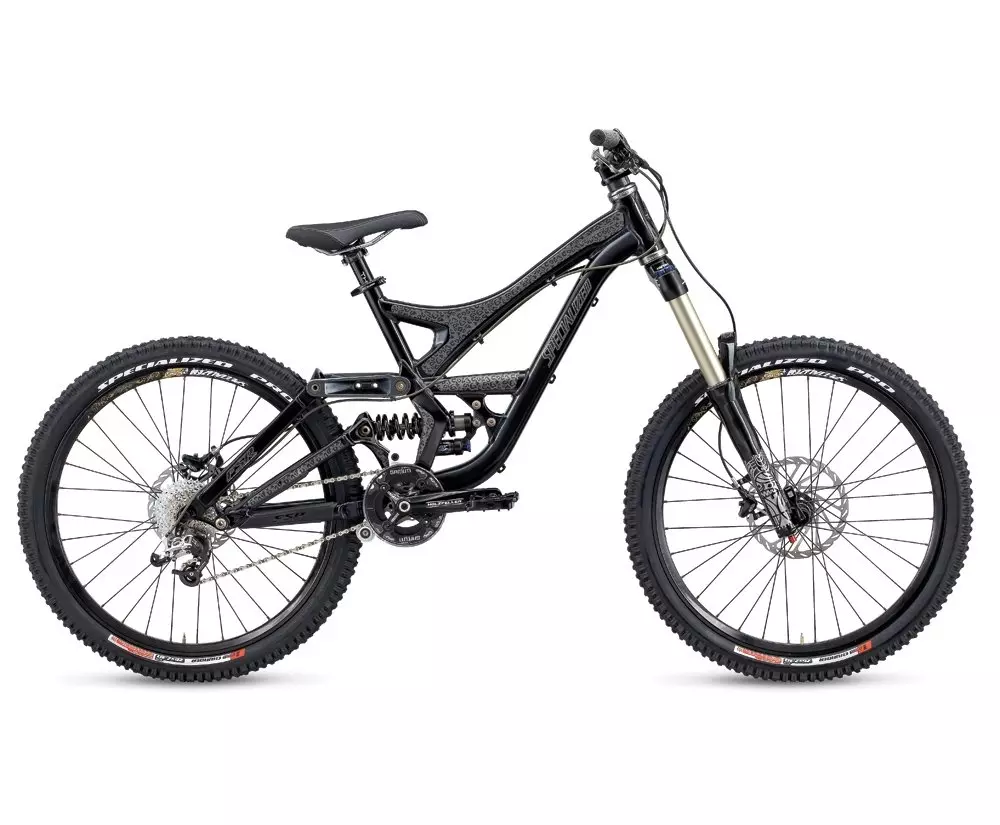

2009 Demo 7 II
Technical Specifications
FRAMESET
FRAME
Demo 7 FSR M5 Manipulated Alloy, 7"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector
HEADSET
1.5"" Threadless, lightweight 7050 alloy cups
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox DHX 5.0 coil 8.5x2.375"", ProPedal and rebound adj., bottom out control, S:450, M:500, L:550
FORK
RockShox Totem Solo Air, 180mm travel, external compression and rebound adj., 1.5"" alloy steerer tube, 20mm thru-axle w/ Maxle 360
WHEELS
FRONT TIRE
Specialized Chunder SX 26x2.3"", 60 TPI, aramid bead, cap ply, soft dual compound
REAR TIRE
Specialized Chunder SX 26x2.3"", 60 TPI, aramid bead, cap ply, soft dual compound
INNER TUBES
Specialized 26x2.3"", presta
RIMS
Custom DT Swiss F550, 30mm, 32h
FRONT HUB
Specialized Hi-Lo disc, 20mm thru-axle, 32h
REAR HUB
Specialized thru axle 135mm, hollow 10mm Cr-Mo axle w/ RD guard
SPOKES
DT Swiss Competition 2.0/1.8/2.0mm stainless, black, brass nipples
DRIVETRAIN
REAR DERAILLEUR
SRAM X-0, 9-speed, short cage
SHIFT LEVERS
SRAM X-9, trigger
CASSETTE
Shimano HG80, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Truvativ Holzfeller, 170mm w/ Gamut P-30 chain guide
BOTTOM BRACKET
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
COCKPIT
STEM
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged
HANDLEBARS
Specialized Demo rise bar, 6066 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 680mm wide
GRIPS
Specialized lock on grip, alloy bar ends
SADDLE
Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam
SEATPOST
Thomson straight w/ 12 degree clamp, 367mm
BRAKES
FRONT BRAKE
Custom Avid Elixir R Carbon, hydraulic disc, reach adjust, metallic pads, carbon lever, stainless hardware, 203mm rotor
REAR BRAKE
Custom Avid Elixir R Carbon, hydraulic disc, reach adjust, metallic pads, carbon lever, SS hardware, 185mm rotor
BRAKE LEVERS
Custom Avid Elixir R Carbon Hydraulic, tool-less adj. reach
ACCESSORIES
PEDALS
Specialized Lo-Pro Mag, magnesium platform, 9/16"" oversized heat treated Cr-Mo axle, sealed cartridge bearing, removable allen bolt pins
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Bottom Bracket Height - Low Setting | 362mm | 362mm | 362mm |
| Top Tube Length (Horizontal) | 550mm | 575mm | 595mm |
| Head Tube Height | 120mm | 120mm | 120mm |
| Head Tube Angle - Low Setting | 65° | 65° | 65° |
| Seat Tube Angle (Actual) - Low Setting | 65° | 65° | 65° |
| Seat Tube Angle (Effective) - Low Setting | 75° | 75° | 75° |
| Top Tube Length (Actual) | 520mm | 540mm | 554mm |
| Head Tube Angle - High Setting | 66° | 66° | 66° |
| Bottom Bracket Height - High Setting | 374mm | 374mm | 374mm |
| Seat Tube Angle (Actual) - High Setting | 66° | 66° | 66° |
| Seat Tube Angle (Effective) - High Setting | 76° | 76° | 76° |
| Seat Tube Length - Center to Top | 432mm | 432mm | 457mm |
| Wheel Base | 1160mm | 1185mm | 1205mm |
| Standover Height | 748mm | 753mm | 763mm |
| Chainstay Length | 421mm | 421mm | 421mm |
| Crank Length | 170mm | 170mm | 170mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 35mm | 35mm | 35mm |
| Seatpost Length | 367mm | 367mm | 367mm |
