CruX Single E5
Part No.

CruX Single E5

Part No.  106371
load-spinner
CruX Single E5
Overview
Technical Specifications
Geometry
Reviews

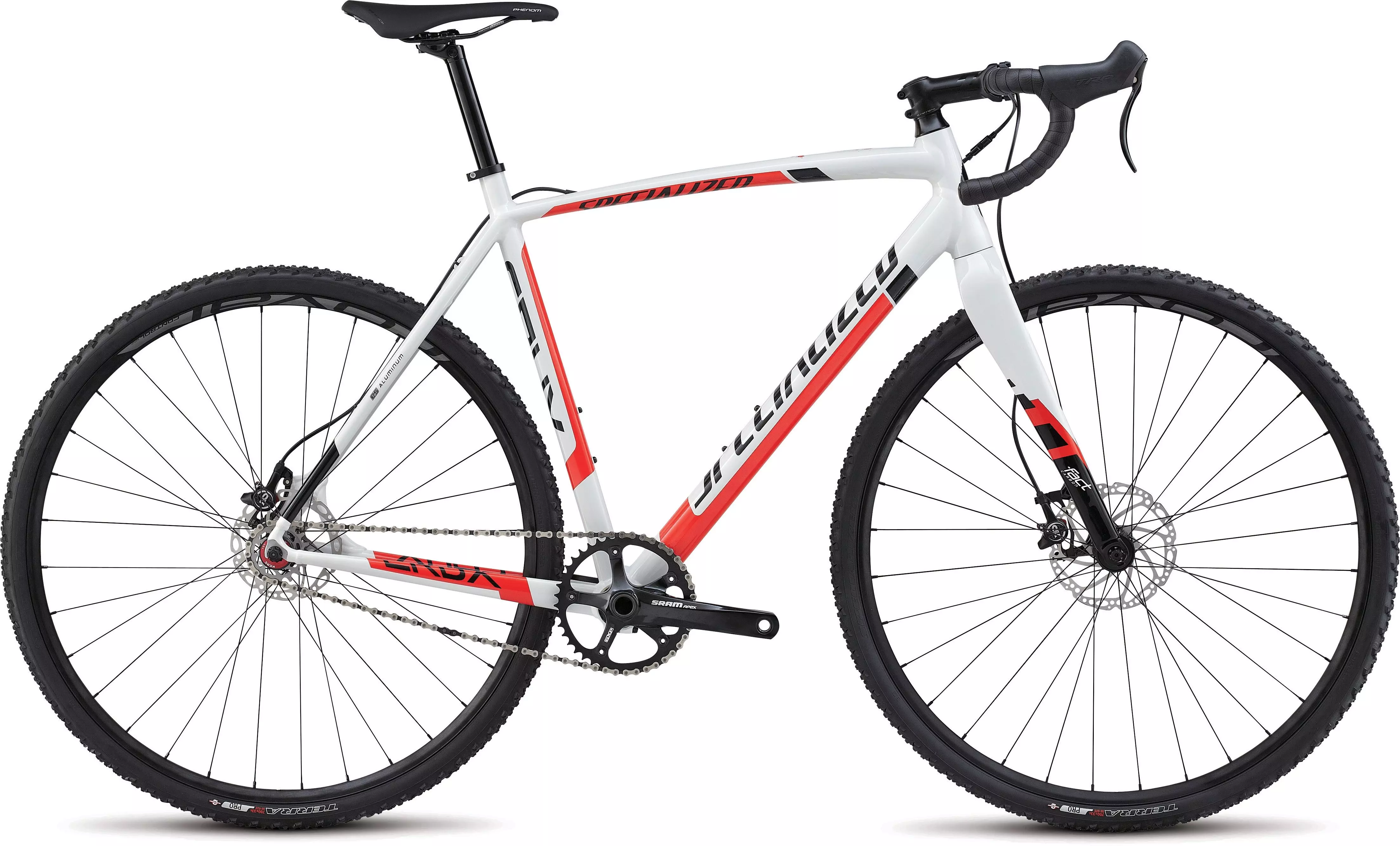

The CruX Single E5 is for the rare cyclocross racer who relishes the challenge of a singlespeed race bike. And with its premium alloy frame and no-hassle build, the CruX Single E5 lets you worry less about bike setup and more about going all-out.
  • With a semi-compact race design and an E5 Premium Aluminum construction, the frame provides plenty of stiffness and agility for the tight turns and accelerations of cyclocross.
  • The Specialized FACT carbon fork increases steering response and rider input—no matter the terrain.
  • Built to be tough and reliable, the SRAM Apex crankset is stiff enough for the hardest efforts and strong enough to last.

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-1130, 11-speed, w/ PowerLink
BOTTOM BRACKET SRAM, BB30
SHIFT LEVERS Tektro Hylex
CASSETTE Singlespeed, stainless steel, 18t
COCKPIT
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
TAPE Specialized CX Pro Gel
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm
STEM Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
HANDLEBARS Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
WHEELS
REAR WHEEL Roval Control 29 CruX SS
INNER TUBES Standard, Presta valve
FRONT TIRE Specialized Terra Pro, 2Bliss Ready, 700x33mm
REAR TIRE Specialized Terra Pro, 2Bliss Ready, 700x33mm
FRONT WHEEL Roval Control 29 CruX SS
BRAKES
FRONT BRAKE Tektro Hylex, hydraulic disc
REAR BRAKE Tektro Hylex, hydraulic disc
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
FRAMESET
HEADSET 1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon
FRAME Specialized E5 Premium Aluminum, fully-manipulated tubing, semi-compact race design, shaped top tube, 1-3/8"" lower bearing, internal cable routing, integrated headset, eccentric BB

Geometry

Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 300mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Reach 366mm 370mm 375mm 379mm 384mm 387mm 392mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Wheelbase 1008mm 1009mm 1009mm 1016mm 1022mm 1025mm 1031mm
Bike Stand-Over Height 725mm 761mm 773mm 790mm 807mm 825mm 849mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Front-Center 593mm 595mm 595mm 601mm 606mm 609mm 615mm
Fork Rake/Offset 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Trail 76mm 70mm 63mm 65mm 62mm 59mm 56mm
B-B Height 279mm 279mm 279mm 281mm 281mm 283mm 283mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Fork Length (full) 400mm 400mm 400mm 400mm 400mm 400mm 400mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Tube Length 460mm 490mm 520mm 540mm 560mm 580mm 610mm
Top-Tube Length (horizontal) 501mm 510mm 534mm 547mm 559mm 569mm 587mm
