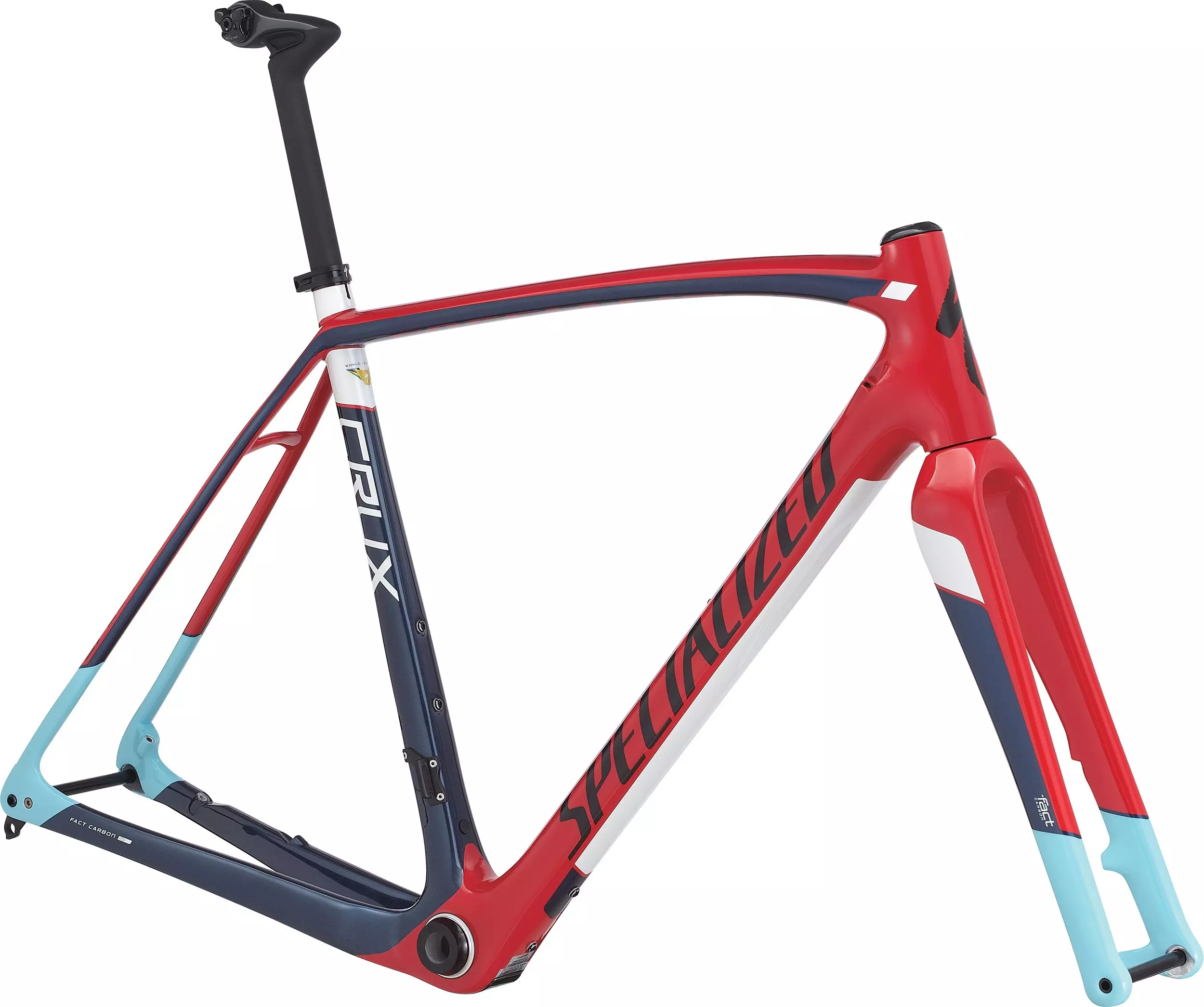

CruX Pro Disc Frameset
Part No.

CruX Pro Disc Frameset

Part No.  115412
CruX Pro Disc Frameset
Technical Specifications
The CruX Pro Disc frameset is a 'cross-optimized warrior. With its FACT 10r carbon frame, disc brake mounts, and CG-R carbon fiber seatpost, it's ready to be built up exactly how you want it. Add to that SWAT™ Box compatibility and a third bottle mount on the down tube for water or a tool Keg, and you have the foundation for a real course crusher.
  • The carbon frame was constructed from our FACT 10r carbon fiber that puts performance first without breaking the bank.  It retains all of the rigidity and responsiveness required of 'cross racing and to promote ride quality, it's also equipped with a thru-axle desig with 142mm rear sapcing for all wheel compatibility.
  • The internally routed FACT carbon disc fork features a thru-axle design, and it increases steering response and rider input for the tight turns and all-out efforts demanded in CX.
  • The CG-R seatpost is constructed from our high quality FACT carbon fiber, and when combined with the elastomer insert, it helps reduce rider fatigue and increase compliance.

Technical Specifications

SEATPOST Specialized CG-R, FACT carbon, single bolt, 27.2mm
SEAT BINDER Crux carbon disc fork QR
FORK CruX carbon disc, thru-axle, QR
FRAME Specialized FACT 10r carbon, 142mm thru-axle, 1-3/8"" lower bearing, disc mount, OSBB


Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Seat Post Length 350mm 350mm 350mm 350mm 350mm 350mm 350mm
Reach 366mm 369mm 376mm 379mm 384mm 387mm 393mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Wheelbase 1008mm 1008mm 1010mm 1016mm 1022mm 1025mm 1032mm
Bike Stand-Over Height 764mm 782mm 795mm 809mm 825mm 841mm 862mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Front-Center 593mm 594mm 596mm 601mm 606mm 609mm 616mm
Fork Rake/Offset 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Trail 76mm 70mm 63mm 65mm 62mm 59mm 56mm
B-B Height 279mm 279mm 279mm 281mm 281mm 283mm 283mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Fork Length (full) 400mm 400mm 400mm 400mm 400mm 400mm 400mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Tube Length 470mm 490mm 510mm 530mm 550mm 570mm 600mm
Top-Tube Length (horizontal) 501mm 509mm 535mm 547mm 559mm 569mm 588mm
