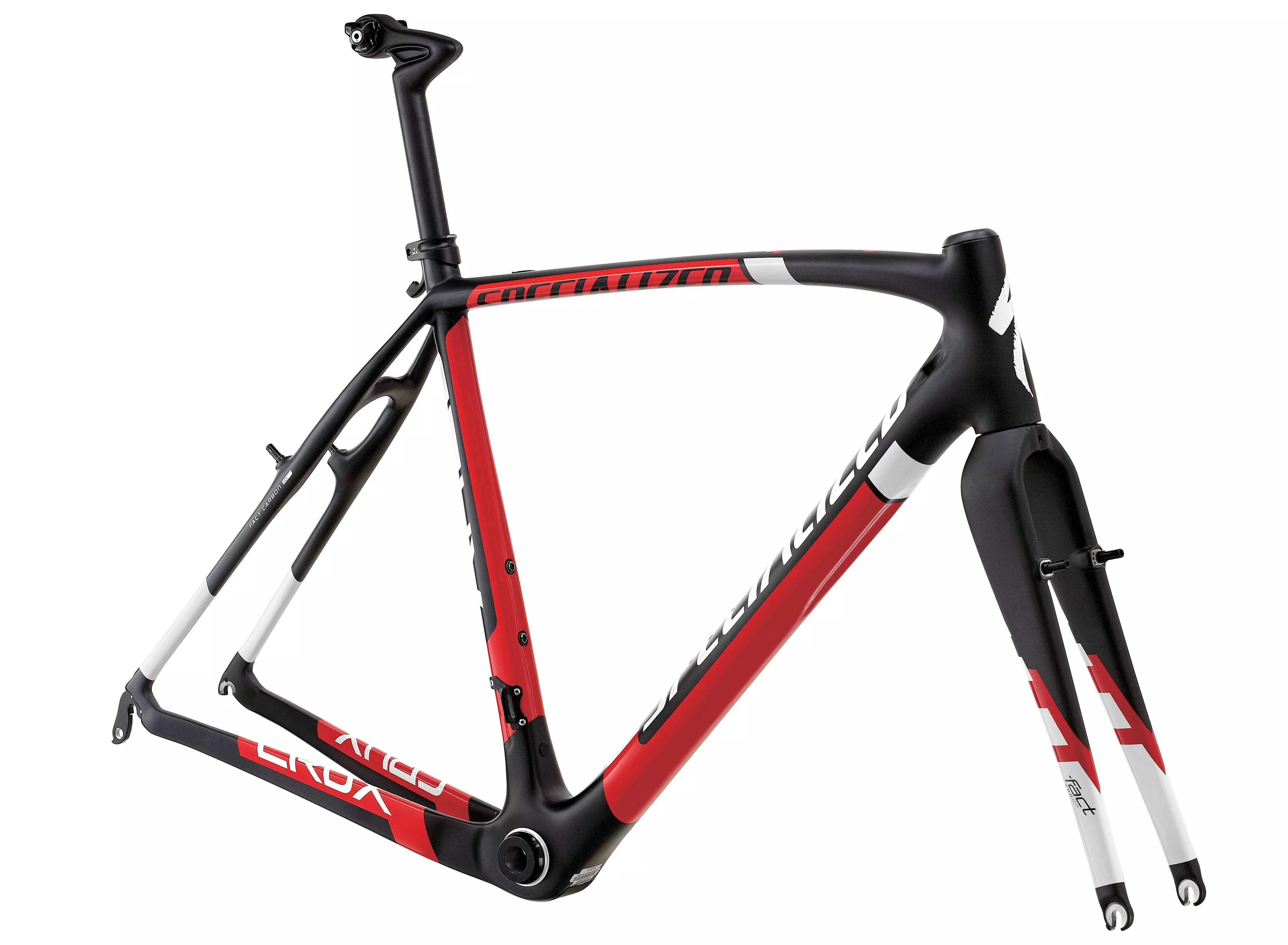

CruX Pro Canti Frameset
Part No.

CruX Pro Canti Frameset

Part No.  101425
CruX Pro Canti Frameset
Technical Specifications
The CruX Pro Canti frameset is a 'cross beast, with race-optimized geometry, OSBB, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice.
  • Specialized CG-R, FACT carbon seatpost is engineered for compliance and comfort
  • Specialized FACT 10r carbon frame w/ OSBB for equal parts stiffness and light weight
  • Specialized FACT carbon, canti-specific fork for precise handling and steering

Technical Specifications

SEATPOST Specialized CG-R, FACT carbon, single bolt, 27.2mm
HEADSET 1-1/8"" upper, 1-3/8” lower, stainless steel cartridge bearings, 8mm carbon cone spacer, w/ 25mm of carbon spacers
SEAT BINDER Alloy, 32.6mm
FORK Specialized FACT carbon
FRAME Specialized FACT 10r carbon, disc-specific, 1-3/8"" lower bearing, OSBB


Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Reach 366mm 369mm 376mm 379mm 384mm 387mm 393mm
Wheelbase 1008mm 1007mm 1009mm 1016mm 1022mm 1025mm 1031mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Seat-Tube Length, B-B Center to Top 470mm 490mm 510mm 530mm 550mm 570mm 600mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Top-Tube Length, Horizontal 510mm 516mm 537mm 548mm 560mm 570mm 587mm
Front-Center 593mm 593mm 595mm 601mm 606mm 609mm 615mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Fork Rake 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Trail 75mm 69mm 62mm 64mm 61mm 58mm 55mm
Stand-Over Height 725mm 754mm 773mm 790mm 807mm 825mm 849mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Post Length 300mm 300mm 300mm 350mm 350mm 350mm 350mm
