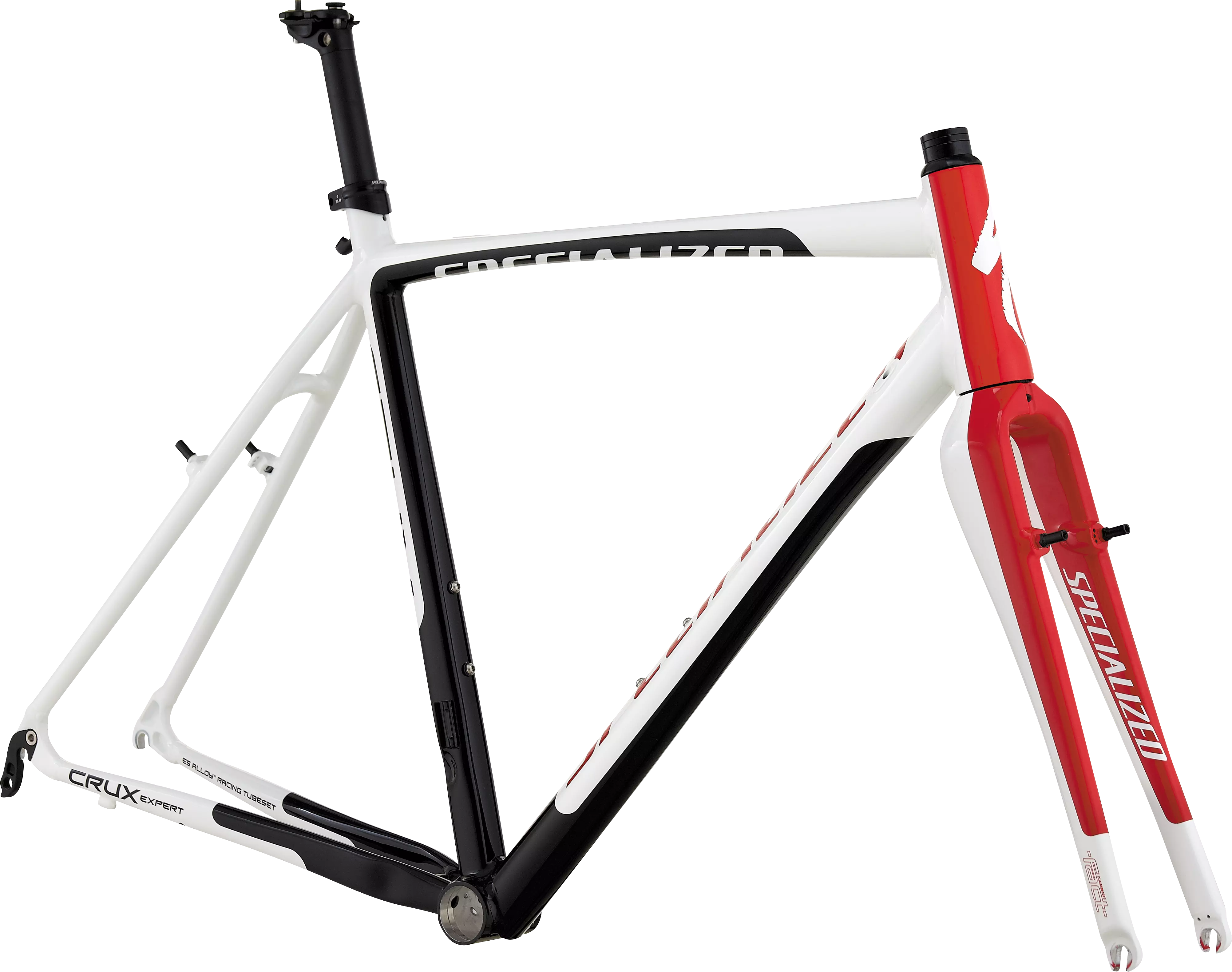

2012 CruX E5 OSBB Frameset

0 Reviews

The CruX is a cross beast, with race-optimized geometry, OSBB, tapered head tube,…

Color:

White/Black/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The CruX is a cross beast, with race-optimized geometry, OSBB, tapered head tube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice.

Cross racing-specific E5 alloy frame with tapered head tube, integrated headset, and OSBB is ultra-tough, shaped top tube provides easy shouldering
FACT carbon fork with tapered steerer provides best balance of strength, stiffness, and compliance for rough terrain
1-1/8" to 1-1/2" tapered headset with Co-Mo bearings promises lighter weight and low maintenance

Technical Specifications

FRAMESET

FRAME

Specialized E5 aluminum, fully manipulated tubing, smooth weld, semi-compact race design, shaped TT, integrated headset, 1-1/2"" lower bearing, internal cable routing, OSBB

FORK

Specialized FACT carbon legs, alloy steerer, 1-1/2"" lower bearing

HEADSET

1-1/8"" upper and 1-1/2"" lower Cr-Mo cartridge bearings integrated, w/ headset, 8mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Forged alloy, 31.8mm, brake stop

DRIVETRAIN

BOTTOM BRACKET

OS integrated, sealed bearings

COCKPIT

SEATPOST

Specialized Sport, alloy, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	46	49	52	54	56	58	61
Seat-Tube Angle	75.5°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	115mm	125mm	140mm	155mm	170mm	190mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	70.5°	71.5°	71.5°	72°	72.5°	73°
Chain-Stay Length	425mm	425mm	425mm	425mm	425mm	425mm	425mm
Top-Tube Length, Horizontal	510mm	516mm	537mm	549mm	557mm	570mm	587mm
Front-Center	593mm	595mm	595mm	601mm	606mm	609mm	615mm
Handle-Bar Width	400mm	400mm	420mm	420mm	440mm	440mm	440mm
Stand-Over Height	764mm	782mm	795mm	809mm	825mm	841mm	862mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	520mm	540mm	560mm	580mm	610mm
Fork Rake	51mm	51mm	51mm	49mm	49mm	49mm	49mm
B-B Drop	71mm	71mm	71mm	69mm	69mm	67mm	67mm
Stack	522mm	541mm	554mm	567mm	583mm	597mm	618mm
Reach	366mm	370mm	375mm	379mm	384mm	387mm	392mm
Trail	75mm	69mm	62mm	64mm	61mm	58mm	55mm
Wheelbase	1008mm	1009mm	1009mm	1016mm	1022mm	1025mm	1031mm
Crank Length	170mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	75mm	90mm	90mm	100mm	110mm	120mm
