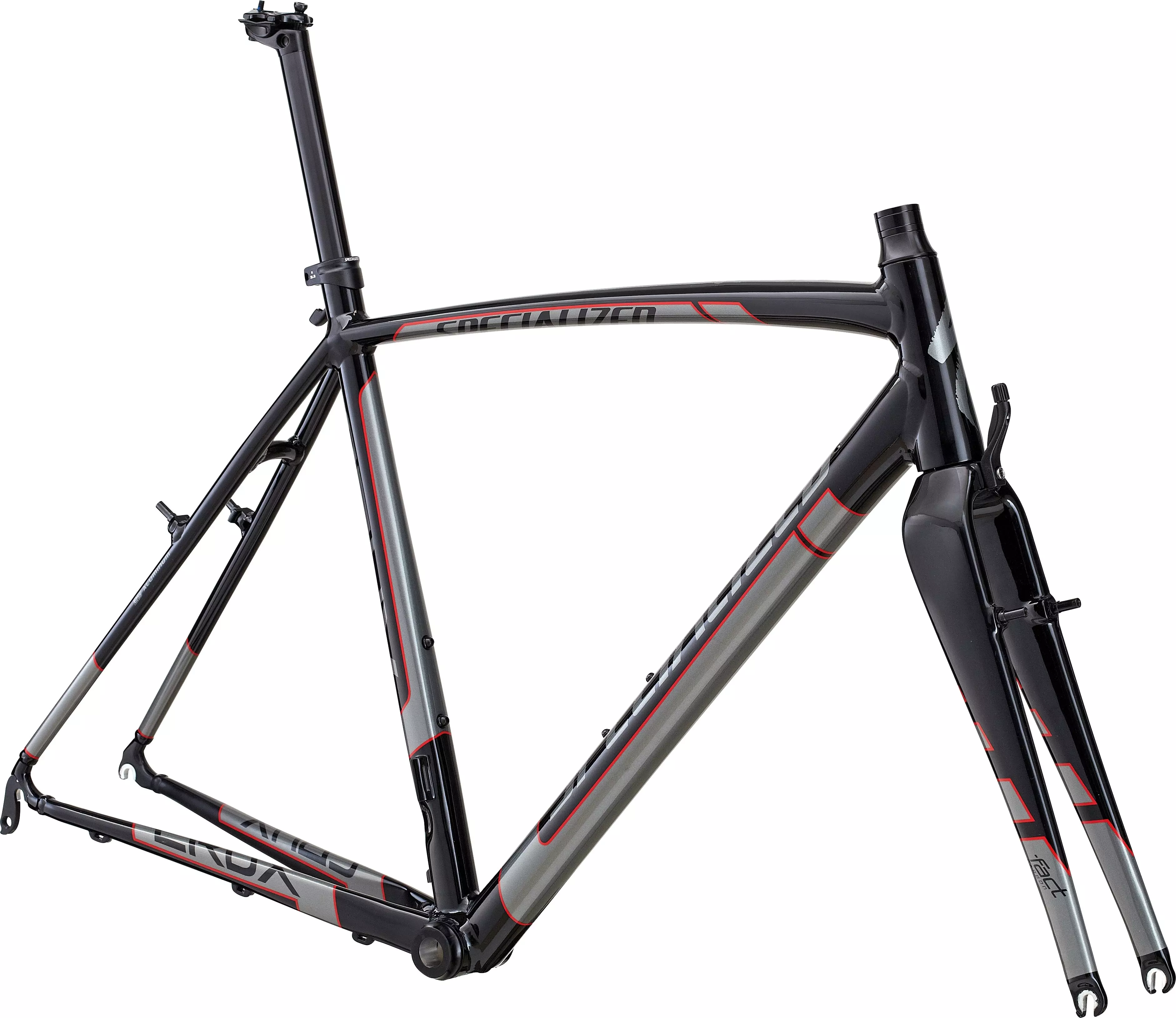

CruX E5 Frameset
Part No.

CruX E5 Frameset

Part No.  49778
CruX E5 Frameset
Technical Specifications
The CruX E5 is a 'cross beast, with race-optimized geometry, OSBB, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice.
  • E5 Premium Aluminum canti frameset, designed for the demands of 'cross racing, with OSBB and carbon-like stiffness and handling for the most demanding 'cross course
  • FACT carbon canti fork with tapered steerer provides ample tire clearance and the best balance of strength, stiffness, and compliance for cyclocross racing

Technical Specifications

SEAT BINDER Alloy, w/ brake stop, 32.6mm
HEADSET 1-1/8"" upper and 1-3/8"" lower integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm of spacers
FORK Specialized FACT carbon, canti-specific monocoque fork, carbon steerer and crown for 1-3/8"" lower bearing
FRAME Specialized E5 Premium Aluminum, canti-specific, fully manipulated tubing, semi-compact race design, shaped toptube, 1-3/8"" lower bearing, internal cable routing, integrated headset, OSBB
BOTTOM BRACKET OS integrated, sealed bearings
SEATPOST Specialized Sport, alloy, 27.2mm


Geometry Chart

CruX - Geometry

  460 490 520 540 560 580 610
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Reach 366mm 370mm 375mm 379mm 384mm 387mm 392mm
Wheelbase 1008mm 1009mm 1009mm 1016mm 1022mm 1025mm 1031mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 520mm 540mm 560mm 580mm 610mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Top-Tube Length, Horizontal 510mm 516mm 536mm 549mm 560mm 570mm 586mm
Front-Center 593mm 595mm 595mm 601mm 606mm 609mm 615mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Fork Rake 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Trail 78mm 72mm 65mm 67mm 64mm 61mm 57mm
Stand-Over Height 725mm 761mm 773mm 790mm 807mm 825mm 849mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Post Length 300mm 300mm 300mm 350mm 350mm 350mm 350mm
