CruX E5 Disc Single Frameset
Part No.

CruX E5 Disc Single Frameset

Part No.  106370
load-spinner
CruX E5 Disc Single Frameset
Overview
Technical Specifications
Geometry
Reviews

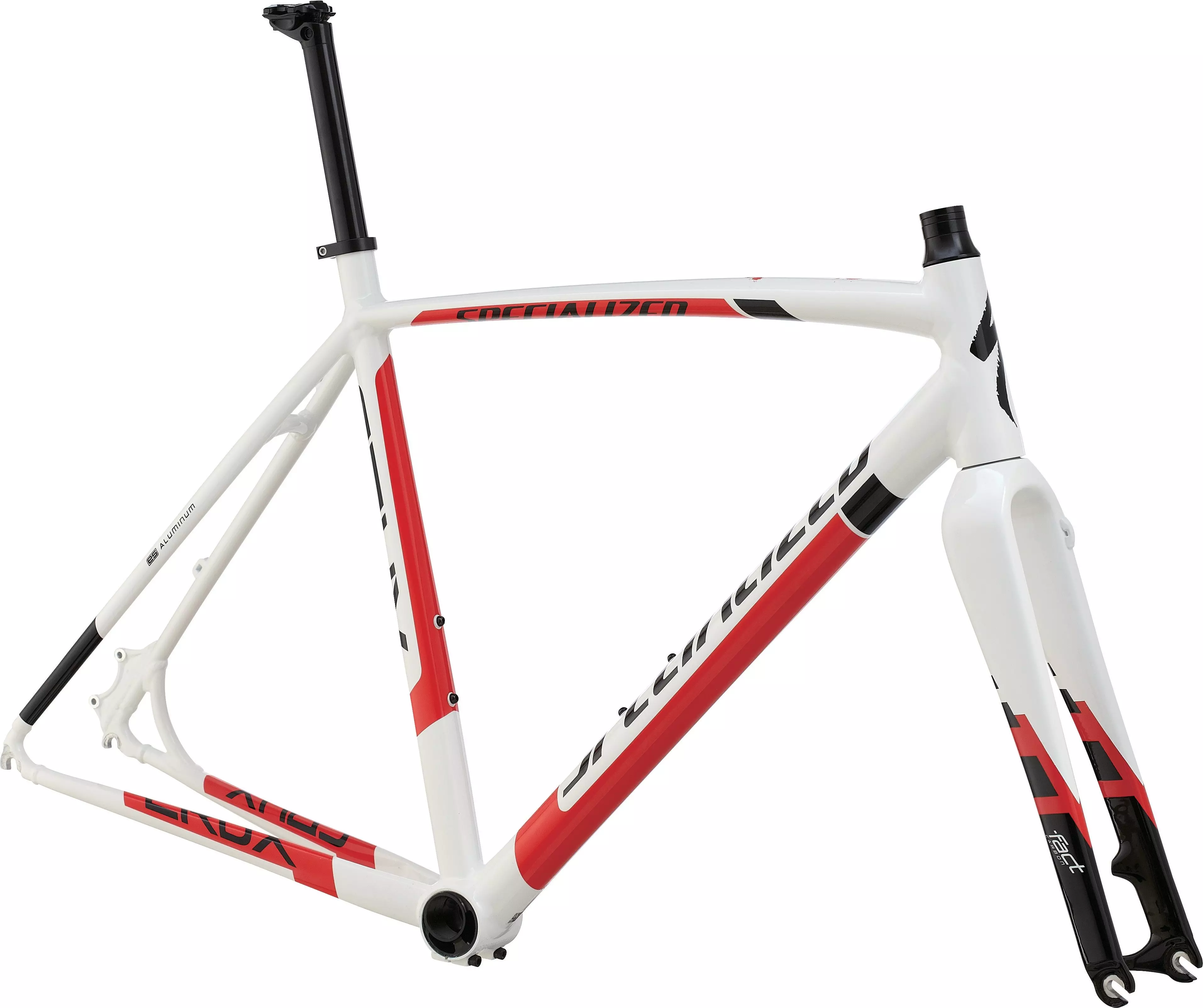

The Specialized CruX E5 Disc Single frameset is the ultimate in cyclocross simplicity. With disc brake mounts and its stiff, yet compliant, E5 Premium Aluminum construction, it's the perfect singlespeed foundation to start your dream build.
  • With a semi-compact race design, disc mounts, single-ring capability, and an E5 Premium Aluminum construction, the frame provides plenty of stiffness and agility for the tight turns and accelerations of cyclocross.
  • The Specialized Sport alloy seatpost provides plenty of stiffness for when you need to put down the power in a hurry.
  • The Specialized FACT carbon fork increases steering response and rider input—no matter the terrain.

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Hope, BB30
COCKPIT
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm
FRAMESET
HEADSET 1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon
FRAME Specialized E5 Premium Aluminum, fully-manipulated tubing, semi-compact race design, shaped top tube, 1-3/8"" lower bearing, internal cable routing, integrated headset, eccentric BB

Geometry

Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 300mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Reach 366mm 370mm 375mm 379mm 384mm 387mm 392mm
Stack 522mm 540mm 554mm 566mm 583mm 597mm 618mm
Wheelbase 1008mm 1009mm 1009mm 1016mm 1022mm 1025mm 1031mm
Bike Stand-Over Height 725mm 761mm 773mm 790mm 807mm 825mm 849mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Front-Center 593mm 595mm 595mm 601mm 606mm 609mm 615mm
Fork Rake/Offset 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Trail 76mm 70mm 63mm 65mm 62mm 59mm 56mm
B-B Height 279mm 279mm 279mm 281mm 281mm 283mm 283mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Fork Length (full) 400mm 400mm 400mm 400mm 400mm 400mm 400mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Tube Length 460mm 490mm 520mm 540mm 560mm 580mm 610mm
Top-Tube Length (horizontal) 501mm 510mm 534mm 547mm 559mm 569mm 587mm
