CruX Comp
$1,950.00
Part No.

CruX Comp

$1,950.00
Part No.  23530
load-spinner

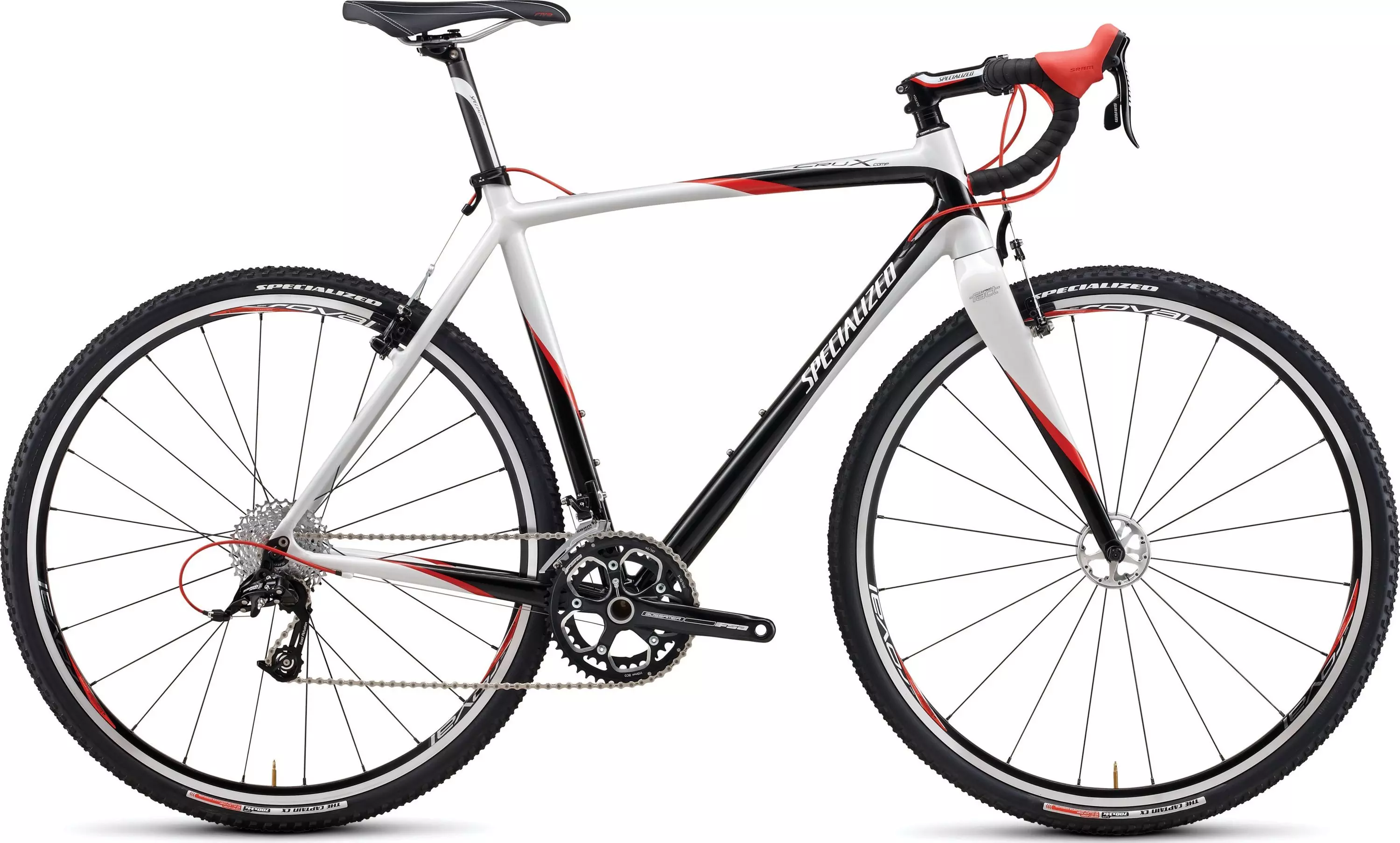

CruX Comp
Overview
Technical Specifications
Geometry
Reviews
Oversized bottom bracket with FSA Gossamer cranks help get every ounce of effort to the ground, and SRAM Apex 10-speed drivetrain keeps shifting smooth under adverse conditions.
  • Bulletproof Pavé wheelset powers through dirt with its sturdy alloy rims and high-flange hubs
  • FACT carbon fork with tapered steerer provides best balance of strength, stiffness, and compliance for rough terrain
  • Specialized Comp CX short-drop aluminum handlebars promise better maneuverability and confidence on the cross course
  • Cross racing-specific E5 alloy frame with integrated headset is ultra tough and quick, with shaped top tube for easy shouldering
  • New SRAM Apex 10-speed shifters employ "double tap" technology for simple, intuitive shifting and reach adjustment for perfect fit

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 31.8mm
HEADSET 1 1/8 upper and 1 1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer with 20mm of spacers
FORK S-Works FACT carbon legs, alloy crown and steerer, 1.5"" lower bearing
FRAME Specialized E5 aluminum, fully manipulated tubing, smooth weld, semi-compact race design, shaped TT, 1.5"" lower bearing, internal cable routing, integrated headset, OSBB
WHEELS
FRONT HUB Roval Pavé, 20h, cold forged aluminum five-spoke high flange, adjustable aluminum axle, Roval QR
REAR WHEEL Roval Pavé
REAR HUB Roval Pavé, 24h, cold forged aluminum five-spoke high flange, adjustable aluminum axle, Roval QR
INNER TUBES Standard presta valve
SPOKES Stainless 14g
RIMS Roval Pavé, aluminum, anti-pinch rim edge, sleeve joint, w/ stainless steel eyelets
FRONT TIRE Specialized Captain CX Sport, 700x34c, wire bead, 60TPI
REAR TIRE Specialized Captain CX Sport, 700x34c, wire bead, 60TPI
FRONT WHEEL Roval Pavé
DRIVETRAIN
BOTTOM BRACKET With crankset
CHAIN KMC X10 L CP
CRANKSET FSA Gossamer
CASSETTE SRAM, 10-speed, 11x32t
SHIFT LEVERS SRAM Apex
FRONT DERAILLEUR SRAM Apex
CHAINRINGS FSA, 46 x 36T
REAR DERAILLEUR SRAM Apex
COCKPIT
SADDLE Body Geometry Riva Road, w/ steel rails
TAPE Specialized S-Wrap w/ 2.5 gel pads
SEATPOST Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
HANDLEBARS Specialized CX Comp 6061 alloy, short drop
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS SRAM Rival
FRONT BRAKE Tektro wide canti
REAR BRAKE Tektro narrow canti
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

CruX - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 90mm 100mm 110mm 120mm
Crank Length 170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 400mm 420mm 420mm 440mm 440mm 440mm
Wheelbase 1008mm 1009mm 1009mm 1016mm 1022mm 1025mm 1031mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 520mm 540mm 560mm 580mm 610mm
Head-Tube Length 100mm 115mm 125mm 140mm 155mm 170mm 190mm
Top-Tube Length, Horizontal 510mm 516mm 537mm 549mm 560mm 570mm 587mm
Front-Center 593mm 595mm 595mm 601mm 606mm 609mm 615mm
Head-Tube Angle 69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°
Fork Rake 51mm 51mm 51mm 49mm 49mm 49mm 49mm
Trail 75mm 69mm 62mm 64mm 61mm 58mm 55mm
Stand-Over Height 725mm 761mm 773mm 790mm 807mm 825mm 849mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm 425mm 425mm
Seat-Tube Angle 75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71mm 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
