Crosstrail
$510.00
Part No.

Crosstrail

$510.00
Part No.  23578
load-spinner
Crosstrail
Overview
Technical Specifications
Geometry
Reviews

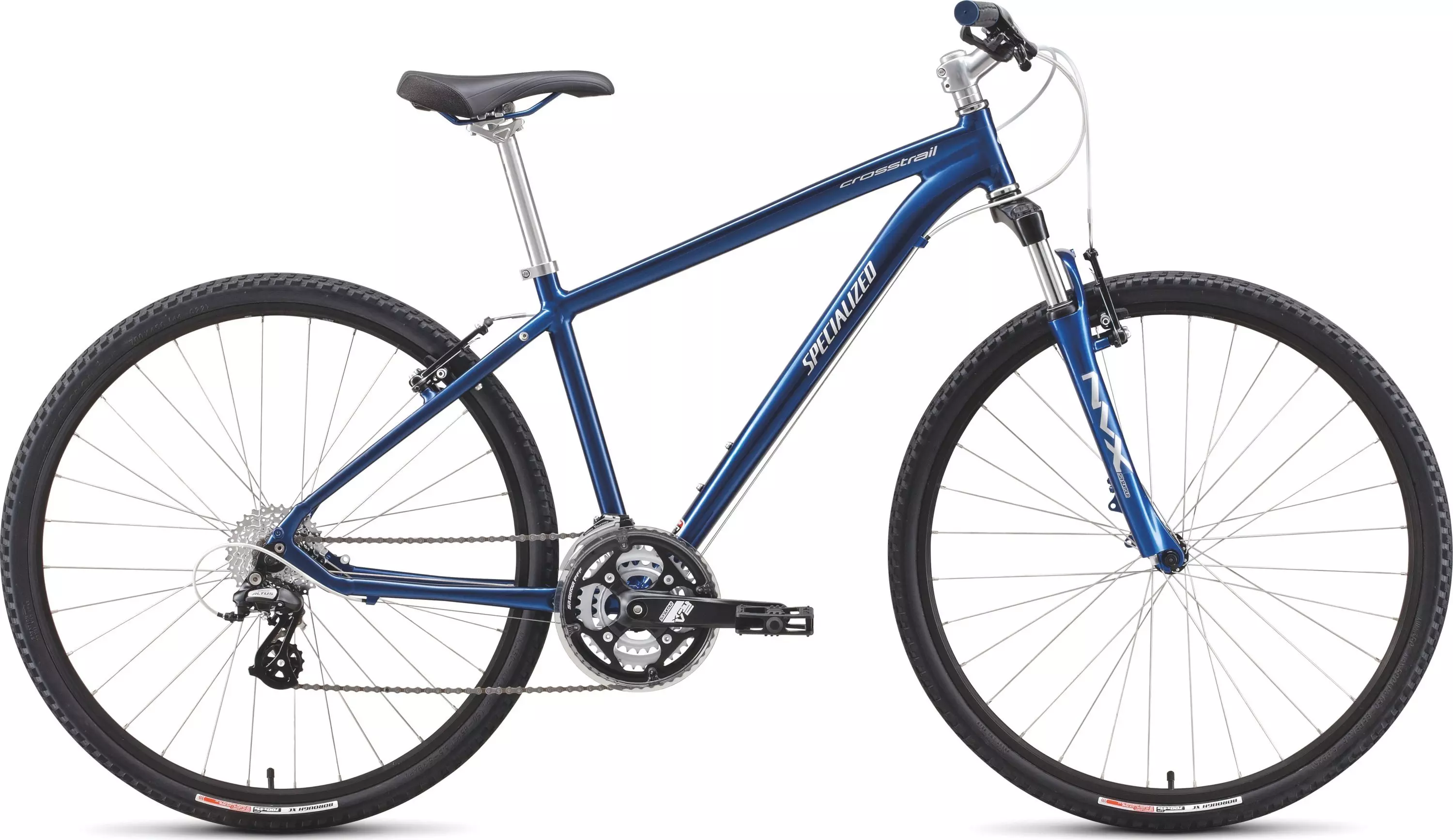

With elements of both a road bike and mountain bike, the Crosstrail is equally adept at the weekday commute and weekend adventure.
  • Durable, double-walled 700c alloy rims can handle varied terrain
  • Alloy V-brakes provide easily adjustable, uncomplicated stopping power
  • Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
  • 75mm-travel coil-sprung fork with alloy lowers allows this hybrid to go off-road with ease
  • BG Crosstrail saddle has front/rear bumpers for on and off-road durability and ample padding for comfort
  • Smooth-welded A1 Premium Aluminum frame for lightweight confidence on any surface, with fender/rack braze-ons for versatility
  • Gentle riserbar encourages a comfortable and confident athletic position, and BG Contour MTB grips keep hands pain-free and loose on long rides

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy
HEADSET Ahead, loose ball, Cr-Mo cups, 25.5mm stack
FRAME Specialized A1 Premium Aluminium w/ smooth welding, w/ fender and rack braze-ons, forged drop outs w/ kickstand mount
WHEELS
FRONT HUB Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR
REAR HUB Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
RIMS Alloy double wall, 32h
FRONT TIRE Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
REAR TIRE Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN KMC Z7
CRANKSET SR SunTour Square taper spline, replaceable outer ring, w/ chainguard
CASSETTE SRAM PG-730, 7-speed, 12-32t
SHIFT LEVERS Shimano, SL-M310, 7-speed rapid fire
FRONT DERAILLEUR Shimano FD-TX51, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48 x38 x 28T w/ chainguard
REAR DERAILLEUR Shimano Altus, 7-speed
COCKPIT
SADDLE Specialized XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Alloy, 2-bolt head, 12.5mm offset, 27.2mm
GRIPS BG Contour, closed end, 132mm
HANDLEBARS Hi-Ten riser bar, 25.4mm, 32mm rise, 640mm wide, 8 degree back sweep, 6 degree up
STEM Melt-forged alloy, 20 degree rise, 25.4mm clamp
BRAKES
BRAKE LEVERS ""V""-brake, Linear pull
FRONT BRAKE Die cast, alloy ""V"" brake, 60mm 1pc. pad
REAR BRAKE Die cast, alloy ""V"" brake, 60mm 1pc. pad
ACCESSORIES
PEDALS Composite plastic body, loose ball w/ reflectors
SUSPENSION
FORK SR SunTour SF11-NVX-700C, alloy lower, 28mm stanchions, coil spring
REAR SHOCK ---

Geometry

Geometry Chart

CrossTrail - Geometry

S M L XL XXL
  S M L XL XXL
Reach 405mm 417mm 425mm 431mm 429mm
Stack 606mm 618mm 627mm 639mm 653mm
Chainstay Length 459mm 459mm 459mm 459mm 459mm
Top Tube Length (Actual) 569mm 578mm 585mm 597mm 612mm
Ground-Top 898mm 910mm 919mm 931mm 945mm
Top Tube Length (Horizontal) 579mm 594mm 605mm 620mm 635mm
Head Tube Angle - Low Setting 69.5° 70° 70° 70.5° 70.5°
Standover Height 744mm 779mm 804mm 838mm 869mm
Wheel Base 1111mm 1121mm 1133mm 1138mm 1141mm
Head Tube Height 90mm 100mm 110mm 120mm 135mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 74° 73.5° 72.5°
Seat Tube Length - Center to Top 394mm 445mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 292mm 292mm 292mm 292mm 292mm
