Crosstrail Sport
$580.00
Part No.

Crosstrail Sport

$580.00
Part No.  22782
load-spinner
Crosstrail Sport
Overview
Technical Specifications
Geometry
Reviews

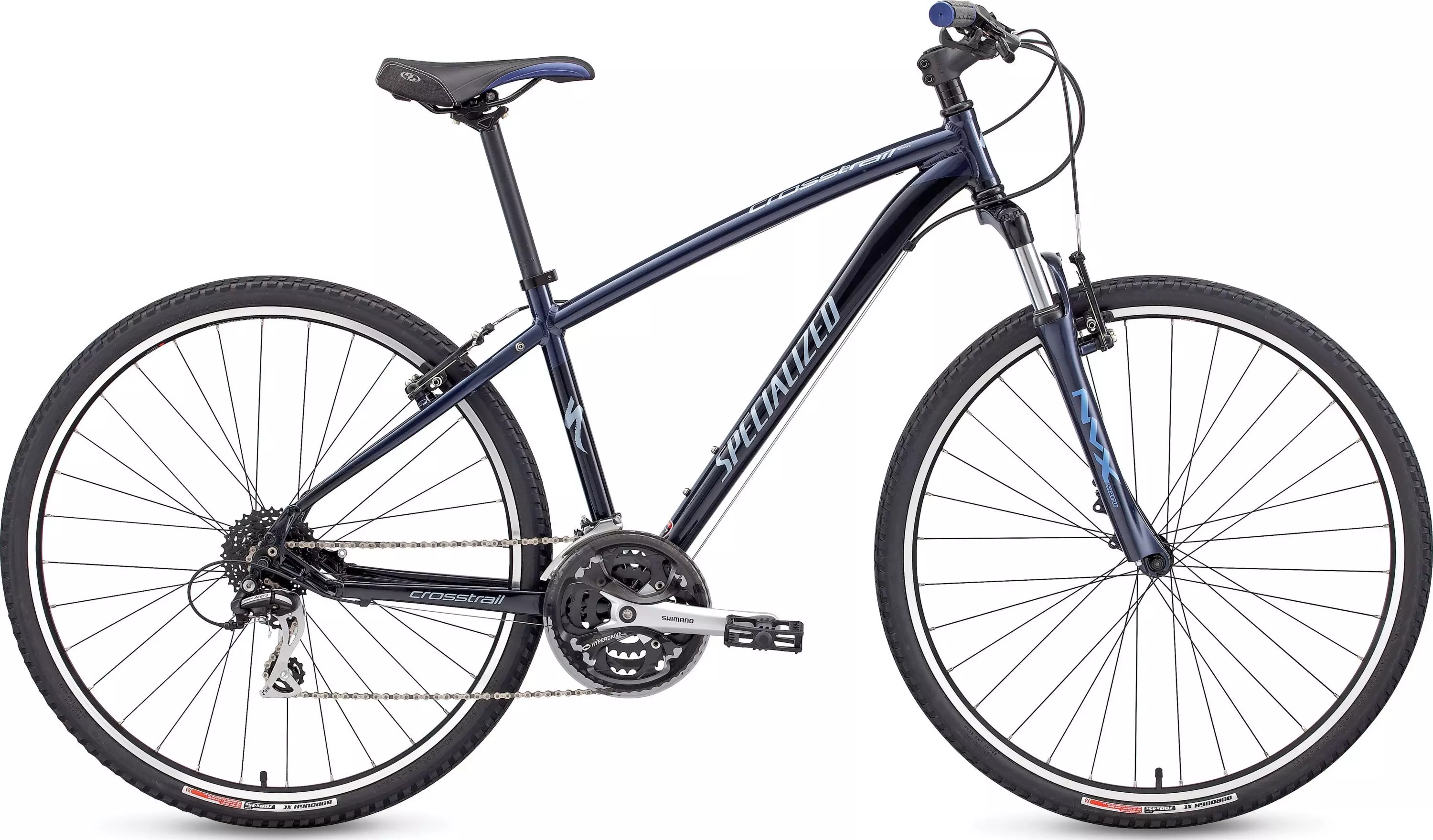

As the only true hybrid bike on the market, our Crosstrail™ owns the title of "singletrack-capable commuter bike." For riders who want one bike for all terrain, with the versatility to handle road, mountain and everything in between, the Crosstrail's fast-rolling 700c tires and true MTB drivetrain will cover all your bases.
  • Double-walled 700c rims with machined sidewalls for consistent braking
  • Shimano Acera 8-speed rear derailleur provides sure-fire shifts every time
  • 75mm-travel coil-sprung fork with mechanical lockout allows this hybrid to go off-road with ease
  • High-volume Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
  • A1 Premium Aluminum frame with ORE down tube and low standover for lightweight confidence on both dirt and pavement

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy
HEADSET 1-1/8"" threadless, sealed loose ball bearings
FRAME Crosstrail A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable hanger, integrated kickstand mount, chainstay disc mount
WHEELS
FRONT HUB Forged alloy, double sealed, ground race, QR
REAR HUB Forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Alex Crosstrail, 700c, alloy double wall w/ machine sidewalls, 32h
FRONT TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
REAR TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN KMC Z8, w/ reusable Missing Link
CRANKSET Shimano FC-M361-8 w/ chainguard
CASSETTE SRAM PG-820, 8-speed, 11-32t
SHIFT LEVERS Shimano SL-MC40, 8-speed, rapid fire
FRONT DERAILLEUR Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48 x 38 x 28T w/ chainguard
REAR DERAILLEUR Shimano Acera, 8-speed
COCKPIT
SADDLE Specialized XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
GRIPS Specialized Enduro, closed end, 130mm
HANDLEBARS Alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
STEM Melt Forged alloy, 2-bolt, 25.4mm, 15 degree rise
BRAKES
BRAKE LEVERS V-Brake, Linear pull
FRONT BRAKE Alloy linear pull, 1pc. pad
REAR BRAKE Alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Composite platform body, sealed loose ball bearings
SUSPENSION
FORK SR SunTour SF10-NVX-MLO 700C, alloy lower, 75mm travel, 28mm stanchions, coil spring, mechanical lock-out

Geometry

Geometry Chart

CrossTrail - Geometry

  SM MD LG XL
Wheelbase 1095mm 1105mm 1121mm 1125mm
Seat-Tube Length, B-B Center to Top 381mm 432mm 483mm 533mm
Head-Tube Length 90mm 100mm 110mm 135mm
Top-Tube Length, Horizontal 575mm 590mm 605mm 635mm
Front-Center 648mm 658mm 673mm 681mm
Head-Tube Angle 69.5° 70° 70° 70.5°
Fork Rake 38mm 38mm 38mm 38mm
Trail 91mm 88mm 88mm 85mm
Stand-Over Height 741mm 778mm 812mm 844mm
Chain-Stay Length 455mm 455mm 455mm 455mm
Seat-Tube Angle 74° 74° 74° 72.5°
B-B Drop 65mm 65mm 65mm 65mm
Seat-Post Length 0mm 0mm 0mm 0mm
