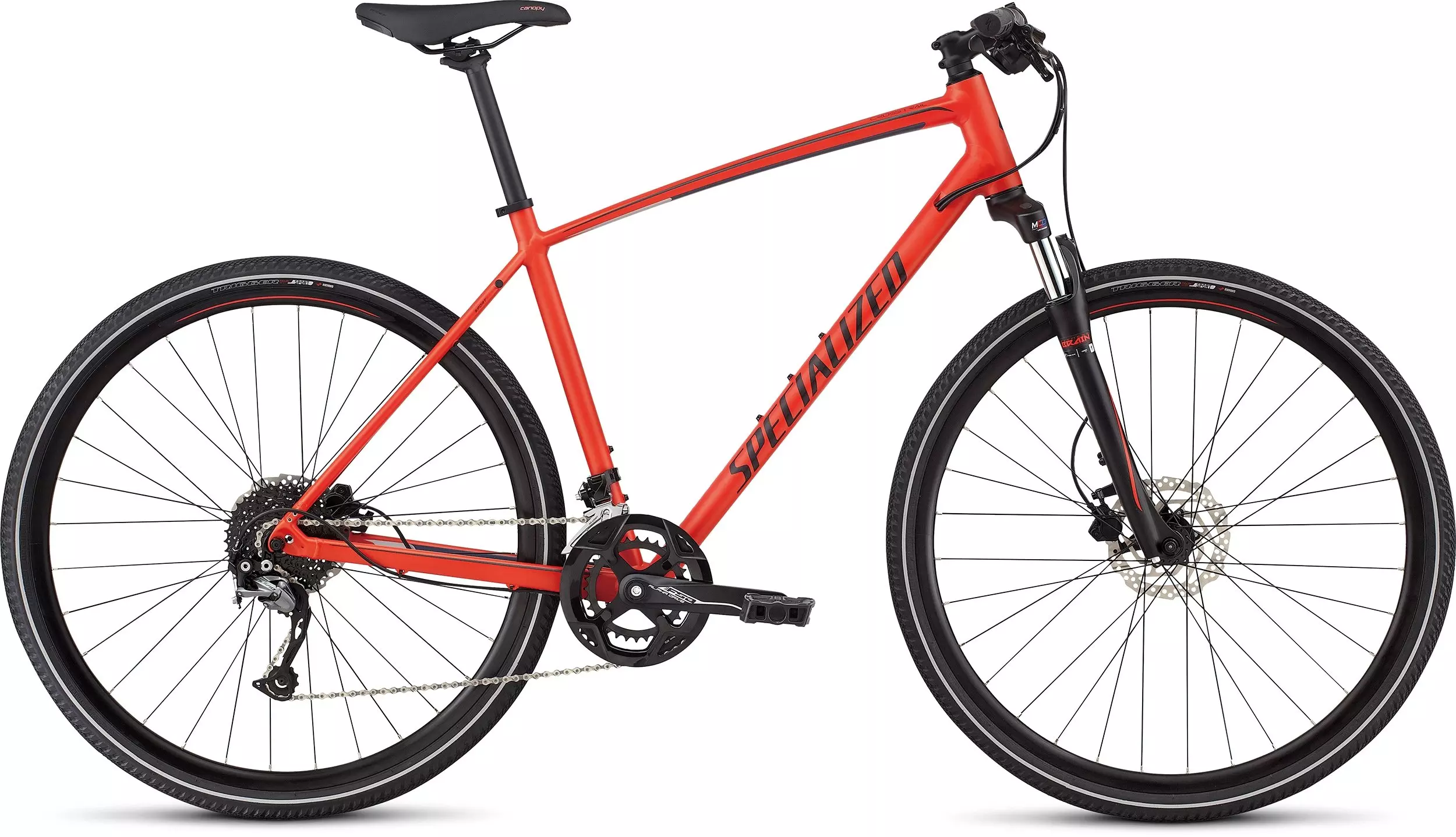

Your fitness is important—that's why our Crosstrail Sport focuses on seamlessly blending comfort, versatility, and efficiency. It comes equipped with a suspension fork with our Fitness Brain technology that can tell the difference between pedaling inputs and trail bumps, so you won't be wasting any energy on your climbs. And to build on this blend of comfort and speed, the frame is built from respectably light and rugged A1 SL Premium aluminum with a geometry that's made to fit just right from the minute you get on the bike. Add in a mix of workhorse components from the likes of Shimano and microSHIFT, powerful Tektro hydraulic disc brakes, and rack/fender mounts, and we're sure that you'll be mixing it up quite a bit on your road to hitting your goals.
  • Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The A1 SL Premium aluminum construction pairs weight savings with rugged durability, while the rack, fender, and disc mounts give you an incredibly versatile package.
  • An SR Suntour NEX fork w/ Fitness Brain technology features 55mm of coil-sprung travel that takes the sting out of bumpy terrain, while our Fitness Brain technology promotes more climbing and pedaling efficiency.
  • Braking duties are handled by Tektro Vela hydraulic disc brakes to ensure effective, consistent, and reliable power through any kind of terrain or condition.

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET FSA BB-7420ST
CRANKSET FSA Alpha Drive, forged 6061 aluminum
SHIFT LEVERS microSHIFT MTB, 9-speed
CASSETTE Sunrace, 9-speed, 11-36t
FRONT DERAILLEUR microSHIFT, 31.8mm clamp, 9-speed, MTB double
CHAINRINGS 44/32T w/chainguard
REAR DERAILLEUR Shimano Alivio, Shadow design, SGS cage, 9-speed
WHEELS
FRONT HUB Specialized Center Lock, loose ball bearings, 32h, 9mm QR
REAR HUB Shimano Center Lock disc, 8-/9-/10-speed freehub, 135mm axle, 32h
SPOKES Stainless, 14g
RIMS 700c disc, 6061 aluminum double-wall
FRONT TIRE Trigger Sport Reflect, 700x38mm, 60TPI, wire bead
REAR TIRE Trigger Sport Reflect, 700x38mm, 60TPI, wire bead
COCKPIT
SADDLE Canopy Sport, steel rails
STEM 3D forged aluminum, 7-degree rise, 31.8mm clamp
HANDLEBARS Specialized, double-butted alloy, 9-degree backsweep, 31.8mm
GRIPS Body Geometry Flow Set Control Grips, lock-on
BRAKES
FRONT BRAKE Tektro Vela, hydraulic disc, post mount, organic pads, 160mm rotor
REAR BRAKE Tektro Vela, hydraulic disc, flat mount, organic pads, 160mm rotor
ACCESSORIES
PEDALS Specialized Fitness platform
FRAMESET
FRAME Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat mount disc, rack & Plug + Play mounts
* Specifications are subject to change without notice

Geometry

Geometry Chart

CrossTrail - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 60mm 70mm 80mm 90mm
Seatpost Length 350mm 350mm 350mm 350mm
Saddle Width 155mm 155mm 155mm 155mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 390mm 400mm 412mm 426mm
Stack 594mm 611mm 630mm 648mm
Wheelbase 1067mm 1078mm 1096mm 1117mm
Seat-Tube Length, B-B Center to Top 400mm 450mm 500mm 550mm
Head-Tube Length 110mm 125mm 145mm 165mm
Top-Tube Length, Horizontal 572mm 587mm 604mm 624mm
Front-Center 630mm 641mm 655mm 680mm
Head-Tube Angle 70° 70.5° 70.5° 70.5°
Stand-Over Height 740mm 776mm 813.3mm 850mm
Fork Rake 42mm 42mm 42mm 42mm
Trail 87mm 84mm 84mm 84mm
Chain-Stay Length 445mm 445mm 445mm 445mm
Seat-Tube Angle 73° 73° 73° 73°
B-B Drop 65mm 65mm 65mm 65mm
