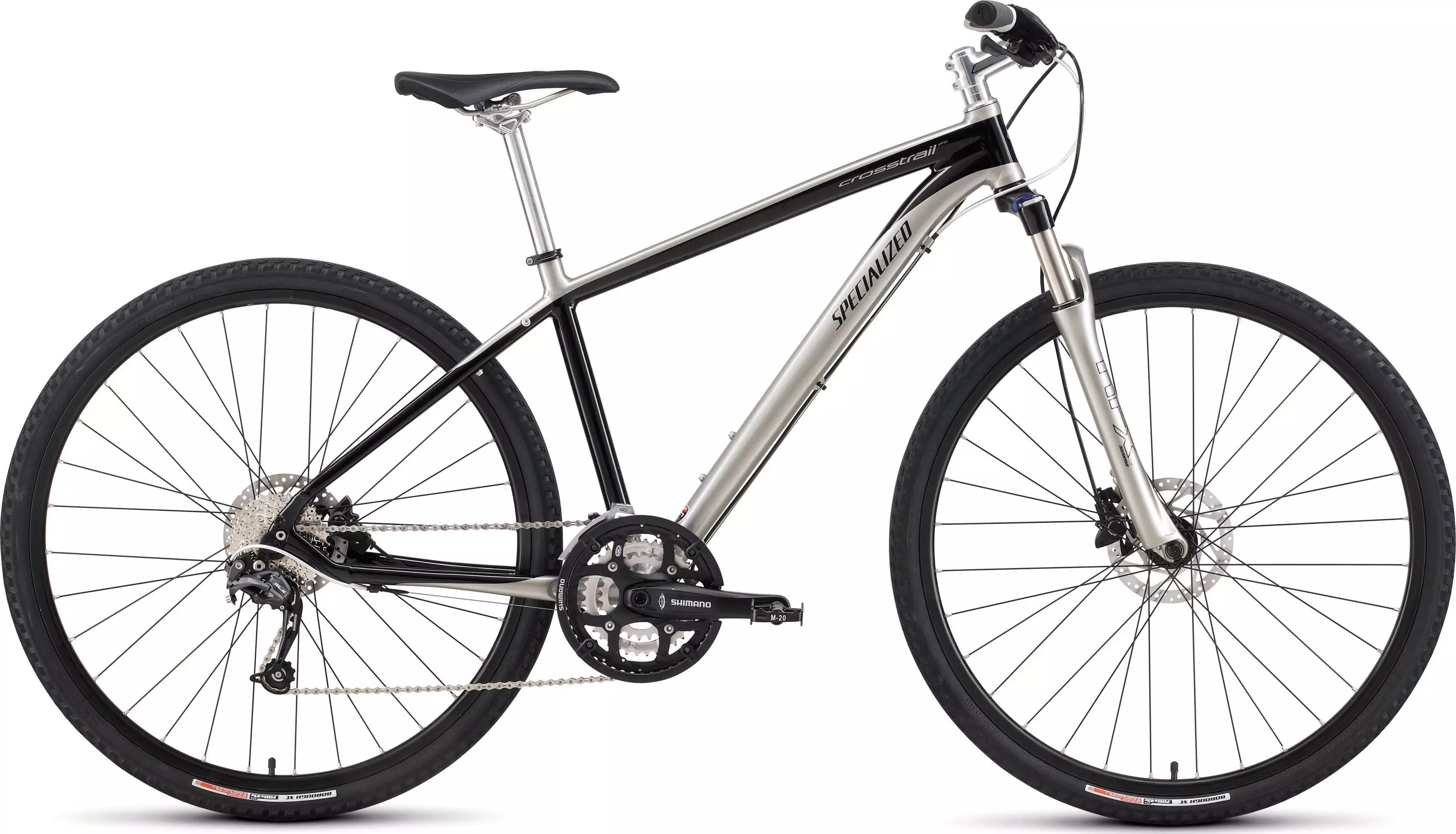

Crosstrail Pro Disc
Overview
Technical Specifications
Geometry
Reviews
The double-butted A1 Premium Aluminum frame of the Crosstrail Pro Disc saves weight, and the up-spec'd Shimano drivetrail adds more performance.
  • Double-walled, eyeletted 700c rims are durable and low maintenance
  • Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
  • Butted alloy riserbar is stiff and light enough to navigate tight singletrack without sacrificing comfort
  • Shimano Deore SLX Shadow 9-speed rear derailleur for high-end shifting performance and improved clearance
  • Shimano dual-piston hydraulic disc brakes assure solid, worry-free braking performance under any conditions
  • Double-butted A1 Premium Aluminum frame for lightweight confidence on any surface, with fender/rack braze-ons for versatility
  • 75mm-travel coil-sprung fork with hydraulic lockout, magnesium lowers, and alloy steerer creates a lighter weight and more responsive bike
  • Body Geometry Crosstrail Pro saddle with hollow Cr-Mo rails has front/rear bumpers for on and off-road durability and ample padding for comfort

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy
HEADSET Ahead, cartridge bearings
FRAME Specialized A1 Premium Aluminium double-butted w/ smooth welding, w/ fender and rack braze-ons, forged drop outs w/ kickstand mount
WHEELS
FRONT HUB Machined disc side flange and mount, sealed bearings, dual lock nuts w/ 19mm contact side
REAR HUB Machined disc mount & flanges, doubel sealed, ground race, dual lock nuts w/ 19mm contact side
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
RIMS Alloy double wall, pinned, disc mount w/ eyelets, 32h
FRONT TIRE Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
REAR TIRE Specialized Borough XC Sport, 700x45c, 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Octalink spline 68mm
CHAIN KMC X9L w/ reusable Missing Link
CRANKSET Shimano FC-M521, replaceable rings, w/ chainguard
CASSETTE Shimano 9-speed, 11-34t
SHIFT LEVERS Shimano Deore, 9-speed rapid fire
FRONT DERAILLEUR Shimano Deore, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48A x 36A x 26T w/ chainguard
REAR DERAILLEUR Shimano Deore SLX
COCKPIT
SADDLE Specialized XC Pro, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Alloy, 2-bolt head, 12.5mm offset, 27.2mm
GRIPS BG Contour, closed end, 132mm
HANDLEBARS Butted alloy riser bar, 31.8mm, 25mm rise, 8 degree back sweep, 6 degree up
STEM 3D forged alloy, 7 degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Hydraulic lever, included w/brake
FRONT BRAKE Shimano BL-M505 hydraulic disc brake, dual piston w/ 160mm rotor
REAR BRAKE Shimano BL-M505 hydraulic disc brake, dual piston w/ 160mm rotor
ACCESSORIES
PEDALS Super light alloy, LSL sealed bearings w/ reflectors
SUSPENSION
FORK SR SunTour SF11-NRX-D-LO, mag. lower, Cr-Mo stanchions, hydraulic LO
REAR SHOCK ---

Geometry

Geometry Chart

CrossTrail - Geometry

S M L XL XXL
  S M L XL XXL
Reach 405mm 417mm 425mm 431mm 429mm
Stack 606mm 618mm 627mm 639mm 653mm
Chainstay Length 459mm 459mm 459mm 459mm 459mm
Top Tube Length (Actual) 568mm 576mm 584mm 597mm 615mm
Ground-Top 878mm 889mm 899mm 910mm 924mm
Top Tube Length (Horizontal) 579mm 594mm 605mm 620mm 635mm
Head Tube Angle - Low Setting 69.5° 70° 70° 70.5° 70.5°
Standover Height 741mm 775mm 801mm 834mm 865mm
Wheel Base 1111mm 1121mm 1134mm 1138mm 1141mm
Head Tube Height 90mm 100mm 110mm 120mm 135mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 74° 73.5° 72.5°
Seat Tube Length - Center to Top 394mm 445mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 292mm 292mm 292mm 292mm 292mm
