Crosstrail Disc
Part No.

Crosstrail Disc

Part No.
Crosstrail Disc
Technical Specifications

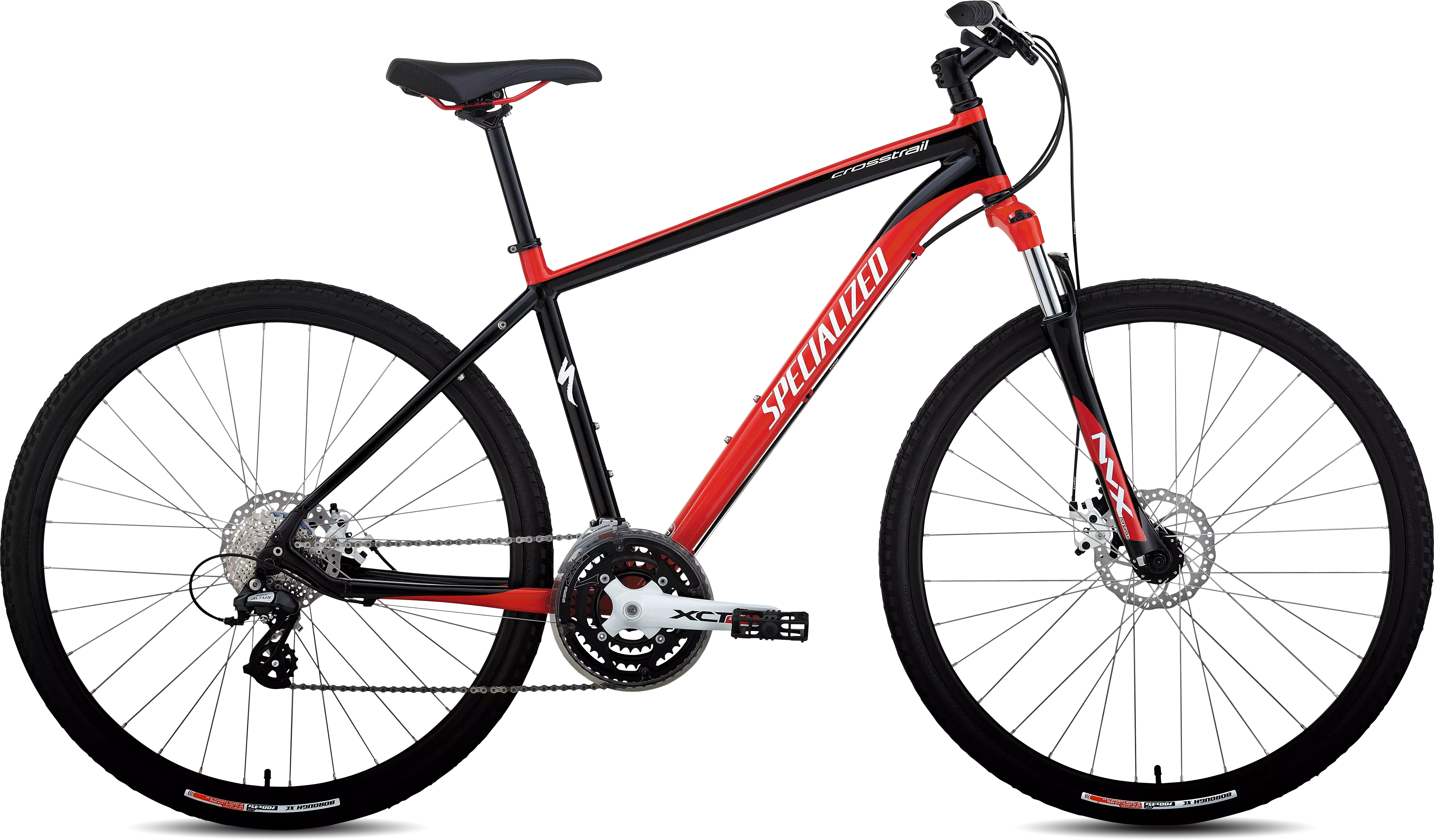

Built for efficient recreation, exploration and fitness, the Crosstrail is made for how, where and why you ride. The Crosstrail Disc features reliable components like the 75mm-travel SR Suntour fork, Tektro Novela disc brakes and Specialized Borough XC Sport tires.
  • Smooth-welded A1 Premium Aluminum frame for lightweight confidence on any surface, with fender/rack braze-ons for versatility
  • 75mm-travel coil-sprung SR Suntour fork with alloy lowers allows this hybrid to go off road with ease
  • Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
  • Tektro Novela mechanical disc brakes for solid braking and easy maintenance under any conditions
  • Specialized Body Geometry Crosstrail saddle has front/rear bumpers for on and off-road durability and ample padding for comfort

Technical Specifications

CHAIN KMC X-8, 8-speed, reusable Missing Link
BOTTOM BRACKET Square taper, cartridge bearing, double crank stop
CRANKSET SR Suntour, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard
FRONT DERAILLEUR Shimano FDM-191, 31.8mm clamp, top-swing, dual-pull
SHIFT LEVERS Shimano SL-M310, 8-speed, Rapidfire
CASSETTE Shimano 8-speed, 11-32t
CHAINRINGS 44/38/28, w/ chainguard
REAR DERAILLEUR Shimano Altus, 8-speed, top normal
FORK SR Suntour SF11-NVX-DS, steel steer, alloy lower, 28mm stanchions, coil spring, Intl std disc mount, 75mm travel
SADDLE Specialized Body Geometry Crosstrail, steel rails, front and rear bumpers, 143mm width
SEATPOST Alloy, 2-bolt head, 12.5mm offset, 27.2mm
STEM Melt-forged alloy, 4-bolt, 20º rise, 25.4mm clamp
HANDLEBARS Hi-Ten riser bar, 640mm wide, 35mm rise, 8º backsweep, 4º upsweep, 25.4mm
GRIPS Specialized Body Geometry XCT Men's, dual compound, Kraton rubber, closed end, 132mm
FRONT HUB Double-sealed, dual-lock nuts w/ 17mm contact side, round disc mount only, 5mm QR
REAR HUB Loose ball, double-sealed, ground race, dual lock nuts w/ 19mm contact side, round disc mount, QR
INNER TUBES Schrader valve
SPOKES Stainless, 2.0mm (14g)
RIMS Alex Disc alloy 700c, double-wall w/ CNC side walls, pinned, 32h
FRONT TIRE Specialized Borough XC Sport, 60 TPI, wire bead, 700x45c
REAR TIRE Specialized Borough XC Sport, 60 TPI, wire bead, 700x45c
FRONT BRAKE Tektro Novela mechanical disc brake, dual pad angle adj., post mount, 160mm rotor
BRAKE LEVERS Tektro, die cast lever, included w/ brake
REAR BRAKE Tektro Novela mechanical disc brake, dual pad angle adj., post mount, 160mm rotor
PEDALS Composite plastic body, loose ball w/ reflectors
HEADSET FSA Ahead, 1-1/8"" cold forged Cr-Mo cups, loose ball
SEAT BINDER 31.8mm, extruded and machined alloy
FRAME Specialized A1 Premium Aluminum, smooth welding, w/ fender and rack braze-ons, forged dropouts, kickstand mount


Geometry Chart

- Geometry

  15.5 17.5 19.0 21.0 23.0
Reach 405mm 417mm 425mm 431mm 431mm
Stack 606mm 618mm 626mm 637mm 652mm
Bottom Bracket Drop 65mm 65mm 65mm 65mm 65mm
Chainstay Length 455mm 455mm 455mm 455mm 455mm
Seat Tube Angle 73.5° 73.5° 73.5° 73° 73°
Head Tube Angle 69.5° 70° 70° 70.5° 70.5°
Head Tube Length 90mm 100mm 110mm 120mm 135mm
Top Tube Length (Actual) 566mm 575mm 589mm 602mm 607mm
Top Tube Length (Horizontal) 584mm 600mm 617mm 626mm 628mm
Seat Tube Length, Center to Top 393.7mm 444.5mm 482.6mm 533.4mm 584.2mm
Standover Height 744mm 779mm 804mm 838mm 869mm
Wheel Base 1093mm 1107mm 1119mm 1123mm 1138mm
Bottom Bracket Height 292mm 292mm 292mm 292mm 292mm
